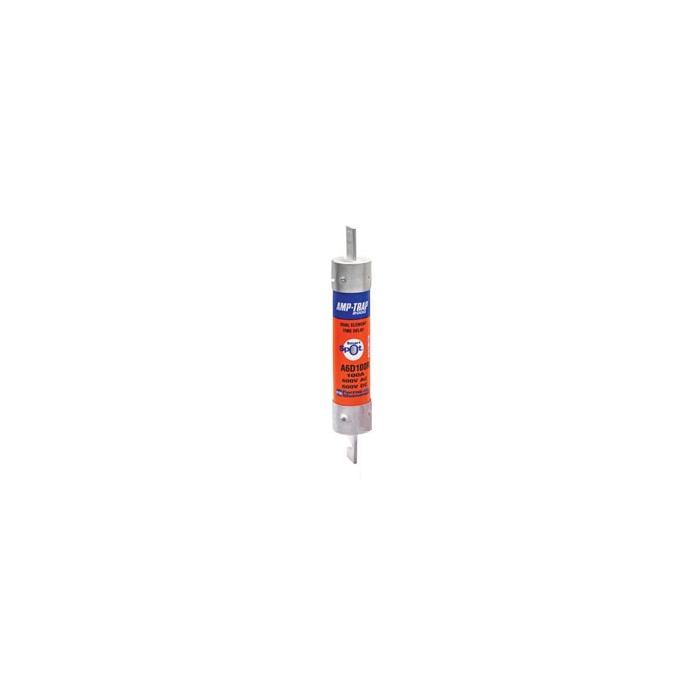

Ferraz Shawmut A6D150R A6D-R Fuse 150A

Product Description

The Ferraz Shawmut A6D150R is a Class RK1 time-delay fuse with a voltage rating of 600VAC/DC and a current rating of 150A. Amp-Trap 2000 time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits. It provides short circuit protection to prevent damage to motor starters and switches.

• Time-delay
• IEC Type 2 "no damage" protection
• Short circuit protection
• Replaces older 600V Class H, K or RK5 fuses

Product Highlights

This fuse features a SmartSpot indicator and a rejection-style design to prevent replacement errors. It is UL listed and CSA certified.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: A6D150R

Technical Specifications

• Fuse Speed: Time Delay
• Fuse Amps: 150A
• Interrupt Rating: 200kA at 600VAC, 100kA at 600VDC
• Series: A6D-R
• Voltage Rating: 600VAC/DC
• Body Material: Polyester
• Fuse Type: Indicating
• Element: Dual
• Diameter: 1-13/16"
• Classification: RK1
• Standards: UL 248-12 File E2137, DC UL 248, CSA C22.2 No. 248.12
• RoHS Compliant: Yes
• Mounting: Clip
• Sub Brand: Amp-Trap 2000; SmartSpot
• Brand Name: Ferraz Shawmut
• Connection: Blade
• Application: Motors Safety Switches Transformers Disconnects Control Panels All General-purpo
• Manufacturer: FERRAZ SHAWMUT
• Special Features: Solid-state SmartSpot indicator Time-delay for motor starting and transformer in
• Type Of Indicators: SmartSpot
• Body Style: Cylindrical
• Terminal Style: Blade
• Body Diameter: 1-13/16 in
• Body Length: 9-5/8 in
• Type: Time Delay, Indicating, Rejection
• Amps: 150
• Volts AC: 600
• Fuse Class: RK1
• Time Delay: Yes
• Physical Size: 1 13/16" x 9 5/8"
• AC Voltage Rating: 600
• DC Voltage Rating: 600
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Family: Amp-Trap 2000
• Amp: 150
• Volt: 600
• Category: Fuses
• AIC Ratings: 200kA@600V
• Mpn: A6D150R
• Upc: 782001992163
• Gtin: 782001992163
• Product: 600V 150A RK1 TD FUSE
• Reference: C212706
• Product Brands: Mersen - Formerly Ferraz & Gould Shawmut
