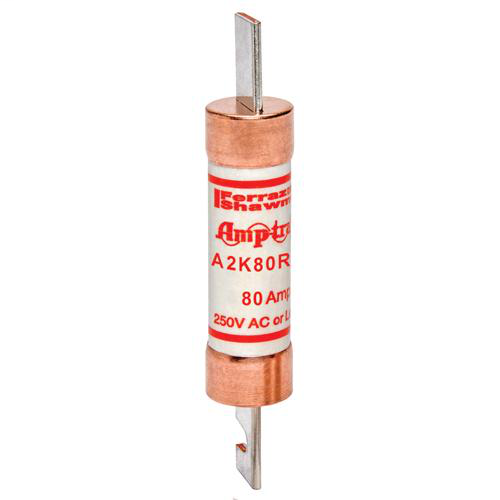

Ferraz Shawmut A2K80R 250V 80A RK1 Fuse

Product Description

The Ferraz Shawmut A2K80R is a current-limiting Amp-Trap fuse designed to provide protection in high short-circuit current scenarios. ThisRK1 fuse is suitable for branch and feeder circuits and offers essential backup protection.

• Designed for high short-circuit current protection.
• Fast-acting for immediate interruption.
• Ideal for load centers, panelboards, and switchboards.

Product Highlights

This fuse features a rejection style design that prevents incorrect replacements and a fiberglass body ensuring stability in tough environments.

Product Information

Standard Information

• Brand: Ferraz Shawmut Canada, Inc.
• Manufacturer: Mersen

Technical Specifications

• Amperage: 80 Amp
• Voltage: 250 VAC
• Fuse Class: Class RK1
• Length: 5.88 Inch
• Diameter: 1.06 Inch
• Weight: 0.38 lb
• Interrupt Rating: 200 kAIC
• Terminal Material: Tin-Plated Copper
• Construction: Fiberglass
• Applications: Load centers, panelboards, switchboards, bus duct, feeder circuits, non-inductive loads, lighting circuits
