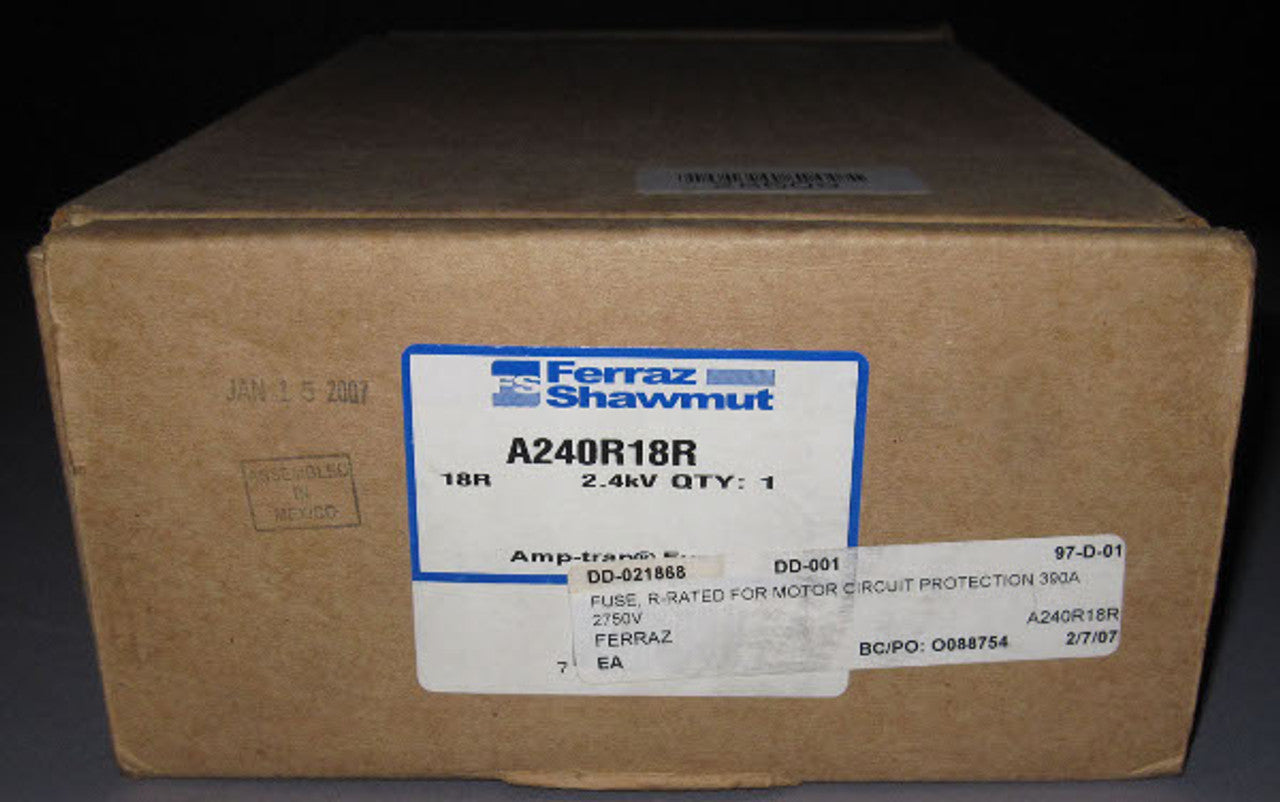

Ferraz Shawmut A240R18R R-Rated Medium Voltage Fuse

Product Description

The Ferraz Shawmut A240R18R is an R-Rated fuse suitable for short circuit protection in medium voltage applications. This fuse offers current limiting capabilities and high interrupting ratings, making it essential for protecting medium voltage motors and motor controllers. It features a ferrule connection and includes a visual indicator to show operational status. The epoxy body construction ensures durability, while the silver-plated copper terminals provide reliable connectivity.

• R-Rated for medium voltage motor protection
• Visual indicator for operational status
• Current-limiting with high interrupting rating

Product Highlights

This fuse type is critical in conjunction with overload relays in combination motor starters.

Product Information

Standard Information

• Manufacturer Part Number: A240R18R
• Rated Voltage AC UL: 2400 V

Technical Specifications

• Frequency: 50/60 Hz
• AC or DC: AC
• Speed/Characteristic: R-Rated
• Mounting Type: Clip
• AC Max I.R./Breaking Capacity: I1: 65 kA
• Design Details: 18R
• Indication System: Yes
• Indication System Type: Visual Indicator
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Width: 6.41 in
• Product Length: 10.88 in
• Product Height: 6.41 in
• Sell Pack Quantity: 1 EA
• Sell Pack Weight: 15.75 lb
• Sell Pack Width: 8 in
• Sell Pack Length: 12.75 in
• Sell Pack Height: 4 in
• Product Group: Medium Voltage IEEE Fuses
• Body/Insulating Material: Epoxy
• Product Weight: 15 lb
• ROHS Compliant: Yes
