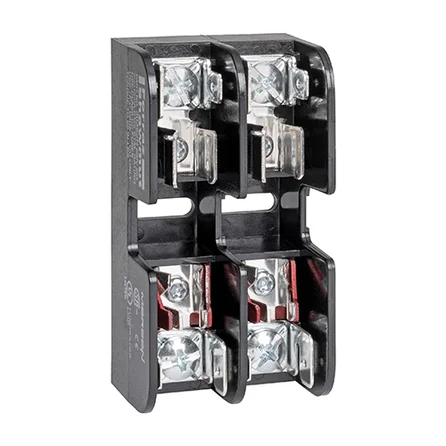

Ferraz Shawmut 30352R Fuse Block 30A 600V 2P

Product Description

The FERRAZ SHAWMUT 30352R is a 30A 600V 2-pole fuse block with copper box lugs, designed for 2-phase systems. It accommodates Class CC fuses and supports a wire range of Cu #6-14. The fuse block has an interrupting rating of 200,000 AIC RMS and 10,000A DC (when using quick connect).

• 30 Amps
• 600 Volts AC
• 2 Pole Fuse Block

Product Highlights

Designed for 2-phase systems operating at 600 VAC and 30 AMP. It is suitable for commercial, control equipment panels, and industrial applications.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: 30352R

Technical Specifications

• Manufacturer: MERSEN
• MPN: 30352R
• Amps: 30
• Voltage: 600 VAC
• Poles: 2
• Fuse Class: CC
• Wire Range: Cu #6-14
• AC Voltage Rating: 600
• DC Voltage Rating: 600
• Interrupting Rating: 200,000 AIC RMS
• Interrupting Rating (DC): 10,000A DC (When using quick connect)
• Brand: Ferraz Shawmut
• Series: 30
• Mounting Style: Bolt-On
• Current Type: AC/DC
• Type: Fuse Block
• Number in Pack: 1
• Number of Poles: 2
• Application: Commercial, Control Equipment Panels, Industrial
• Current Rating: 16-30 A
