Product Description

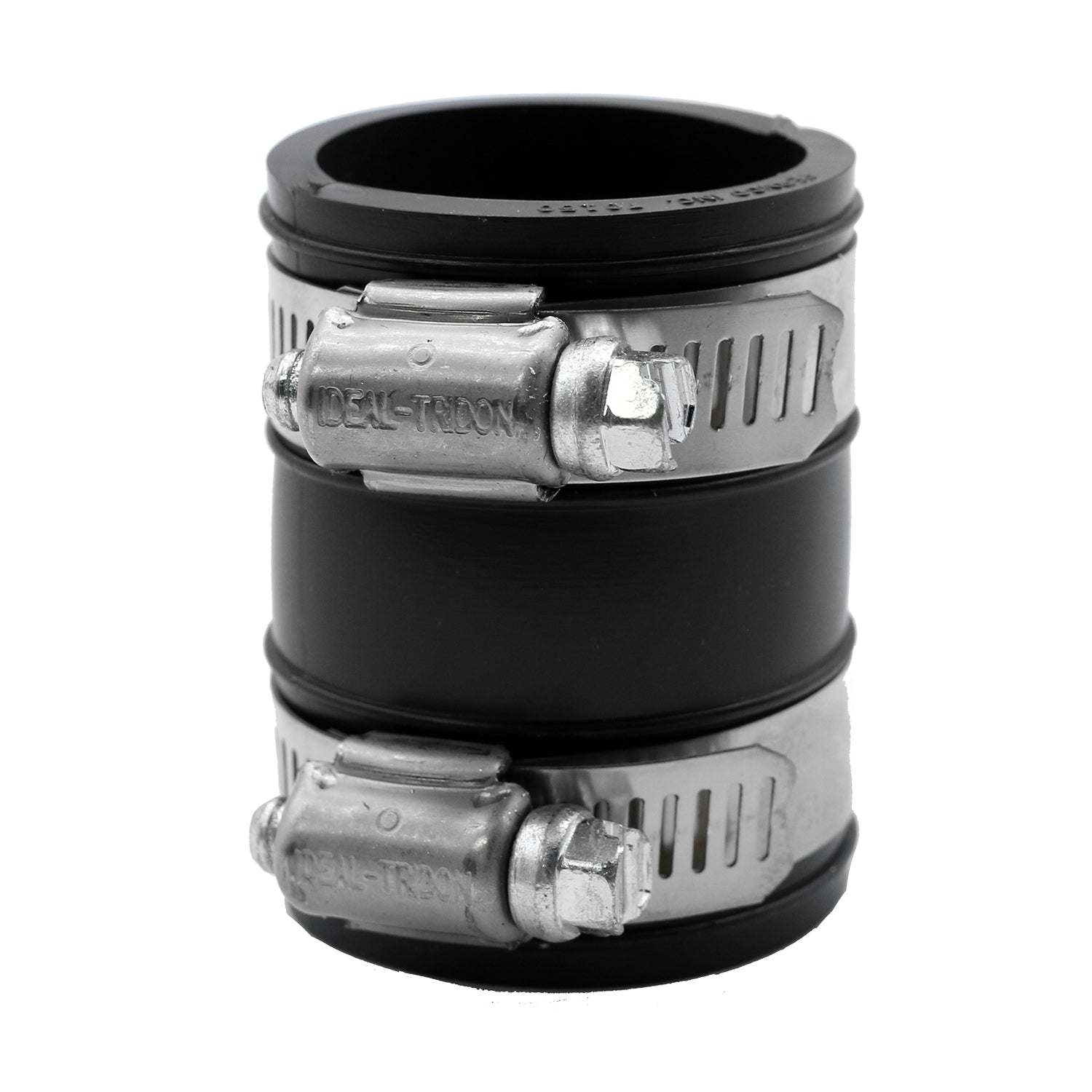

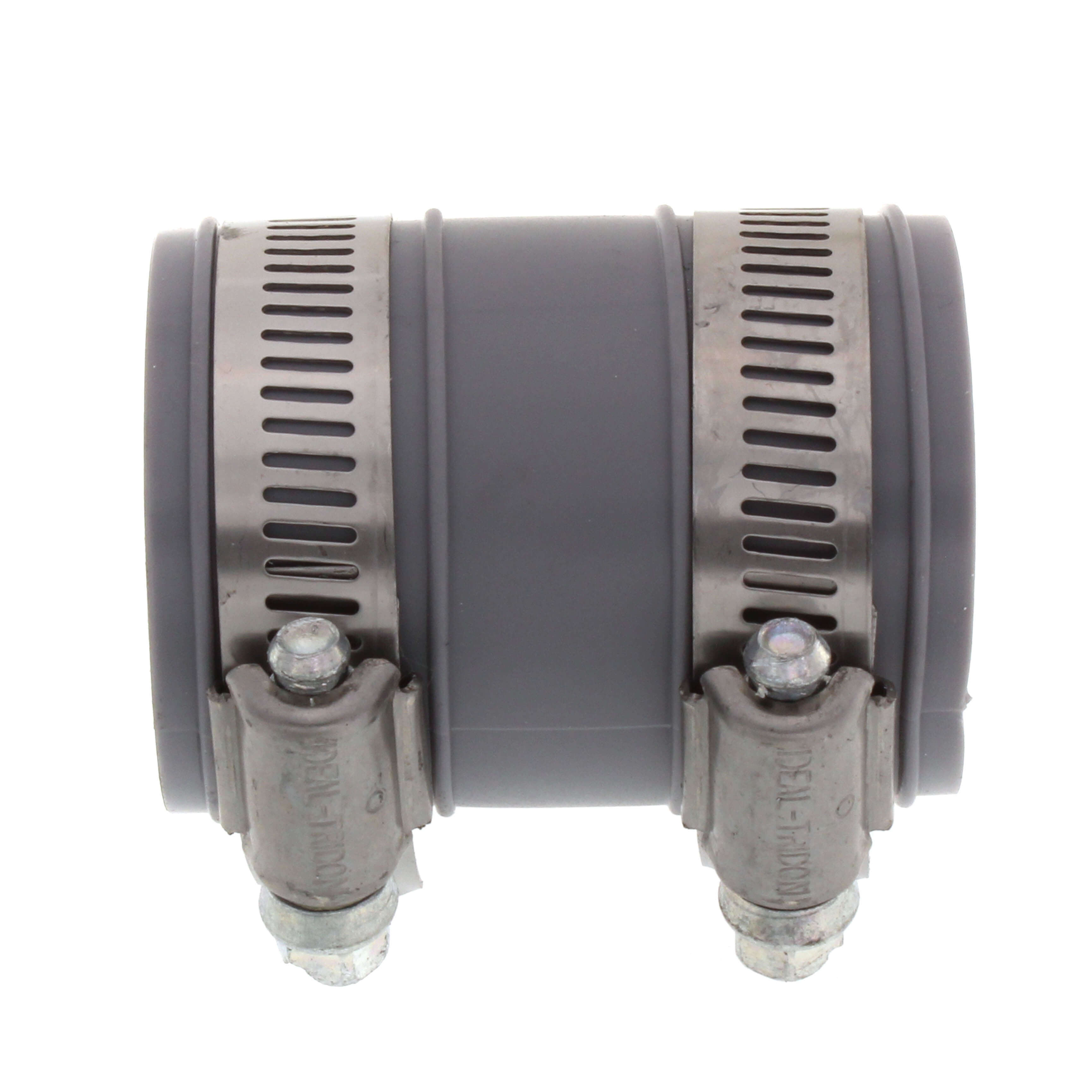

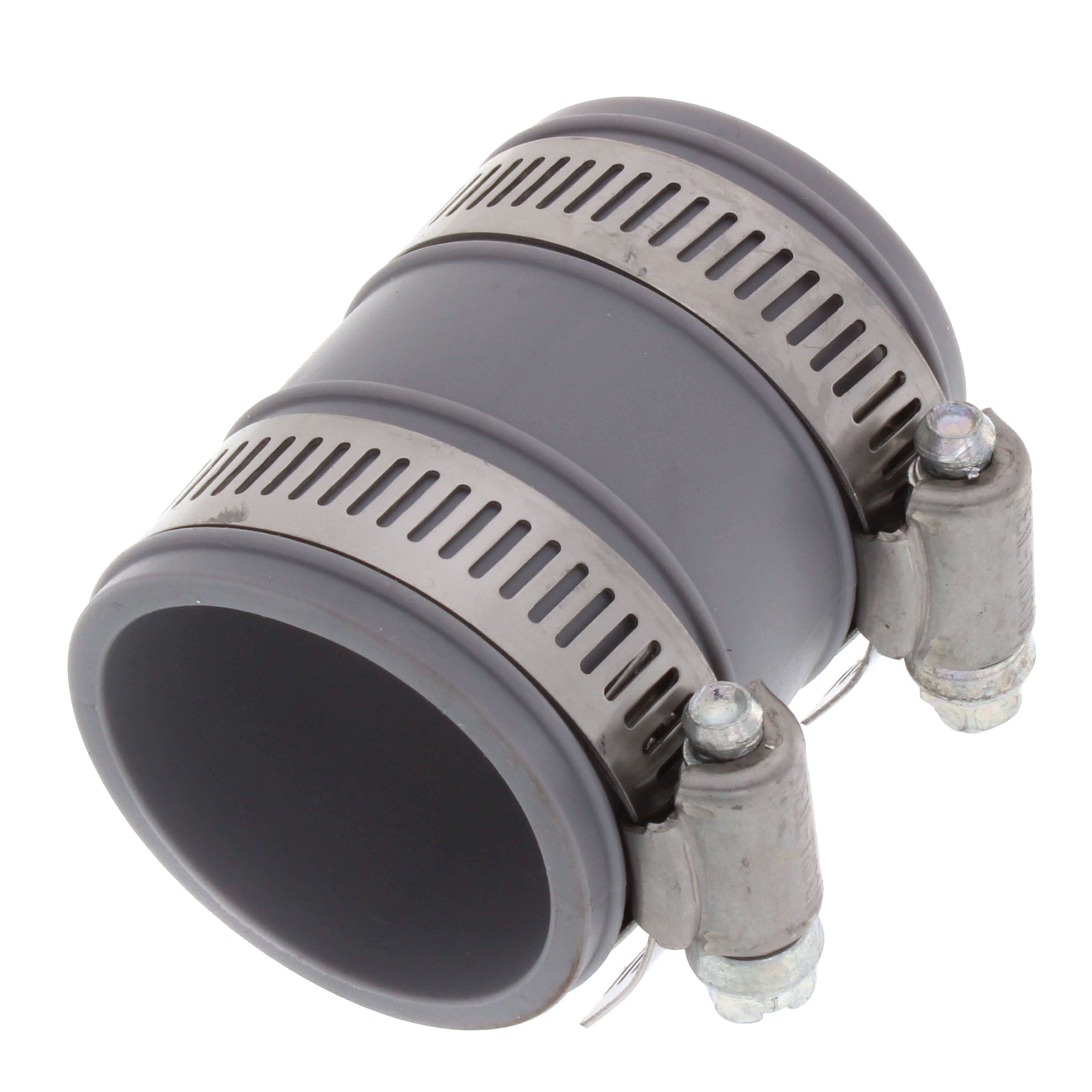

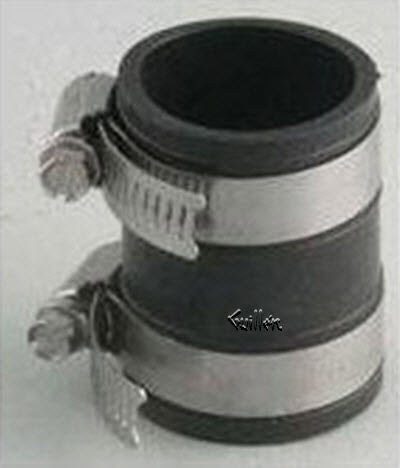

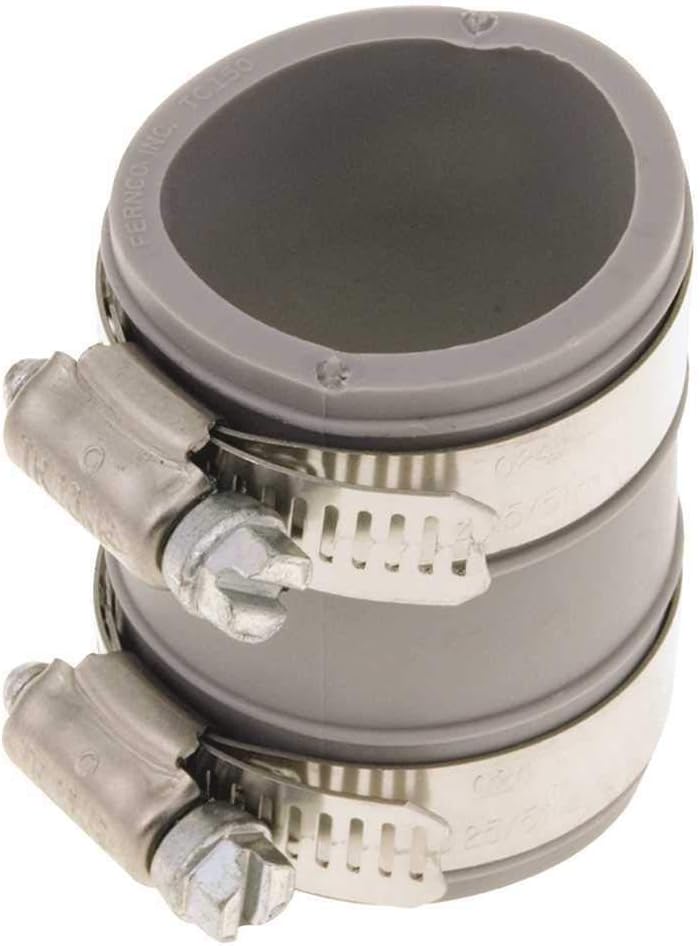

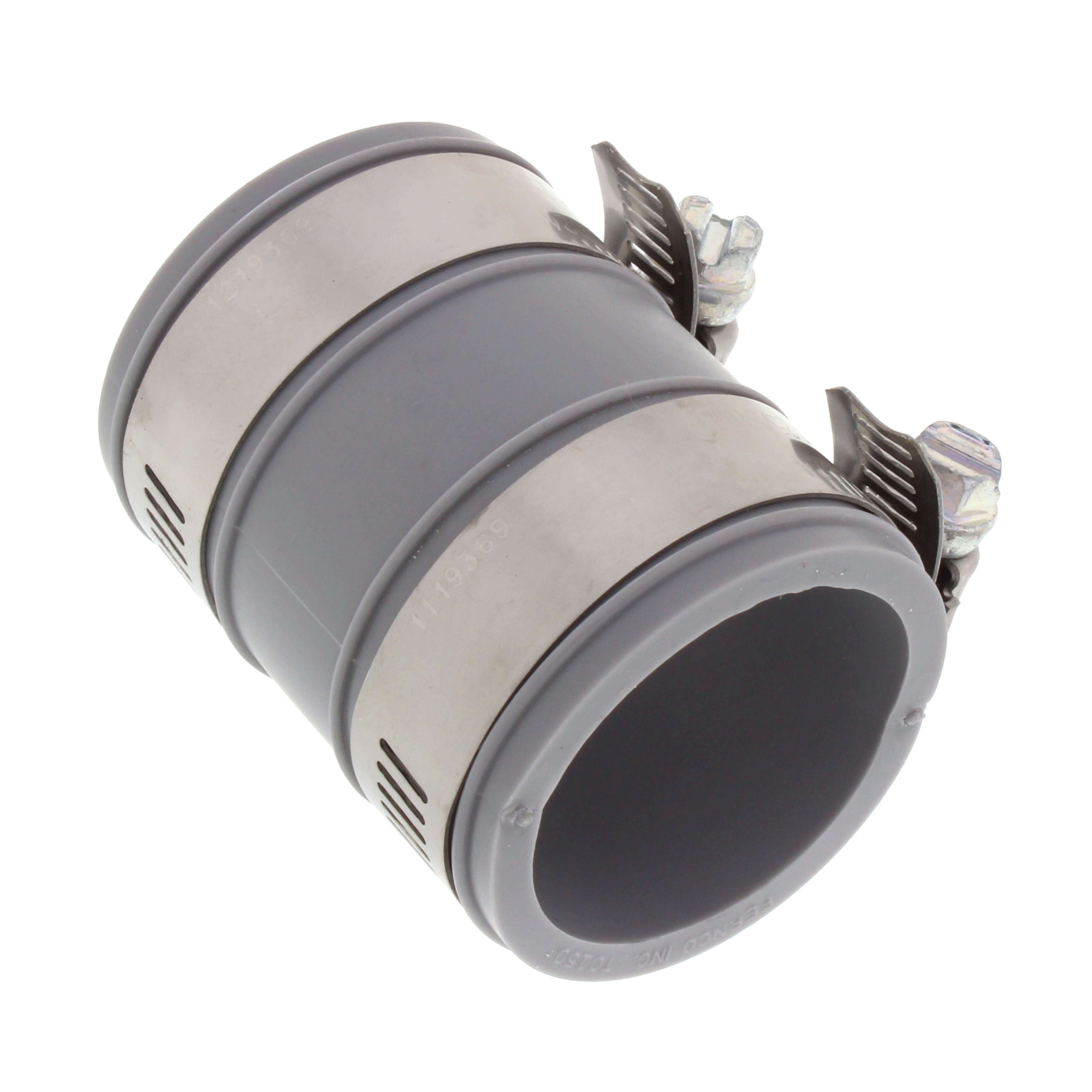

The Fernco TC-150 tubular drain pipe connector offers a solution for extending, altering, or repairing 1-1/4" or 1-1/2" brass or plastic drain pipes. This connector provides a positive seal against infiltration and exfiltration and connects pipes of similar or different sizes and materials. It is suitable for brass or plastic tubular drain pipes.
- Provides a positive seal against infiltration and exfiltration
- Resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases
- Connects pipes of same or different sizes and materials quickly and easily
Product Highlights
This Fernco tubular drain pipe connector is formulated for drain use, providing a strong and reliable connection. It can be cut shorter for limited space pipe connections.
Product Information
Standard Information
-
Brand: FERNCO
-
Manufacturer Part Number: TC-150
-
Country of Origin: USA
Technical Specifications
-
Material: Polyvinyl Chloride
-
Measurement System: Inch
-
Type: Straight
-
Size A: 1-1/4 Inch or 1-1/2 Inch
-
Size B: 1-1/4 Inch or 1-1/2 Inch
-
Material Specification: ASTM D5926/C1173
-
Pressure Rating: 4.3 PSI (Test)
-
Temperature Rating: -30 to 140 Deg F
-
Application: Brass/Plastic Tubular Drain Pipe
-
Applicable Standard: CSA B602, UPC, ICC-ES-PMG (Canada)
-
Torque Rating: 60 Inch-Pound
-
Nominal Size: 1-1/2 in
-
Length: 2.34 in
-
Domestic/Import: Domestic
-
Product Type: Tubular Drain Pipe Connector
-
Size: 1-1/4 in., 1-1/2 in.
-
Drain Pipe Size: 1-1/2"/1-1/4"
-
Made of: flexible PVC
-
For: 1-1/4” or 1-1/2” drain piping
-
Item Name: Tubular Drain Pipe Connector
-
Applications: For repair any combination of 1-1/2 or 1-1/4 in brass or plastic drain pipes
-
Fitting/Connector Type: Connector
-
End Connection: Plastic to Tubular
-
Connection Size: 1-1/4 or 1-1/2|in
-
Vendor: Fernco
-
Category: Fittings
-
Product UPC: 018578016750
-
Model Number: TC-150
-
Product Category: Plumbing
-
Type of Material: Elastomeric PVC
-
Manufacturer Name: FERNCO
-
PSI: 4.3
-
UPC: 018578016750
-
Nominal Size A: 1-1/2 inch or 1-1/4 inch
-
Constructions: 300 Series Stainless Steel Band,300 Series Stainless Steel Band,PVC, Threaded Connection
-
Standards: CSA B602
-
For Use With: Any Combination of 1-1/2 inch - 1-1/4 inch Tubular Drain piping
-
Part Number: TC-150
-
Dimension A - inches: 1.46 in
-
Dimension B - inches: 1.46 in
-
Dimension C - inches: 2.34 in
-
Dimension A - millimeters: 37 mm
-
Dimension B - millimeters: 37 mm
-
Dimension C - millimeters: 59 mm
