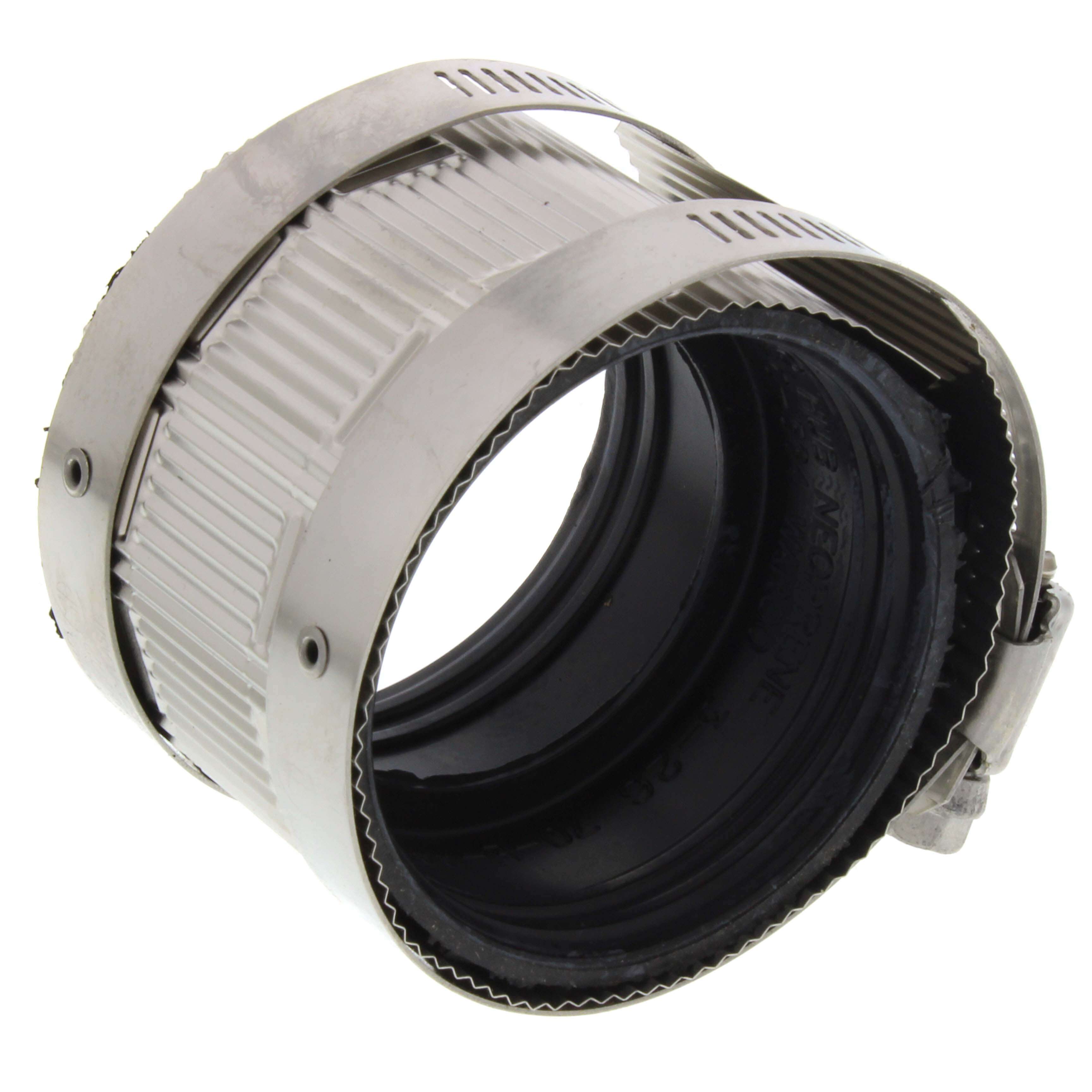

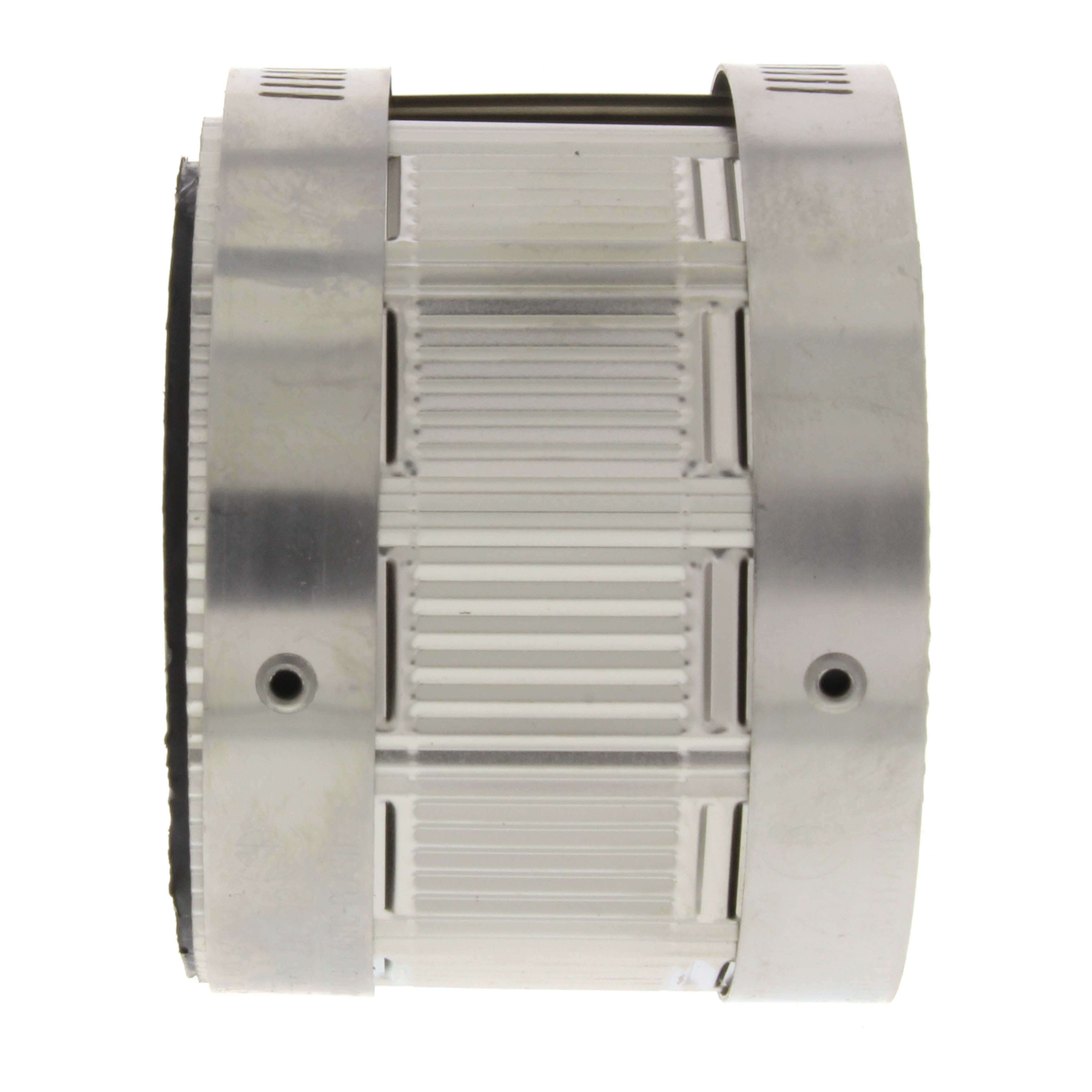

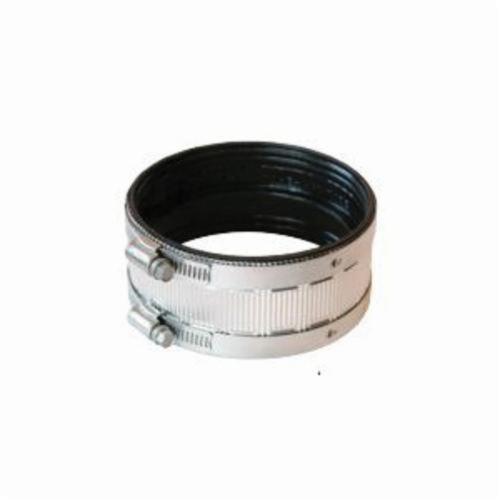

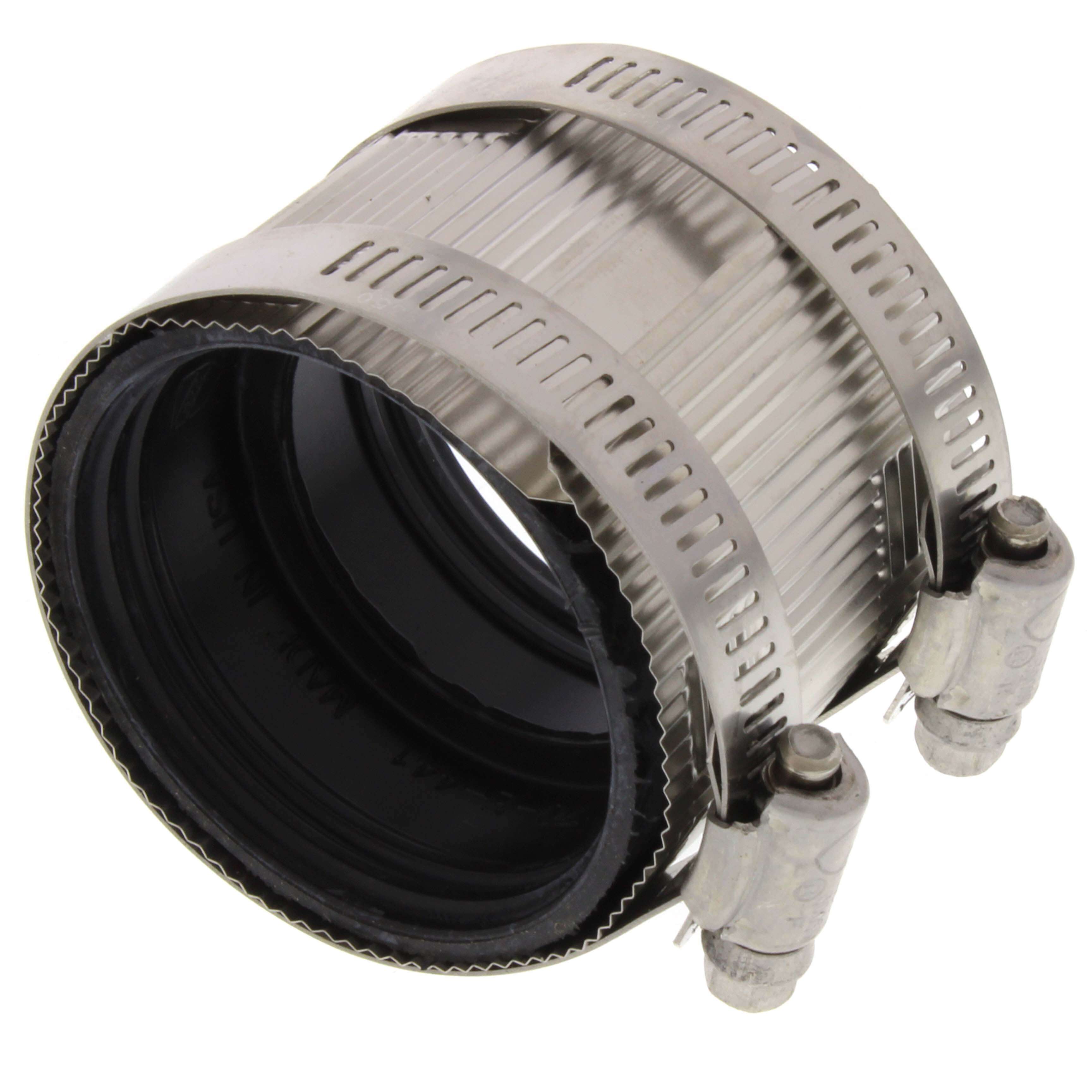

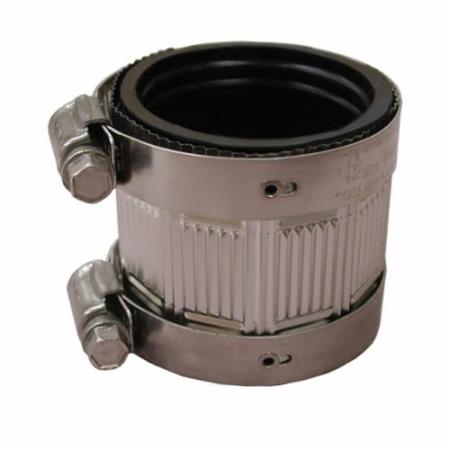

Fernco NH-22 No Hub Coupling 2 in (Replaces FFNO2X2, 006220, C200C)

Product Description

Fernco NH-22 is a standard-duty no-hub pipe coupling for 2 in nominal pipe that connects no-hub cast iron and compatible plastic plumbing. The coupling uses a rubber elastomeric gasket that meets ASTM C564, an ASI 305 stainless steel screw and a shield/band assembly designed to transfer clamp pressure to the gasket and pipe. It conforms to CISPI 310 and is rated to 150 psi for standard plumbing applications.

• Standard-duty no-hub coupling for 2 in nominal pipe with slip-by-slip connection and chrome shield/stainless-style band
• Rubber elastomeric gasket meeting ASTM C564; patented shield design transfers clamp pressure to gasket and pipe
• ASI 305 stainless steel screw with 5/16 in hex head; installation torque 60 in-lb; conforms to CISPI 310 and ASTM C1277

Product Highlights

Standard-duty 2 in no-hub coupling; elastomeric gasket meets ASTM C564; ASI 305 stainless screw; CISPI 310 and ASTM C1277 compliance; 150 psi rating.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: NH-22
• Country of Origin: United States

Technical Specifications

• Brand: Fernco
• Manufacturer: Fernco Inc.
• Manufacturer Part Number: NH-22
• MPN: NH-22
• Series: NH Series
• Fitting/Connector Type: Coupling
• End Style: No-Hub
• Nominal Size: 2 in
• Size: 2 in
• Type: Standard Duty
• Connection Type: Slip x Slip
• Material: Rubber gasket; chrome shield / stainless-style band
• Gasket Material: Elastomeric compound (meets ASTM C564)
• Screw Type: ASI 305 stainless steel screw; 5/16 in hex-head
• Installation Torque: 60 in-lb
• Pressure Rating: 150 psi
• Standards and Approvals: CISPI 310; ASTM C564; ASTM C1277
• Country of Origin: US (Domestic)
• UPC: 018578016460
• Replaces: FFNO2X2, 006220, C200C
• Unit Count: 1
