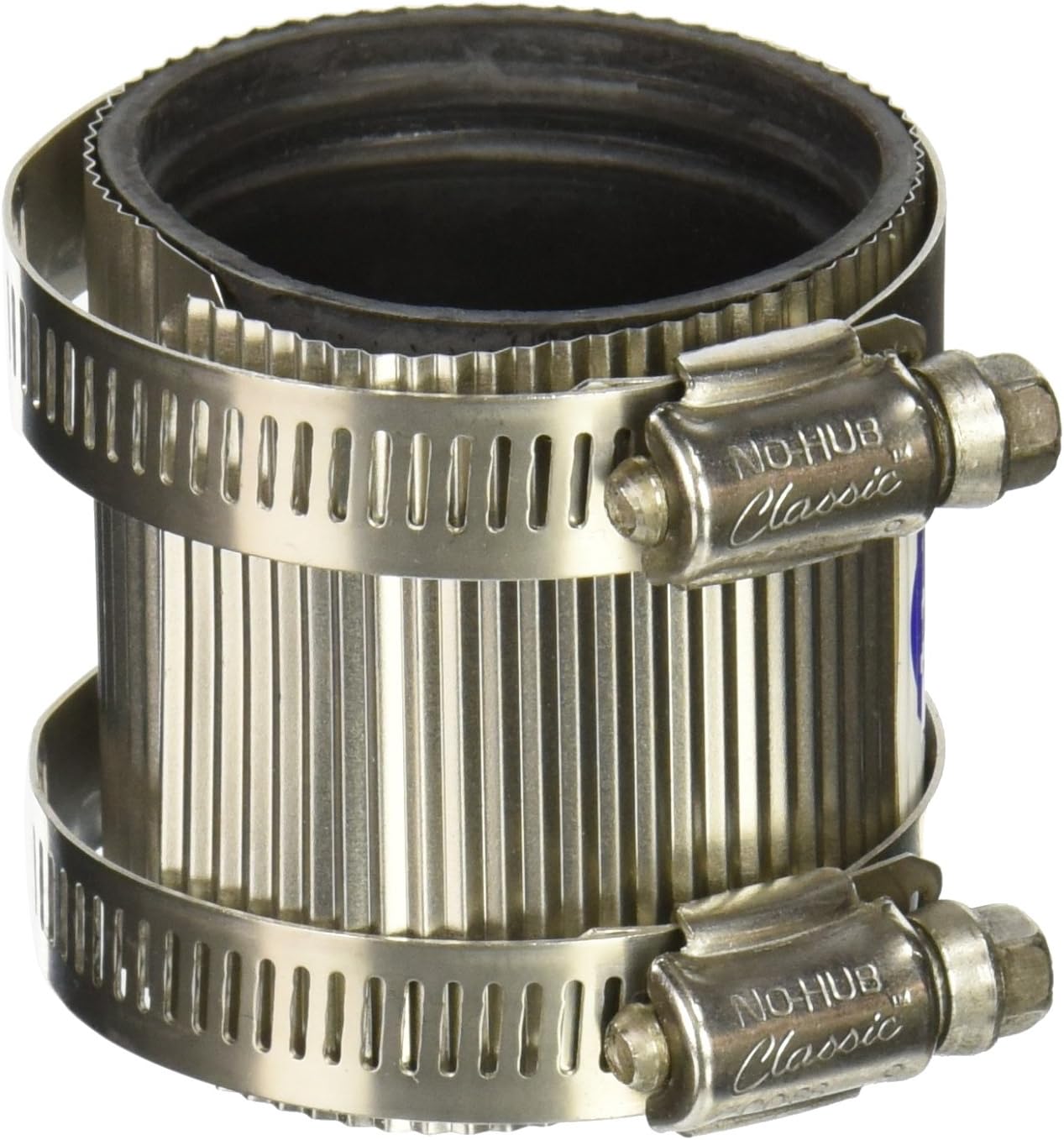

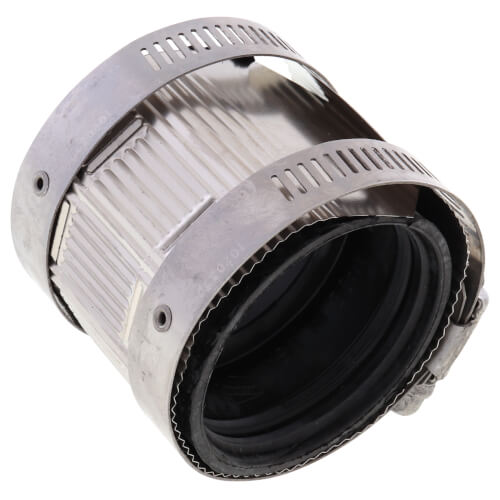

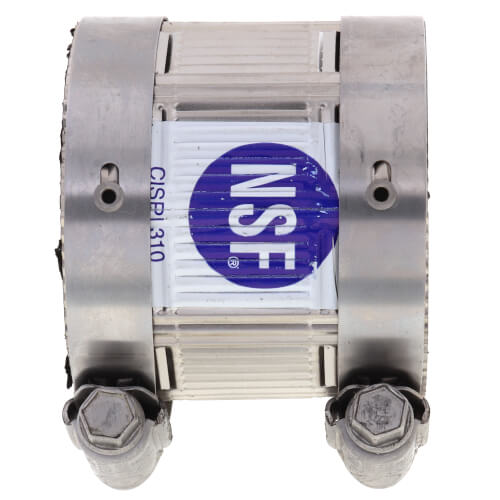

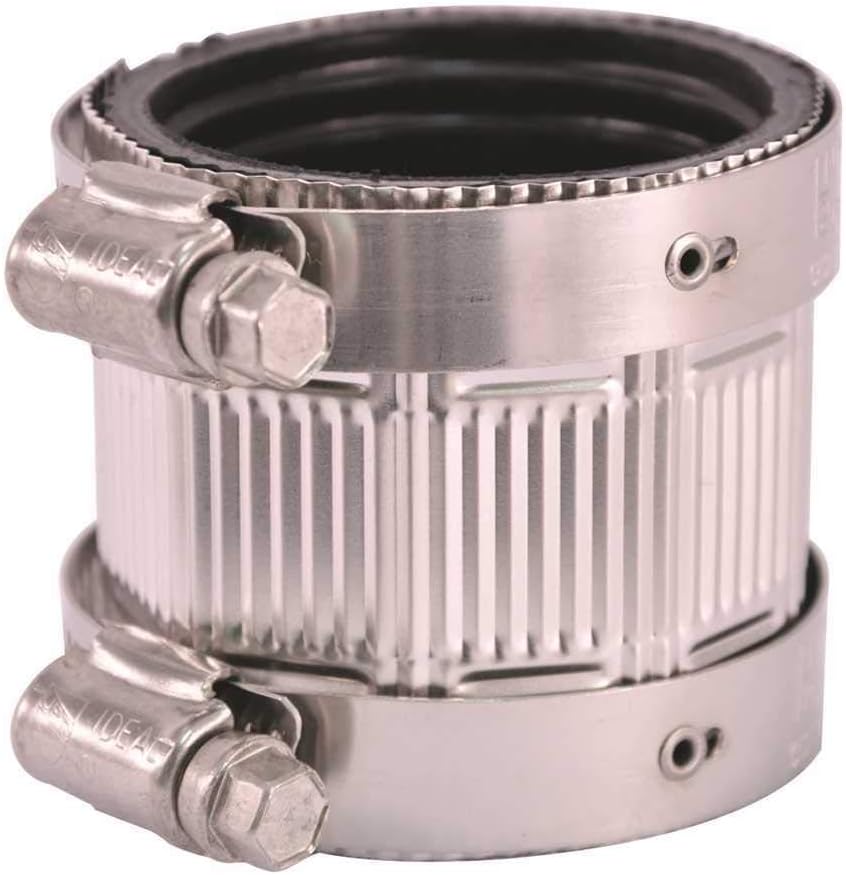

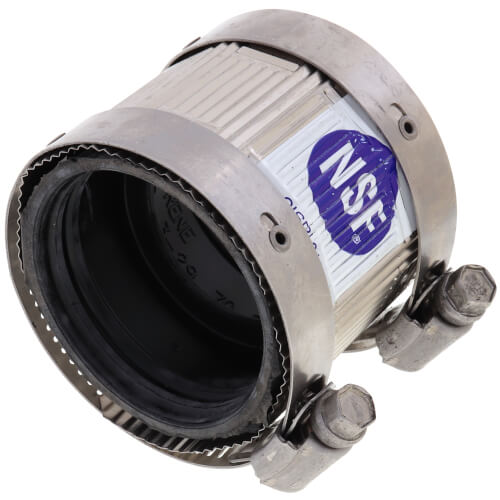

Fernco NH-150 Standard-Duty No-Hub Coupling (1-1/2 in)

Product Description

Fernco NH-150 is a standard-duty no-hub coupling for 1-1/2 inch pipe joints that features an EPDM rubber gasket and a stainless steel exterior finish and is certified to ASTM standards. It connects no-hub cast iron plumbing and transfers clamp pressure to the gasket via a shielded band assembly tightened with a 5/16-inch hex-head screw to approximately 60 in-lb of installation torque. The coupling is tested to 4.3 psi and is supplied as a single unit for drainage and general plumbing connections.

• EPDM rubber gasket with shielded band assembly for leak-resistant sealing
• Stainless steel exterior band with 5/16-inch hex-head screw applying 60 in-lb installation torque
• Designed for 1-1/2 in no-hub cast iron plumbing; tested to 4.3 psi; meets ASTM/CISPI standards

Product Highlights

Standard-duty 1-1/2 in no-hub coupling; EPDM gasket; stainless steel band; ASTM/CISPI compliant; 60 in-lb installation torque.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: NH-150
• Country of Origin: USA

Technical Specifications

• Brand: Fernco
• Manufacturer Part Number: NH-150
• Product Type: No-hub coupling
• Size: 1-1/2 in (1.5 inches)
• Gasket Material: EPDM rubber
• Exterior Finish: Stainless steel
• Band Material: 300 series stainless steel
• Connection Type: Shielded band clamp (no-hub)
• Screw Type: 5/16-inch hex-head
• Installation Torque: 60 in-lb
• Pressure Rating: 4.3 psi (tested)
• Standards/Certifications: ASTM C1277; CISPI 310; gasket meets ASTM C564
• Application: Plumbing drainage connections; connects no-hub cast iron pipe
• Item Weight: 3.68 ounces
• Package Quantity: 1
• Made In: USA
• Lead-Free: Yes
• UPC: 018578000759
