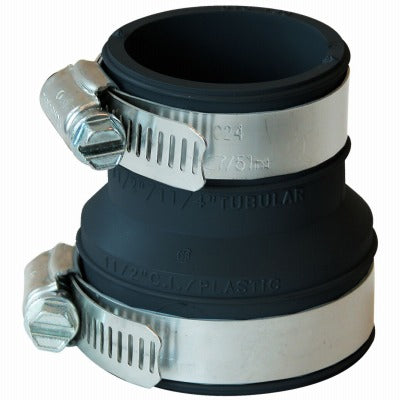

Fernco Inc PDTC-150 Drain Trap Connector 1.5x1.25 in

Product Description

The FERNCO INC PDTC-150 is a flexible drain trap connector designed to join a sink trap or sump pump discharge to a 1.5-inch drain line. The connector accommodates both 1.5-inch and 1.25-inch trap outlets, making it a versatile fit for common residential and light commercial drain configurations. Two stainless steel clamps are included to secure the connection on both ends. The flexible body compensates for minor misalignment between trap and drain stub-out, reducing the need for rigid fittings or excessive pipe modification. Plumbers and drain service techs reach for this connector when retrofitting traps or replacing deteriorated slip-joint sections under sinks and in sump pump discharge lines.

This connector is suited for under-sink drain assemblies where the trap outlet does not line up perfectly with the wall or floor drain stub-out. It also serves as a transition fitting between a sump pump discharge outlet and a 1.5-inch drain line. Typical installations are found in residential kitchens, bathrooms, utility rooms, and laundry areas. The included stainless steel clamps provide a secure, leak-resistant seal without requiring solvent cement or heat tools.

Key Features

• Connects 1.5-inch or 1.25-inch sink trap outlets to a 1.5-inch drain line
• Two stainless steel clamps included for secure, corrosion-resistant clamping on both ends
• Flexible body accommodates minor pipe misalignment during installation
• Compatible with sump pump discharge to 1.5-inch drain applications
• No solvent cement or heat tools required for installation

Compatibility

Designed to connect a 1.5-inch or 1.25-inch sink trap outlet or sump pump discharge to a 1.5-inch drain line. No specific model compatibility data was provided beyond these pipe size applications.

Installation Notes

Installation is typically performed by a licensed plumber or experienced drain technician. Turn off water supply and clear the trap of standing water before beginning work. Position the connector over the trap outlet and drain stub-out, then tighten the stainless steel clamps evenly to achieve a leak-free seal. Check local plumbing code requirements, such as the IPC, for approved use of flexible connectors in drain trap applications.

Technical Specifications

• Inlet Size: 1.5 inches x 1.25 inches
• Outlet Size: 1.5 inches
• Clamps Included: 2 stainless steel clamps
• Weight: 4 pounds
• Package Quantity: 20 EA

Standard Information

• Brand: FERNCO INC
• Manufacturer Part Number: PDTC-150
