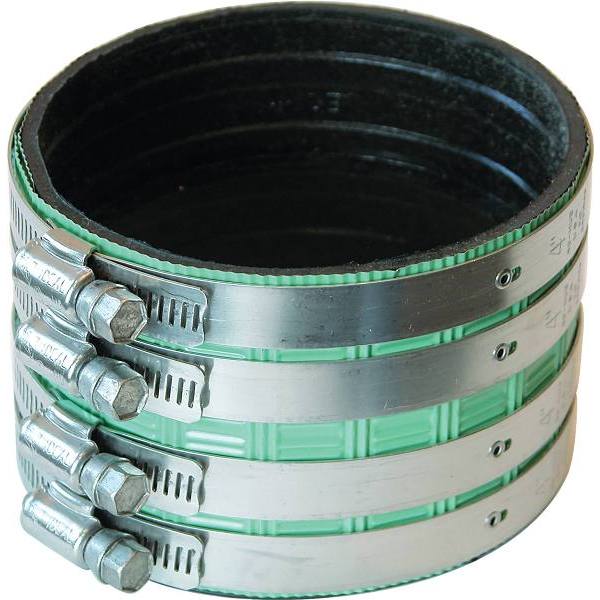

Fernco HD-44 HD Series Heavy Duty Pipe Coupling 4 in Nominal

Product Description

The FERNCO HD-44 heavy-duty pipe coupling is part of the HD Series, designed for connecting no-hub cast iron pipes. This 4 in nominal coupling features a patented shield design that maximizes pressure transfer from the clamps to the gasket and pipe. It replaces less-efficient hub and spigot connections in plumbing applications.

• Features a patented bi-directional shield design that adjusts to various pipe diameters and circumferences, eliminating leak paths.
• Includes a specially beaded gasket made from an elastomeric compound, meeting ASTM C564 requirements.
• Features an interlocking clamp design with a one-piece screw housing that mechanically interlocks to the band.

Product Highlights

The heavy-duty coupling boasts a distinctive green shield for easy identification and conforms to CISPI 310 and ASTM C564 standards.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: FERNCO-HD44
• Country of Origin: US

Technical Specifications

• Brand: Fernco®
• Fitting/Connector Type: Coupling
• Nominal Size: 4 in
• Material: Stainless Steel
• Manufacturer Name: Fernco
• Series: HD Series
• Type: Heavy Duty
• Domestic/Import: Domestic
• Country of Origin: US
• Standards and Approvals: ASTM C564/C1540 | CISPI 310 | CMR-248 | IAPMO File No. 3198 | MEA 253-98-E
• Application: Plumbing
• Fitting Connectivity: Clamp
• Fitting Connectivity A Side: Clamp
• Fitting Connectivity B Side: Clamp
• Fitting Material: Stainless Steel
• Fitting Size: 4 in.
• Inlet Size: 4 in.
• Maximum Operating Pressure: 4.3 PSI
• Media: Water
• Outlet Size: 4 in.
• Package Quantity: 1
• Shape: Cylindrical
