Product Description

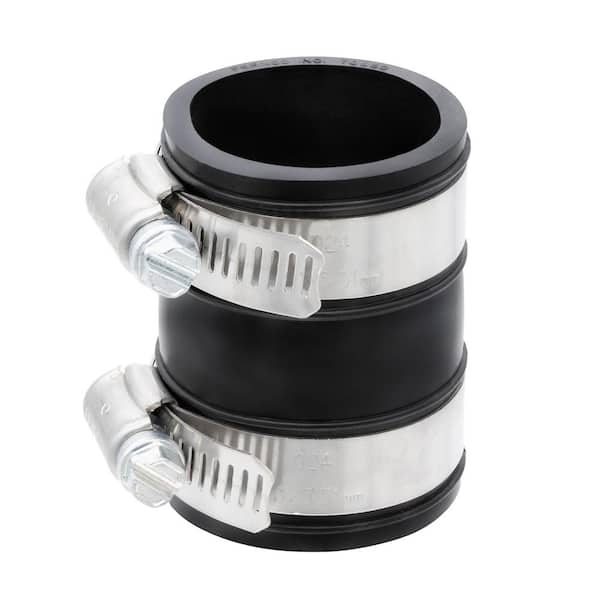

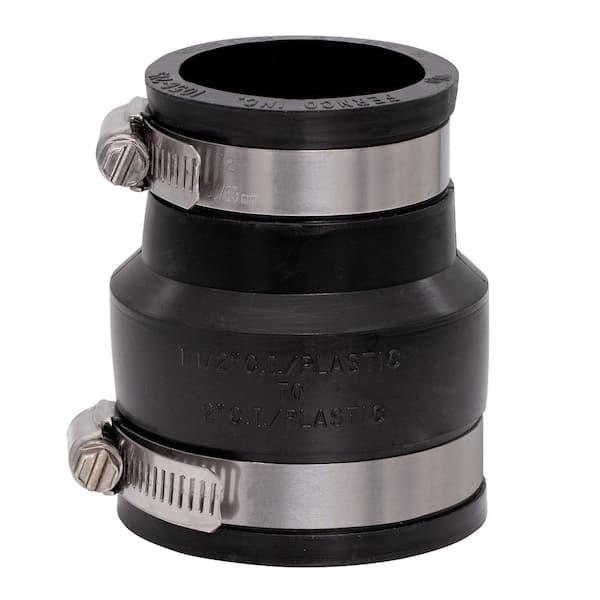

The FERNCO FERNCO-1056-215 flexible coupling transitions 2" cast iron or PVC to 1-1/2" cast iron or PVC. It is suitable for drain, sewer, vent piping, and waste applications. The dimensional flexibility ensures leak-proof pipe seals on various pipe materials. This coupling is clearly marked with the part number, size, and pipe material compatibility.
- 2" x 1-1/2"
- 60 lb-in Torque
- 140°F Max Temp
Product Highlights
Ensures leak-proof pipe seals on various materials. Clearly marked with part number, size, and compatible pipe material.
Product Information
Standard Information
-
Brand: FERNCO
-
Manufacturer Part Number: FERNCO-1056-215
-
Country of Origin: Domestic
Technical Specifications
-
Product Type: Coupling
-
Size: 2" x 1-1/2"
-
Min Temp (F): -30°F
-
Max Temp (F): 140°F
-
Temperature Range (F): -30ºF to 140ºF
-
Torque: 60 lb-in
-
Part Number: 1056-215
-
Dimension A - inches: 2.41 in
-
Dimension B - inches: 1.84 in
-
Dimension C - inches: 3.50 in
-
Dimension A - millimeters: 61 mm
-
Dimension B - millimeters: 47 mm
-
Dimension C - millimeters: 89 mm
-
Supported Connections: Above Ground, Cast Iron connecting to Cast Iron, Cast Iron connecting to Steel, Lead connecting to Cast Iron, Lead connecting to Copper, Lead connecting to Plastic, Lead connecting to Steel, Plastic connecting to Cast Iron, Plastic connecting to Lead, Plastic connecting to Plastic, Plastic connecting to Steel, Steel connecting to Cast Iron, Steel connecting to Copper, Steel connecting to Lead, Steel connecting to Plastic, Steel connecting to Steel
-
Double Fitting Size: 1-1/2" x 2"
-
Schedule Rating: Schedule 40
-
Pressure Rating: 4.3 psi
-
Connection Type: Mechanical
-
UV Resistance: UV Resistance
-
Domestic/Import: Domestic
-
End Style: Plastic
-
Fitting/Connector Type: Coupling
-
Material: PVC
-
Nominal Size: 2 x 1-1/2 In
-
Series: 1056
-
Type: Flexible
