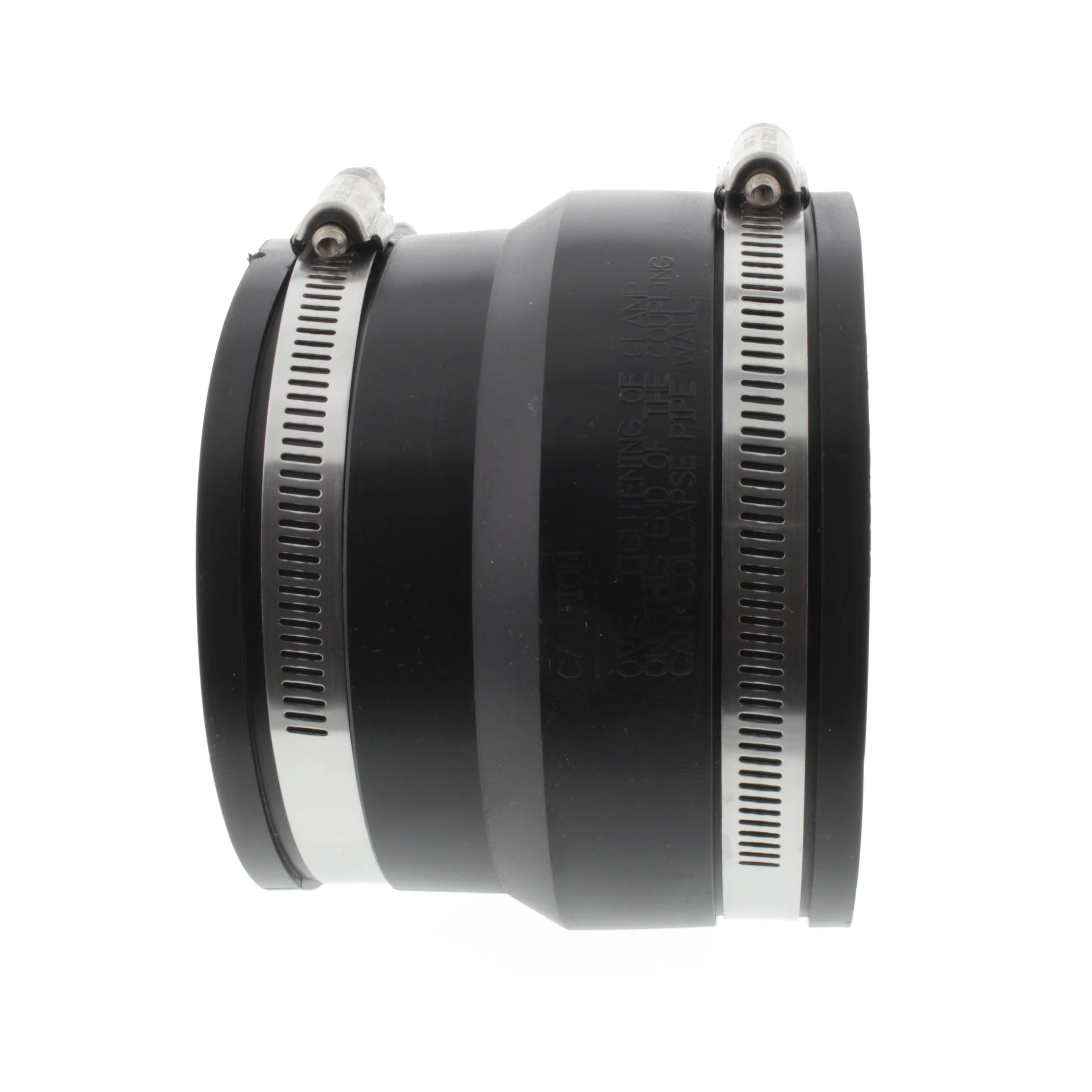

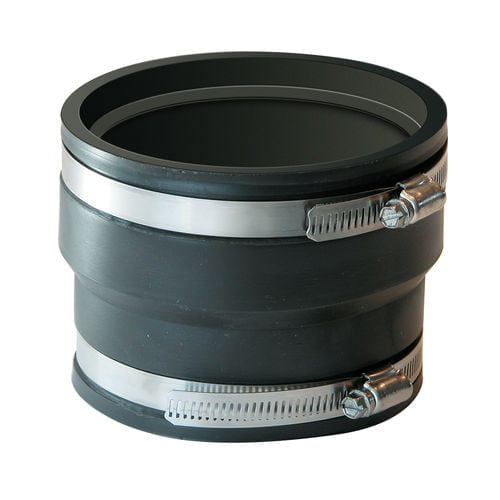

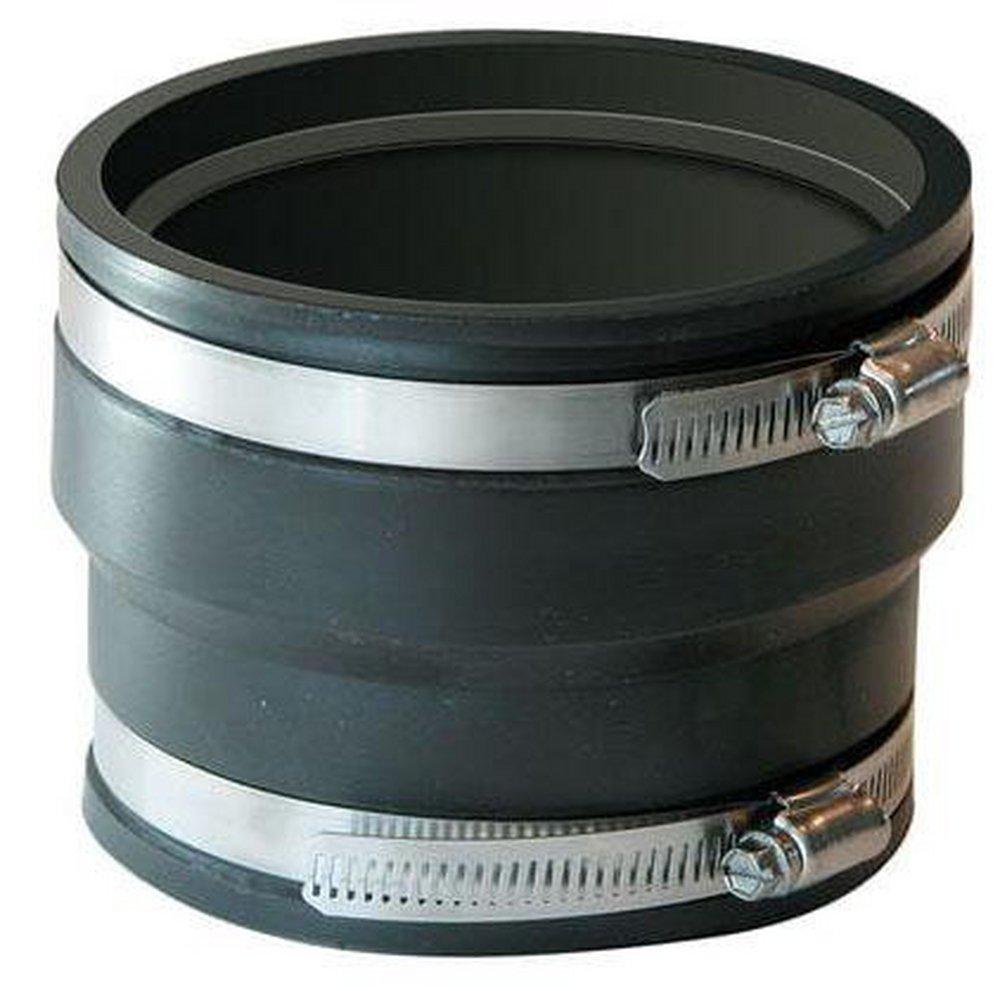

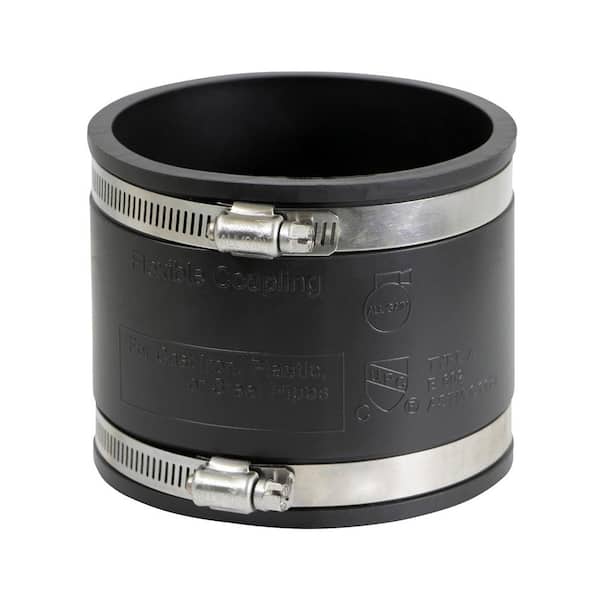

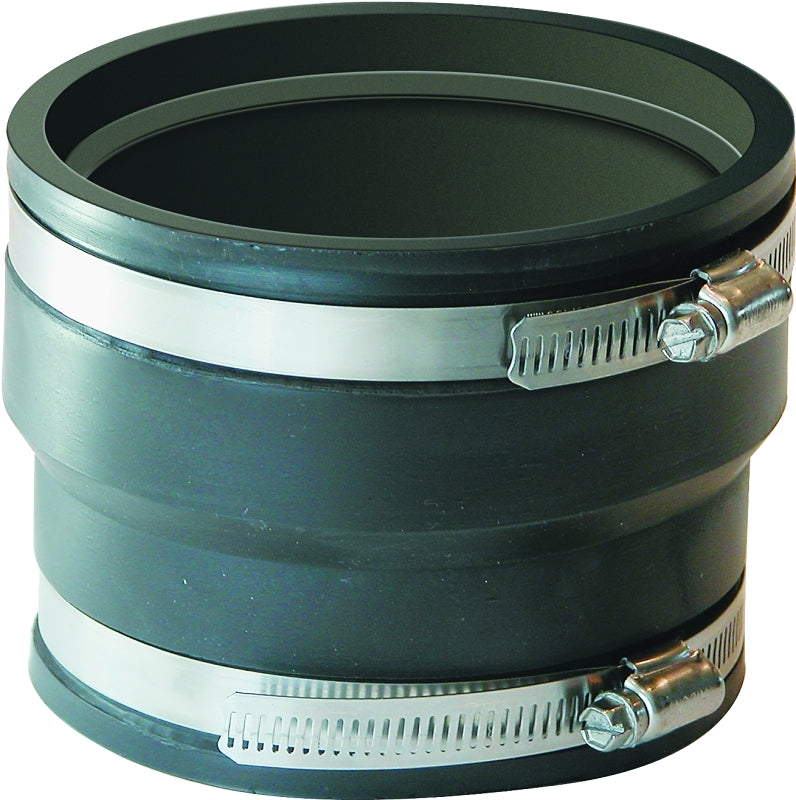

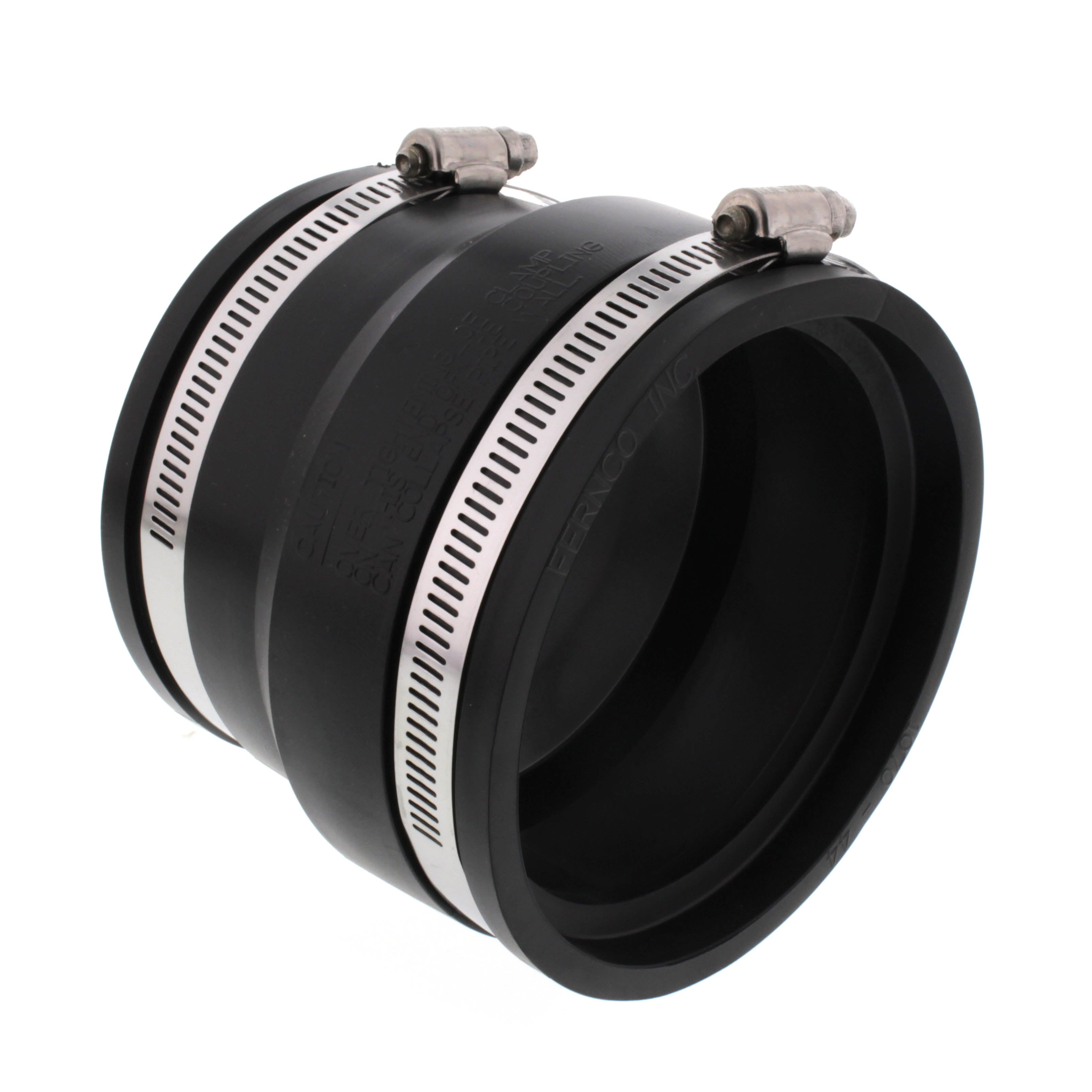

The FERNCO 1070-44 coupling connects pipes of the same or different sizes and materials quickly and easily. Constructed from elastomeric PVC, this coupling provides a positive seal against infiltration and exfiltration. Designed for DWV and sewer applications, it is leakproof and resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases.
Key Features
Positive seal against infiltration and exfiltration
Leakproof and resistant to chemicals, ultraviolet rays, fungus growth and normal sewer gases
Connects pipes of same or different sizes and materials quickly and easily
Made in the USA
Includes 300 series stainless steel clamps for corrosion resistance
Compatibility
Suitable for connecting ADS and Hancor corrugated polyethylene to plastic or cast iron.
Technical Specifications
Applicable Standard
UPC, ICC-ES-PMG, CSA B602
Application
DWV, Sewer, Drainage, Irrigation System
Material
Elastomeric PVC
Material Specification
ASTM D5926/C1173
Size A
4 Inch
Size B
4 Inch
Temperature Rating
-30 to 140 Deg F
Type
ADS and Hancor Corrugated, Polyethylene to Plastic/Cast Iron, Flexible
Domestic/Import
Domestic
End Style
ADS x Cast Iron/Plastic
Fitting/Connector Type
Coupling
Length
4 In Length
Nominal Size
4 in
Series
1070
Size
4 inches
Product Type
Coupling, Flexible
End Connection
ADS to Cast Iron/Plastic
Connection Style
ADS/Hancor x Cast Iron/PVC
Material of Construction
PVC
Max. Temp.
140 F
Max. Pressure
4.3 PSI
For Pipe Size
4 x 4 In
Band Material
300 Stainless Steel
Resistant To
Chemicals, Ultraviolet Rays, Fungus Growth, And Normal Sewer Gases
Certification
ASTM Certified
Part Number
1070-44
Supported Connections
Inches, Millimeters
Connection Types
Above Ground, Underground, ADS/Hancor connecting to Cast Iron, ADS/Hancor connecting to Plastic
