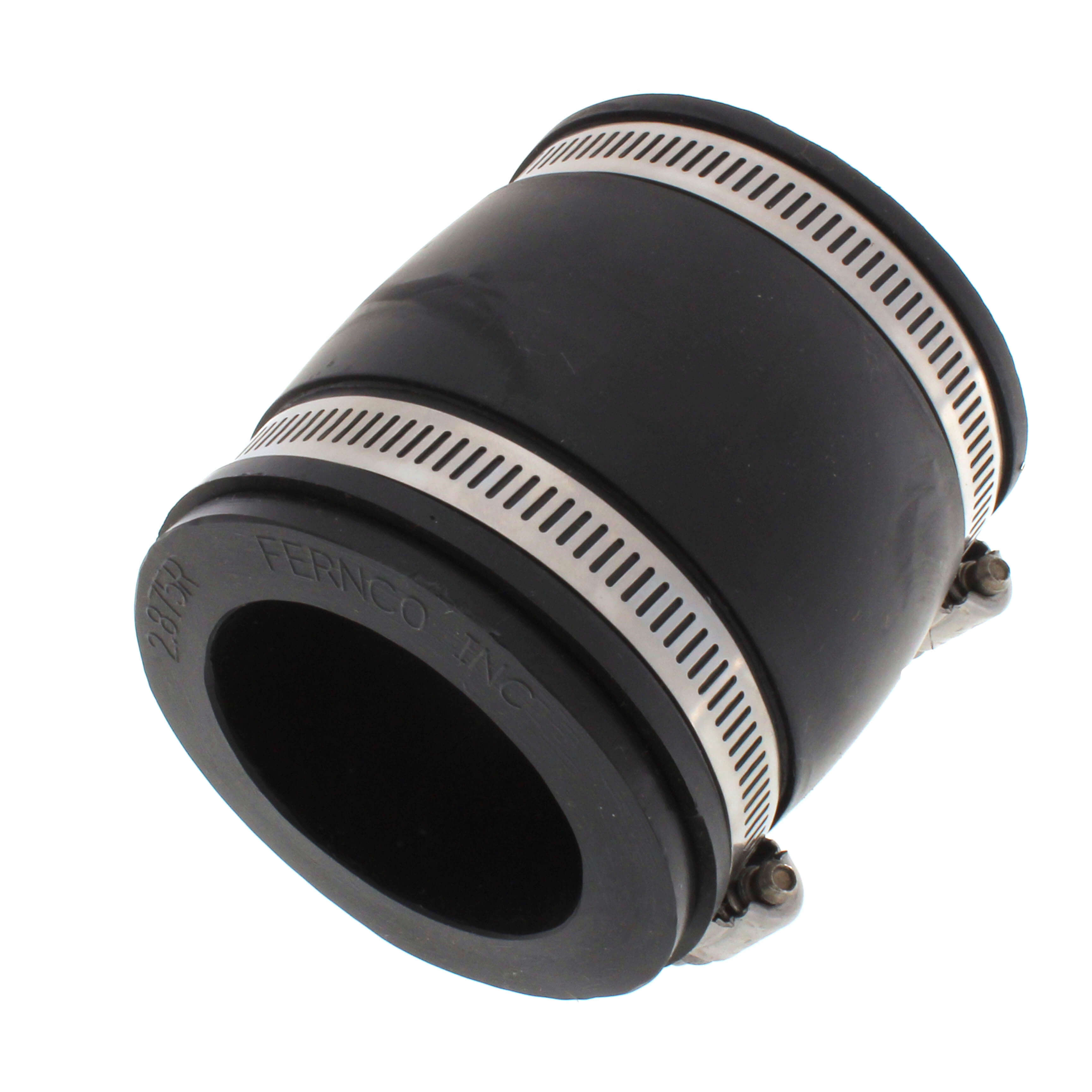

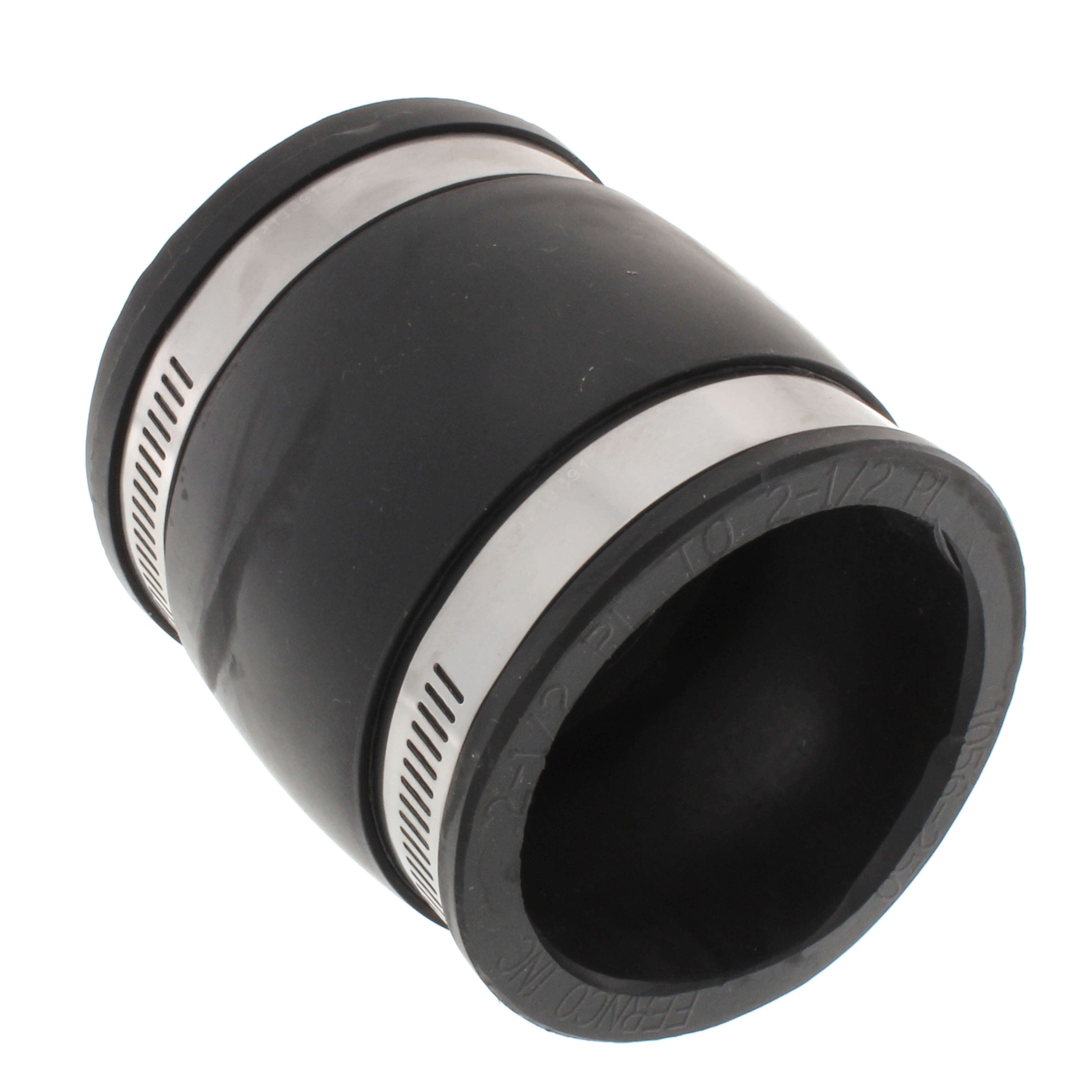

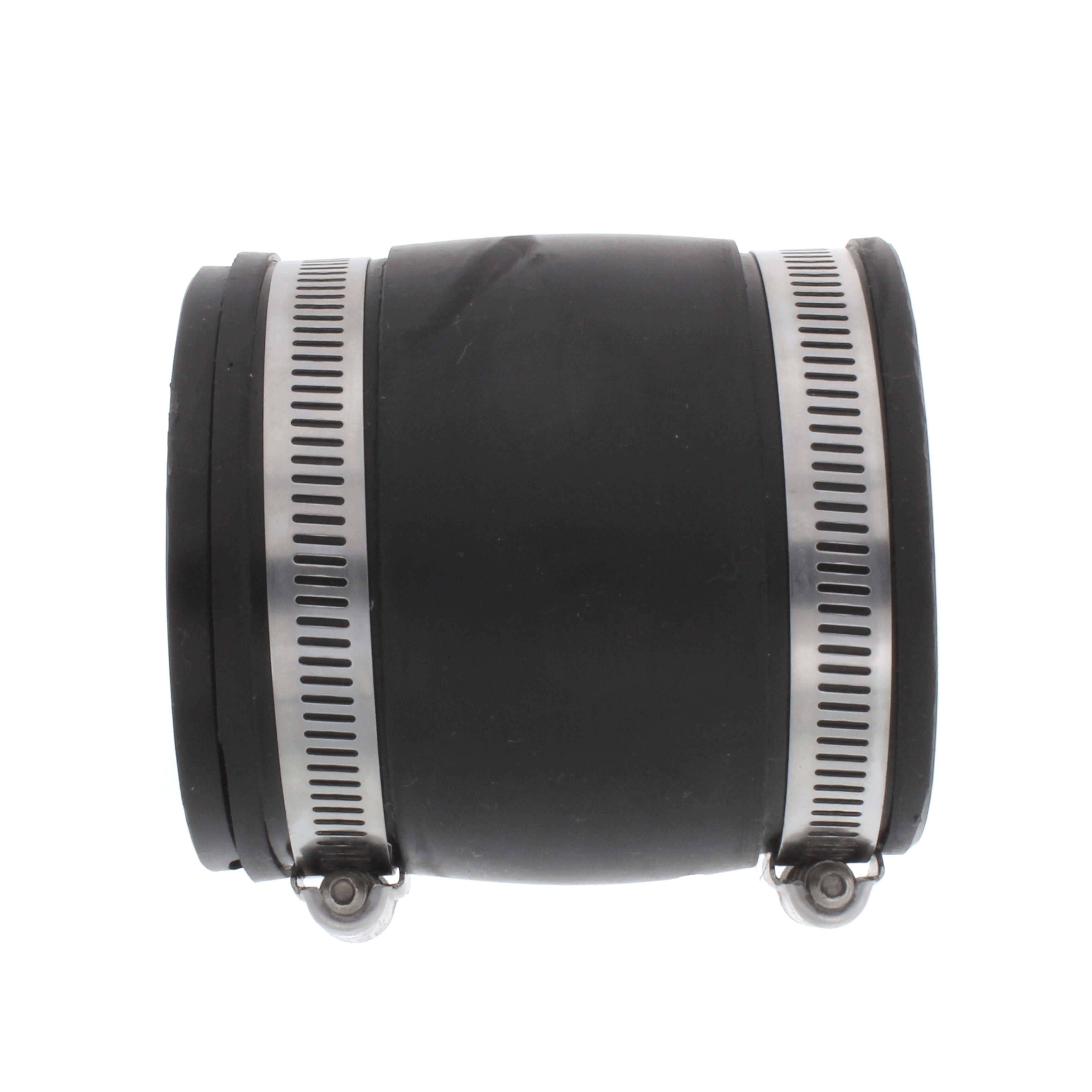

Fernco 1056-250/22 1056 series 2-1/2 x 2 in. cast iron and plastic flexible coupling

Product Description

The FERNCO 1056-250/22 flexible coupling connects 2-1/2 inch drain pipe to 2 inch cast iron or PVC. It is designed to transition between various pipe materials including cast iron, lead, plastic, and steel. This coupling is suitable for drain, sewer, waste, and vent piping applications. It features elastomeric polyvinyl chloride construction and 300-grade stainless steel bands, providing a leak-proof fitting.

• Connects 2-1/2 inch to 2 inch pipes, compatible with cast iron, PVC, steel, lead, and copper.
• Operates within a temperature range of -30°F to 140°F with a torque of 60 lb-in.
• Constructed from elastomeric polyvinyl chloride with 300 stainless steel clamps, resistant to chemicals and sewer gases.

Product Highlights

Flexible coupling for drain, sewer, waste, and vent piping, ensuring leak-proof connections across multiple pipe materials.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: 1056-250/22
• Country of Origin: USA

Technical Specifications

• Brand: Fernco
• MPN: 1056-250/22
• Part Number: F105625022
• Category: Pipe Fittings
• Subcategory: Flexible Pipe Fittings
• Sub-subcategory: Flexible Couplings
• Size: 2-1/2" x 2"
• Torque: 60 lb-in
• Product Type: Coupling
• Temperature Range: -30°F to 140°F
• Overall Length: 3.75"
• Overall Width: 2.88"
• Max Pressure: 4.3 PSI
• Standards Conformance: ASTM D 5926, C 1173 CSA B602
• Clamp Material: 300 stainless steel
• Pipe Compatibility: Plastic (PVC, ABS, CPVC, Smooth Wall HDPE), Cast Iron, Copper, Steel or Lead Pipe
• Service Life: 50-year
• Material: Elastomeric polyvinyl chloride
