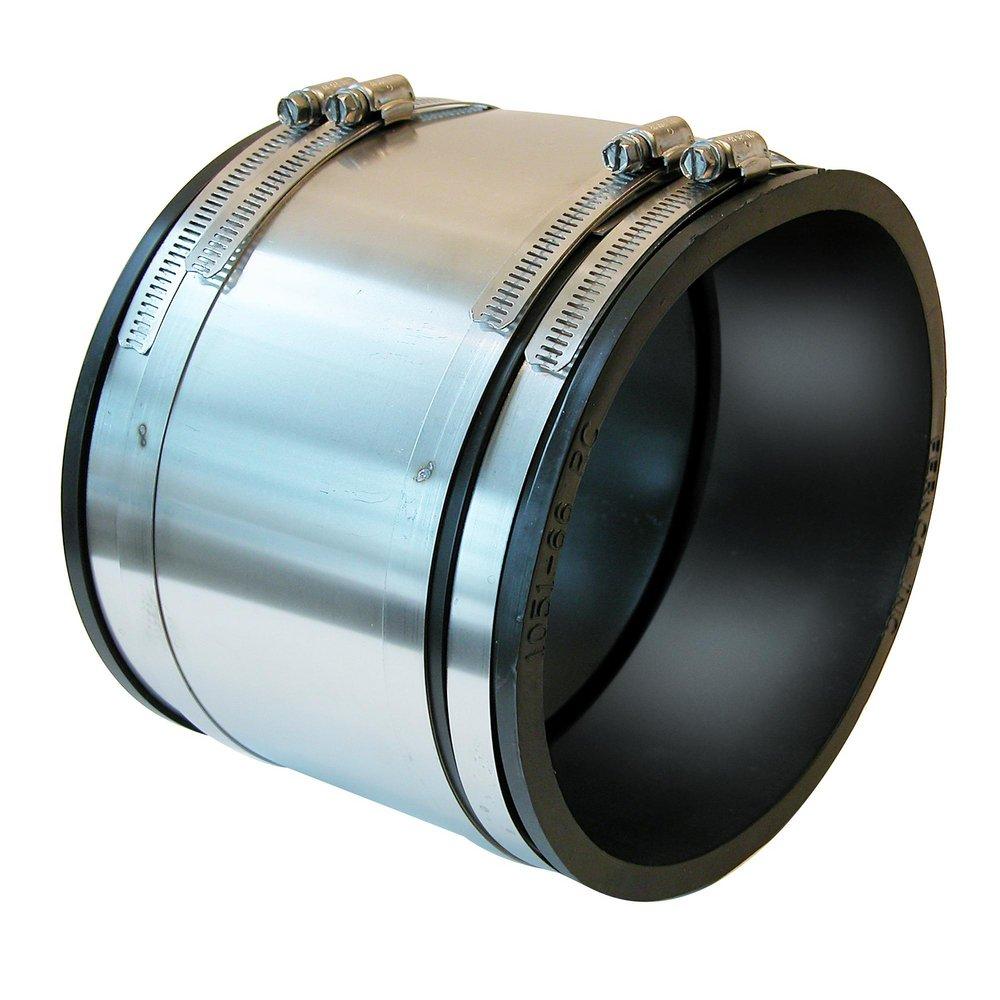

Fernco 1006-64RC 6 x 4 in. Concrete x Cast Iron and PVC Flexible Coupling

Product Description

The FERNCO 1006-64RC is a 6 x 4 in. flexible coupling designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment. Strong back couplings offer a 0.012" stainless steel shield and a molded in bushing. Connects concrete to cast iron, plastic, copper, steel or lead.

• Designed for resistance to heavy earth loads and shear forces
• Provides improved pipe alignment
• Connects concrete to cast iron, plastic, copper, steel or lead

Product Highlights

Flexible and shielded, this coupling is leak-proof, root-proof, and resistant to chemicals, ultraviolet rays, fungus growth, and sewer gases.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: 1006-64RC
• Country of Origin: United States

Technical Specifications

• End Style: Concrete x Cast Iron/Plastic
• Fitting/Connector Type: Coupling
• Length: 5.94 in
• Material: Flexible PVC
• Nominal Size: 6 x 4 in
• Pressure Rating: 4.3 psi Tested
• Series: 1006 RC
• Temperature Rating: -30 to 140 deg F
• Type: Strong Back Flexible
• Manufacturer: FERNCO
• Dimension A - inches: 7.58 in
• Dimension B - inches: 4.38 in
• Dimension C - inches: 5.94 in
• Connection Types: Concrete connecting to Plastic, Concrete connecting to Cast Iron
• Underground: Yes
• Item model number: 1006-64RC
• Item Package Quantity: 1
• Measurement System: inch, metric
• Batteries Required?: No
• Gasket Manufactured to meet the material requirements of: CSA B602 - mechanical couplings for drain, waste, vent pipe and sewer pipe ASTM D 5926 - Standard specification for poly vinyl chloride (PVC) gaskets for drain, waste, and vent (DWV), sewer, sanitary, and storm plumbing systems ASTM C 1173 - Standard specification for flexible transition couplings for underground piping systems
• Hardness, Shore"A", Inst. -+5: 65
• Tensile Strength, Min. psi: 1000
• Elongation at Rupture, Min. %: 250
• Tear Strength, Min: 150 lb/in.
• Brittleness Temperature: -40°F
• Clamps Manufactured to the requirements of: CSA B602
• Clamp Housing: 301 Stainless Steel
• Clamp Band: 301 Stainless Steel
• Clamp Screw: 305 Stainless Steel
• Installation torque: 60" lbs
• Shear Ring: .012" Thick, 300 Series Stainless Steel
• Width manufactured according to coupling width: (1.50", 2.13", or 4")
• Compatible Brand: Fernco
• Model: 1006-64RC
• Compatible Model: 1006-64RC
• Manufacturer Part Number: 1006-64RC
