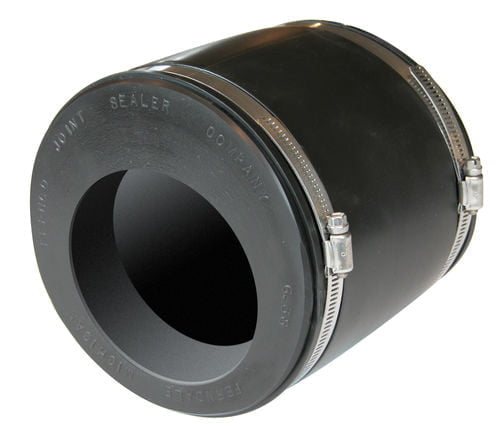

Fernco 1002-44EB 4 inches x 4 inches Eccentric Flexible Coupling (Clay to Cast Iron or PVC)

Product Description

The FERNCO 1002-44EB is a 4" x 4" Eccentric Flexible Coupling designed for connecting Clay to Cast Iron or PVC pipes. It aligns the inside wall of the two pipes to create an obstruction-free flow, maintaining a continuous flowline in critical grade conditions. Made of an elastomeric compound that meets requirements of ASTM D5926.

• Aligns the inside wall of the 2 pipes
• Provides an obstruction free flow
• 300 series stainless steel clamps
• Connects 6" Clay to 4" Cast Iron or Plastic

Product Highlights

This flexible coupling ensures a secure and reliable connection between dissimilar pipes, preventing back-up and maintaining optimal flow.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: 1002-44EB

Technical Specifications

• End Style: Clay x Cast Iron/Plastic
• Fitting/Connector Type: Coupling
• Material: PVC
• Nominal Size: 4 in
• Pressure Rating: 4.3 psi Tested
• Series: 1002 EB
• Temperature Rating: 140 deg F
• Type: Flexible
• Manufacturer: FERNCO
• Size: 4" x 4"
• Torque: 60 lb-in
• Max Temp (F): 140°F
• Min Temp (F): -30°F
• Product Type: Coupling
• Temperature Range (F): -30°F to 140°F
• Part Number: 1002-44EB
• Connection Types: Clay connecting to Cast Iron, Clay connecting to Lead, Clay connecting to Plastic
• Length: 5.88"
• Width: 5.88"
• Height: 3.96"
