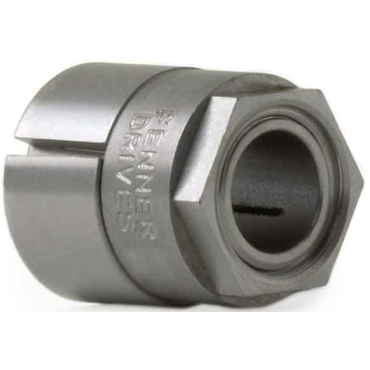

Fenner Drives TTQM1223 Trantorque Mini 12mm Keyless Bushing

Product Description

The Fenner Drives TTQM1223 is a Trantorque Mini keyless bushing designed for small shaft applications. This component features a twelve millimeter bore diameter and twenty-three millimeter outside diameter, providing a robust solution for effective torque transmission.

• Self-centering style for better alignment
• Internal locking mechanism for secure fit
• Zero backlash design minimizes wear

Product Highlights

The Trantorque Mini is suitable for high torque and thrust applications. It allows for easy installation and adjustment.

Product Information

Standard Information

• Brand: Fenner Drives
• MPN: TTQM1223

Technical Specifications

• Bore Diameter: 12 mm
• Outside Diameter: 23 mm
• Overall Length: 26 mm
• Transmissible Torque: 90 N-m
• Transmissible Thrust: 14 kN
• Hub Contact Pressure: 136 N/sq-mm
• Weight: 0.11 LB
• Material: Steel
• Installation Torque: 32 lb/ft
• Locking Type: Internal Locking
• Series: Mini
• Standard Compliance: RoHS compliant
