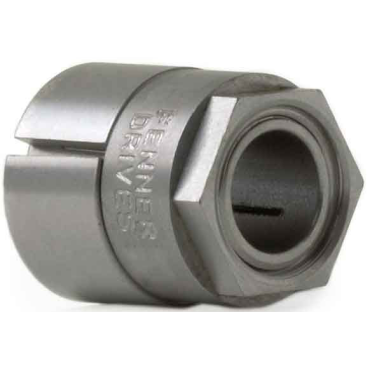

Fenner Drives TTQM1023 Trantorque Mini Keyless Bushing 10 mm

Product Description

Fenner Drives Trantorque Mini TTQM1023 is a keyless bushing with a ten millimeter bore and twenty-three millimeter outside diameter. This device provides a zero backlash frictional connection, which is both efficient and durable. Ideal for small shaft applications, it simplifies installation and repositioning.

• Self-centering style for precise alignment.
• Internal locking mechanism for secure attachment.
• Suitable for high torque and thrust loads.

Product Highlights

This bushing is designed to accommodate axial and radial loads while maintaining excellent performance in demanding applications.

Product Information

Standard Information

• Brand: Fenner Drives
• MPN: TTQM1023

Technical Specifications

• Bore Diameter: 10 mm
• Outside Diameter: 23 mm
• Torque Capability: 75 N-m
• Thrust Capacity: 14 kN
• Overall Length: 26 mm
• Material: Steel
• Installation Torque: 32 lb/ft
• Hub Contact Pressure: 123 N/mm²
• Standard Compliance: RoHS compliant
