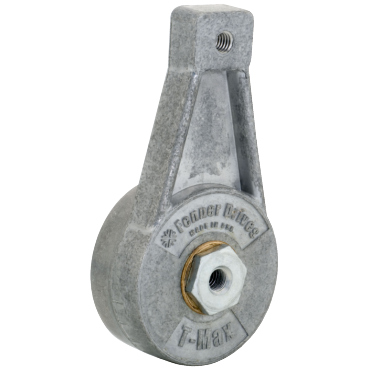

Fenner Drives RT1003 RT1000 Series Rotary Tensioner

Product Description

Fenner Drives RT1003 is a rotary tensioner suitable for various applications including idler pulleys and sprockets. This model is built with durable die-cast aluminum and is designed to handle spring forces up to forty-eight pounds.

• Arm height is three and one-half inches.
• Spring forces of sixteen pounds at fifteen degrees, twenty-three pounds at thirty degrees, and thirty pounds at forty-five degrees.
• Compatible with a three-eighths - sixteen shaft type.

Product Highlights

This rotary tensioner automatically adjusts to take up slack, preventing over-tensioning. Its rugged design allows for easier installation with a single bolt feature. The built-in spring mechanism absorbs momentary overloads and reduces vibration.

Product Information

Standard Information

• Arm Height: 3.5 inches
• Shaft Type: 3/8 - 16

Technical Specifications

• Force @ Rotation: 16 lb @ 15 °, 23 lb @ 30 °, 30 lb @ 45 °
• Housing Length: 5.31 inches
• Weight: 1.0 lb
• EAN or UPC: 662345005814
