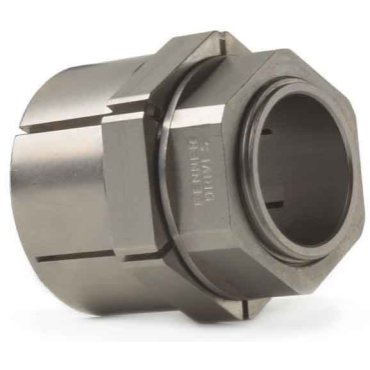

Fenner Drives 6202835UP Trantorque GT 30mm Trantorque Keyless Bushing

Product Description

Fenner Drives presents the 6202835UP Trantorque GT, a keyless bushing designed for efficient power transmission. This product features an inner diameter of thirty millimeters and an outer diameter of fifty-one millimeters. It is effective in applications requiring secure locking without the use of traditional keyways.

• Self-centering design allows for easy alignment.
• Minimal components simplify installation.
• Mechanical shrink fit offers resistance to shock and torque reversal.

Product Highlights

This bushing allows for greater torque transmission due to its design, eliminating the need for keyways.

Product Information

Standard Information

• Brand: Fenner Drives
• MPN: 6202835UP

Technical Specifications

• Bore Diameter: 30 mm
• Outside Diameter: 51 mm
• Material: Steel
• Torque Transmission: 465 N-m
• Thrust: 31 kN
• Hub Contact Pressure: 57 N/mm²
• Installation Torque: 166 lb/ft
• Temperature Rating: -30 to 400 degrees F
