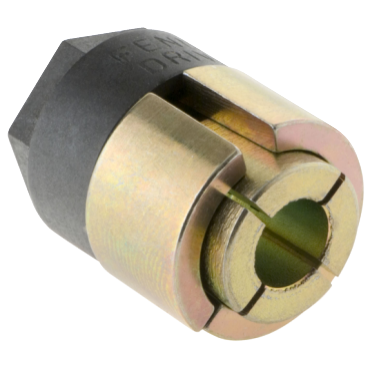

Fenner Drives 6202690 Trantorque GT Keyless Bushing 9mm ID 19mm OD 26 N-m

Product Description

Fenner Drives 6202690 Trantorque GT is a keyless bushing designed for efficient power transmission. It features a bore diameter of nine millimeters and an outside diameter of nineteen millimeters. This bushing has a torque capacity of twenty-six N-m, making it suitable for a wide range of applications in mechanical power transmission.

• Fewer components for easier installation
• No keyway allows for greater torque transmission
• Unique single-nut design permits infinite positioning

Product Highlights

This product provides a mechanical shrink fit that resists shock and torque reversal, making it ideal for repairing worn connections over empty keyways. The installation does not require holding the shaft, simplifying the assembly process.

Product Information

Standard Information

• Type: Mini Series
• Material: Steel

Technical Specifications

• Bore Diameter: 9 mm
• Outside Diameter: 19 mm
• Overall Length: 22 mm
• Transmissible Torque: 26 N-m
• Mountable Thickness: 11 mm
• Weight: 0.1 LB
• EAN or UPC: 662345004459
