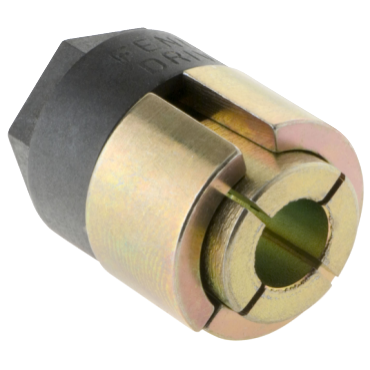

Fenner Drives 6202380 Trantorque GT 1-7/16 Inch Keyless Bushing

Product Description

The Fenner Drives Trantorque GT, MPN 6202380, is a keyless bushing designed for effective power transmission. This unit has a bore diameter of 1 7/16 inches and an outside diameter of 2 3/8 inches, handling a torque of 6700 inch-pounds. With fewer components, installation becomes easier, and the absence of a keyway allows the shaft to transmit higher torque effectively. Its mechanical shrink fit resists shocks and torque reversals.

• Designed for easy installation
• Transmits high torque without a keyway
• Resistant to shock and torque reversal

Product Highlights

This product eliminates the need for holding the shaft or blocking the machine while applying installation torque. The unique single-nut positive lock and release action allows for infinite positioning. It is compatible with various applications and can be used to repair worn or damaged connections directly over empty keyways.

Product Information

Standard Information

• Brand: Fenner Drives
• MPN: 6202380

Technical Specifications

• Mountable Thickness: 1 1/2 inches
• Outside Diameter: 2.375 inches
• Torque: 6700 inch-pounds
• Inside Diameter: 1 7/16 inches
• Type: Standard Series
• Transmitted Axial Force: 10000 pounds/inch
• Inch/Metric: Inch
• Thickness: 2.75 inches
• Weight: 1.85 pounds
• EAN or UPC: 662345002967
