Fenner Drives 6202350 Trantorque GT 1-5/16 Power 2-3/8 Replacement MPN

Product Description

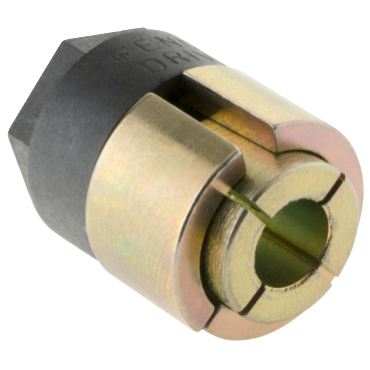

Fenner Drives Trantorque GT 6202350 is a self-locking ring element designed for effective power transmission. This keyless bushing features a bore diameter of one and five-sixteenth inches and an outside diameter of two and three-eighths inches. It provides a torque capacity of six thousand two hundred inch-pounds, making it suitable for various mechanical applications.

• Minimal components for easy installation
• Mechanical shrink fit for shock resistance
• Single-nut mechanism for precise positioning

Product Highlights

This product eliminates the need for traditional keyways, allowing for enhanced torque transmission. It can be applied directly over worn keyways, ensuring reliable connections.

Product Information

Standard Information

• Brand: Fenner Drives
• MPN: 6202350

Technical Specifications

• Bore Diameter: 1 5/16 inches
• Outside Diameter: 2.375 inches
• Overall Length: 2.75 inches
• Torque Capacity: 6200 inch-pounds
• Transmitted Axial Force: 9000 pounds per inch
• Hub Contact Pressure: 6500 psi
• Material: Steel
• Temperature Rating: -30 to 400 degrees Fahrenheit
