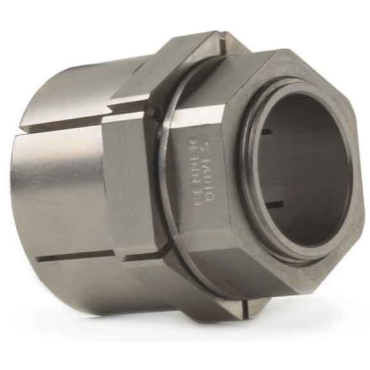

Fenner Drives 6202320UP Trantorque GT 1-1/4 Trantorque Keyless Bushing

Product Description

The Fenner Drives 6202320UP is a Trantorque GT keyless bushing designed for efficient installation and operation. This product features a self-centering style and an internal locking mechanism. It is suitable for various applications requiring a reliable locking device.

• Self-Centering Style
• 1 1/4 inches Inside Diameter
• 2 inches Outside Diameter

Product Highlights

This product is designed to simplify installation with fewer components and no keyway, allowing the shaft to transmit greater torque. The mechanical shrink fit feature resists shock and torque reversal, making it effective for repairs over worn or damaged keyways.

Product Information

Standard Information

• Brand: Fenner Drives
• MPN: 6202320UP

Technical Specifications

• Locking Type: Internal Locking
• Material: Steel
• I.D.: 1 1/4 inches
• O.D.: 2 inches
• Torque Capacity: 392 ft-lb
• Thrust Capacity: 7014 lbf
• Install Torque: 167 lb/ft
• Hub Contact Pressure: 8313 psi
• Weight: 1.1 lbs
