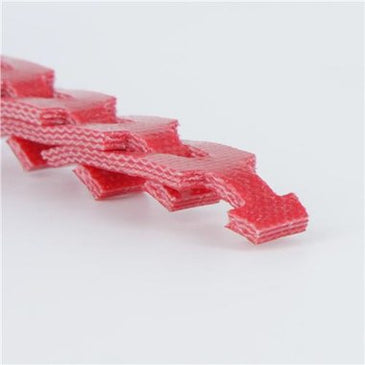

Fenner Drives 410030 Link V-belt 0.5 Inch Polyurethane

Product Description

The FENNER DRIVES 410030 is a Power Twist A Link V-Belt constructed from a composite polyurethane and polyester material. This link-style belt is designed to transmit rotational power in drive systems where conventional endless belts are difficult or impractical to install. The modular link construction allows the belt to be assembled or shortened on-site without removing drive components from the shaft. With a top width of 0.5 inches and a thickness of 0.5 inches, it fits standard A-section V-belt sheaves. HVAC technicians, equipment mechanics, and industrial service professionals commonly install this type of belt on fans, blowers, compressors, and general power transmission drives.

This link V-belt is suited for residential and light commercial HVAC equipment, agricultural machinery, woodworking tools, conveyor systems, and other belt-driven applications where an A-section V-belt profile is required. The adjustable link design makes it especially useful in field service situations where a replacement endless belt is not immediately available or where belt length adjustment is needed during installation. Compatible systems include any drive configuration accepting a standard A-section V-belt groove profile.

Key Features

• Modular link construction allows on-site length adjustment without removing shaft-mounted components
• Composite polyurethane and polyester construction resists oil, heat, and mechanical fatigue
• A-section profile with 0.5 inch top width fits standard A-section V-belt sheaves
• 0.5 inch thickness maintains proper sheave groove contact for efficient power transfer
• Eliminates the need to stock multiple fixed-length belts for similar drive applications

Compatibility

Designed as an OEM-style replacement or field-service alternative for drive systems requiring a standard A-section V-belt profile.

Installation Notes

Link V-belts are typically installed and serviced by HVAC technicians, equipment mechanics, or electricians working on motor-driven equipment. Always de-energize and lock out the drive system before removing or installing any belt. Link belts are assembled by connecting individual links to the required length before seating the belt into the sheave grooves. Verify sheave alignment and proper belt tension after installation to avoid premature wear.

Technical Specifications

• Construction: Composite Polyurethane and Polyester
• Product Type: Link V-Belt
• Top Width: 0.5 inches
• Thickness: 0.5 inches
• Length: 10M

Standard Information

• Brand: FENNER DRIVES
• Manufacturer Part Number: 410030
