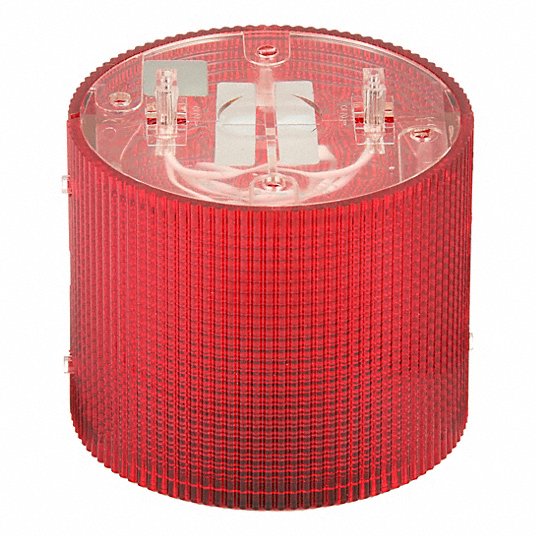

Federal Signal LSL-120R Tower Light Module 120V AC

Product Description

The Federal Signal LSL-120R tower light module can produce different light patterns to indicate unique situations or conditions. It features a polycarbonate housing and lens, and an incandescent light source. This light module is suitable for indoor locations.

• Flashing/Steady light operating mode
• Incandescent light source
• Polycarbonate housing and lens
• Suitable for indoor locations

Product Highlights

The LSL-120R is a 120V AC tower light module with flashing and steady modes, ideal for indoor status indication.

Product Information

Standard Information

• Brand: FEDERAL SIGNA
• Manufacturer Part Number: LSL-120R
• Country of Origin: USA

Technical Specifications

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LSL-120R
• Housing Material: Polycarbonate
• Light Source: Incandescent
• Lens Shape: Cylinder
• Light Operating Mode: Flashing; Steady
• Operating Voltage: 120V AC
• Operating Current: 0.130 A
• Lens Material: Polycarbonate
• Lens Color: Red
• Lens Design: Fresnel
• Lifespan: 2,500 hr
• Overall Diameter: 3-15/16 in
• Overall Height: 3-1/4 in
• Includes: Incandescent Lamp; Split Lens
• NEMA Rating: NEMA 1
• For Location: Indoor
• Flashes per Minute: 70
• Standards: CSA Certified; cUL Listed; UL Listed
• Operating Temperature - Minimum: 0 °F
• Operating Temperature - Maximum: 120 °F
• Compatible with Series: LSL
