Federal Signal LSL-120G Litestak status indicator light 120 VAC 0.13 Amp (3.25 H x 3.93 W x 3.93 D in)

Product Description

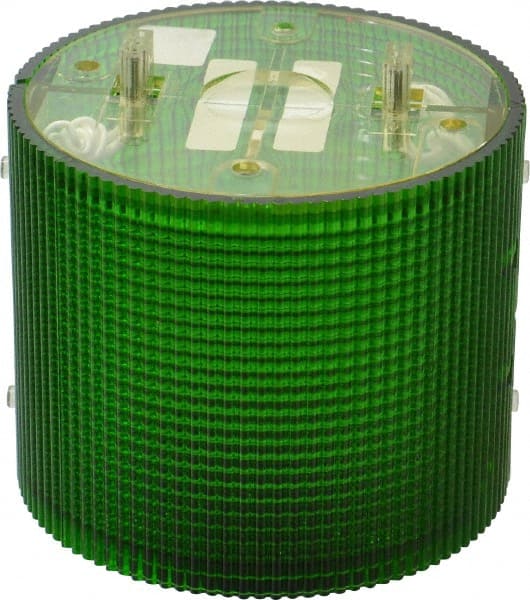

Federal Signal LSL-120G is a Litestak incandescent status indicator light module rated for 120 VAC and 130 mA. The module produces a 360 degree visual signal through an impact-resistant polycarbonate Fresnel lens and can operate in steady or flashing modes. It mounts to a surface or a 3/4-inch NPT pipe and is intended for indoor use with a Type 1/NEMA 1 enclosure. Lamp life is approximately 2,500 hours and the unit is UL, cUL and CSA certified.

• Voltage rating 120 VAC; operating current 130 mA (0.13 A); nominal power 15 W.
• Impact-resistant polycarbonate Fresnel lens with 360 degree coverage and snap-apart halves for maintenance.
• Surface mount or integrated 3/4-inch NPT pipe mount; Type 1/NEMA 1 enclosure; operating temperature 0 to 120 °F; UL, cUL, CSA certified.

Product Highlights

360 degree Fresnel polycarbonate lens; selectable flash or steady operation; Type 1 indoor NEMA 1 enclosure.

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LSL-120G
• Country of Origin: United States

Technical Specifications

• Manufacturer: Federal Signal Corporation
• Brand: Federal Signal
• Manufacturer Part Number: LSL-120G
• Series: Litestak (LSL)
• Voltage Rating: 120 VAC @ 60 Hz
• Operating Current: 130 mA (0.13 A)
• Wattage: 15 W
• Lamp Type: Incandescent
• Lamp Life: 2,500 hr
• Lens Material: Polycarbonate
• Lens Type: Fresnel
• Lens Color: Green
• Light Output: 123 cd
• Mounting Type: Surface mount or integrated 3/4-inch NPT pipe mount
• Dimensions: 3.25 H x 3.93 W x 3.93 D in
• Diameter: 3.93 in
• Height: 3.25 in
• Weight: 0.5 lb
• Enclosure Rating: Type 1 (NEMA 1)
• Operating Temperature: 0 to 120 deg F
• Operation Mode: Selectable flash or steady-burn
• Terminal Type: Wire
• Certifications: UL Listed, cUL Listed, CSA Certified
• Country of Origin: United States
• GTIN: 00782979268208
• UPC: 782979268208
