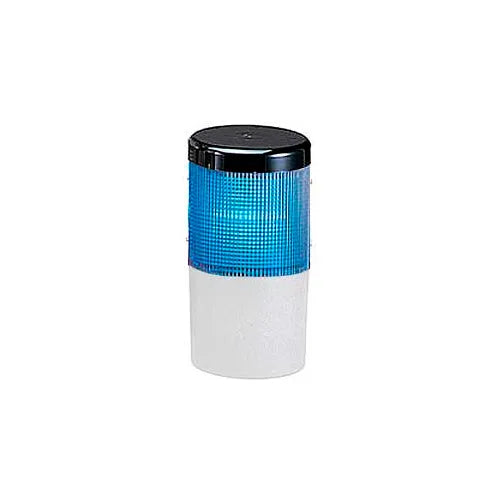

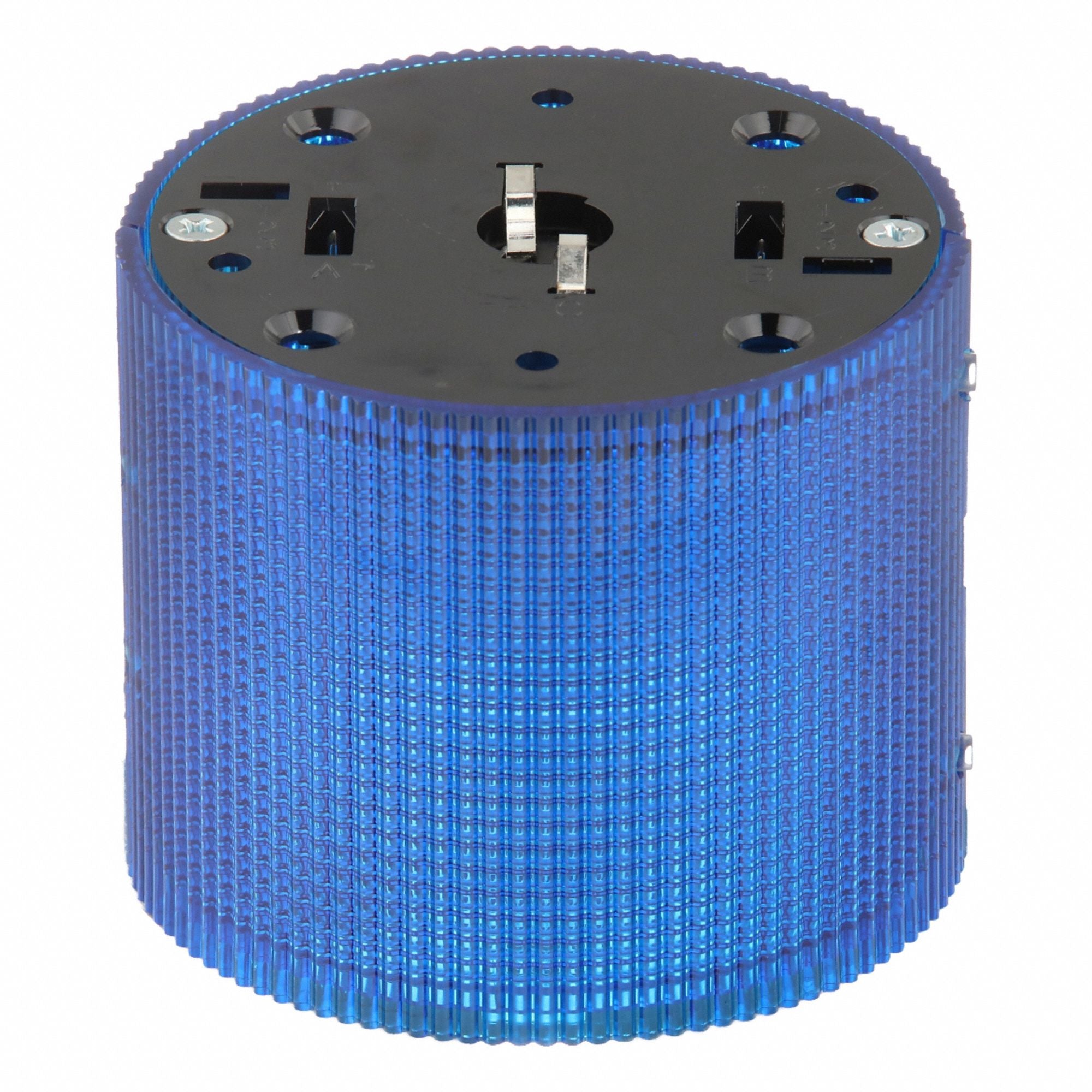

Federal Signal LSL-120B Litestak Status Indicator Light Module 120 VAC (3.25 H x 3.93 W x 3.93 D in)

Product Description

Federal Signal LSL-120B is a Litestak incandescent status indicator light module (MPN LSL-120B) designed for indoor 360-degree visual signaling. It operates at 120 VAC with an operating current of 0.13 A, uses a polycarbonate Fresnel split lens, and accepts surface or integrated 3/4-inch NPT pipe mounting. The unit has a Type 1 enclosure, UL/cUL/CSA certifications, and an approximate lamp life of 2,500 hours.

• Input: 120 VAC @ 50/60 Hz; operating current 0.13 A (130 mA); incandescent lamp
• 360-degree polycarbonate Fresnel split lens with snap-open halves for maintenance; diameter 3.93 in; dimensions 3.25 H x 3.93 W x 3.93 D in
• Surface mount or integrated 3/4-inch NPT pipe mount; Type 1 (NEMA 1) indoor enclosure; UL Listed, cUL Listed, CSA Certified

Product Highlights

Incandescent Litestak light module for indoor status signaling; 120 VAC, 0.13 A, ~2,500 hr lamp life; 360-degree polycarbonate Fresnel lens; surface or 3/4-inch NPT mounting; UL/cUL/CSA certified.

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LSL-120B
• Country of Origin: United States

Technical Specifications

• Manufacturer: Federal Signal
• Brand: Federal Signal
• Manufacturer Part Number (MPN): LSL-120B
• Series: Litestak
• Type: Status indicator light module
• Input Voltage: 120 VAC @ 50/60 Hz (some sources list 120-240 VAC — primary model rated for 120 VAC)
• Operating Current: 0.13 A (130 mA)
• Wattage: 15 W
• Lamp Type: Incandescent
• Lamp Life: 2,500 hr (approx.)
• Light Output (Candela): 123 cd
• Lens Material: Polycarbonate
• Lens Design: Fresnel split/snap-open halves
• Dimensions: 3.25 H x 3.93 W x 3.93 D in
• Diameter: 3.93 in
• Mounting Type: Surface mount or integrated 3/4-inch NPT pipe mount
• Enclosure Rating: Type 1 (NEMA 1)
• Operating Temperature: 0 to 120 °F
• Certifications: UL Listed; cUL Listed; CSA Certified
• Country of Origin: United States
• Weight: 0.5 lb
• Compatible Series: LSL
• Terminal Type: Wire
