Federal Signal LSBS Litestak Low Profile Base 24-240 VAC/VDC (3.93 in Dia x 3.3 in H)

Product Description

Federal Signal LSBS is a low-profile Litestak stack light base that operates on 24 to 240 VAC/VDC and is intended for surface mounting. The base measures 3.93 in diameter by 3.3 in height, is polycarbonate construction with a NEMA 1/IP41 enclosure rating, and is UL/cUL listed and CSA certified. It includes a cap kit and supports Litestak stack light modules for status indication in indoor control and signaling applications.

• Wide input voltage: 24 to 240 VAC/VDC; compatible with Litestak stack light modules
• Compact low-profile design: 3.93 in diameter x 3.3 in height; surface mount
• Certifications and accessories: UL/cUL listed, CSA certified; includes cap kit; polycarbonate housing with NEMA 1/IP41 rating

Product Highlights

Low-profile Litestak stack light base, 24-240 VAC/VDC, surface mount, UL/cUL and CSA certified

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LSBS
• Country of Origin: United States

Technical Specifications

• MPN: LSBS
• Brand: Federal Signal
• Sub-Brand: Litestak
• Product Type: Low profile stack light base
• Input Voltage: 24 to 240 VAC/VDC
• Dimensions: 3.93 in Dia x 3.3 in H
• Mounting Type: Surface mount
• Material: Polycarbonate
• Enclosure Rating: NEMA 1, IP41
• Certifications: UL/cUL Listed; CSA Certified
• Compatible With: Litestak stack light modules; LSL series

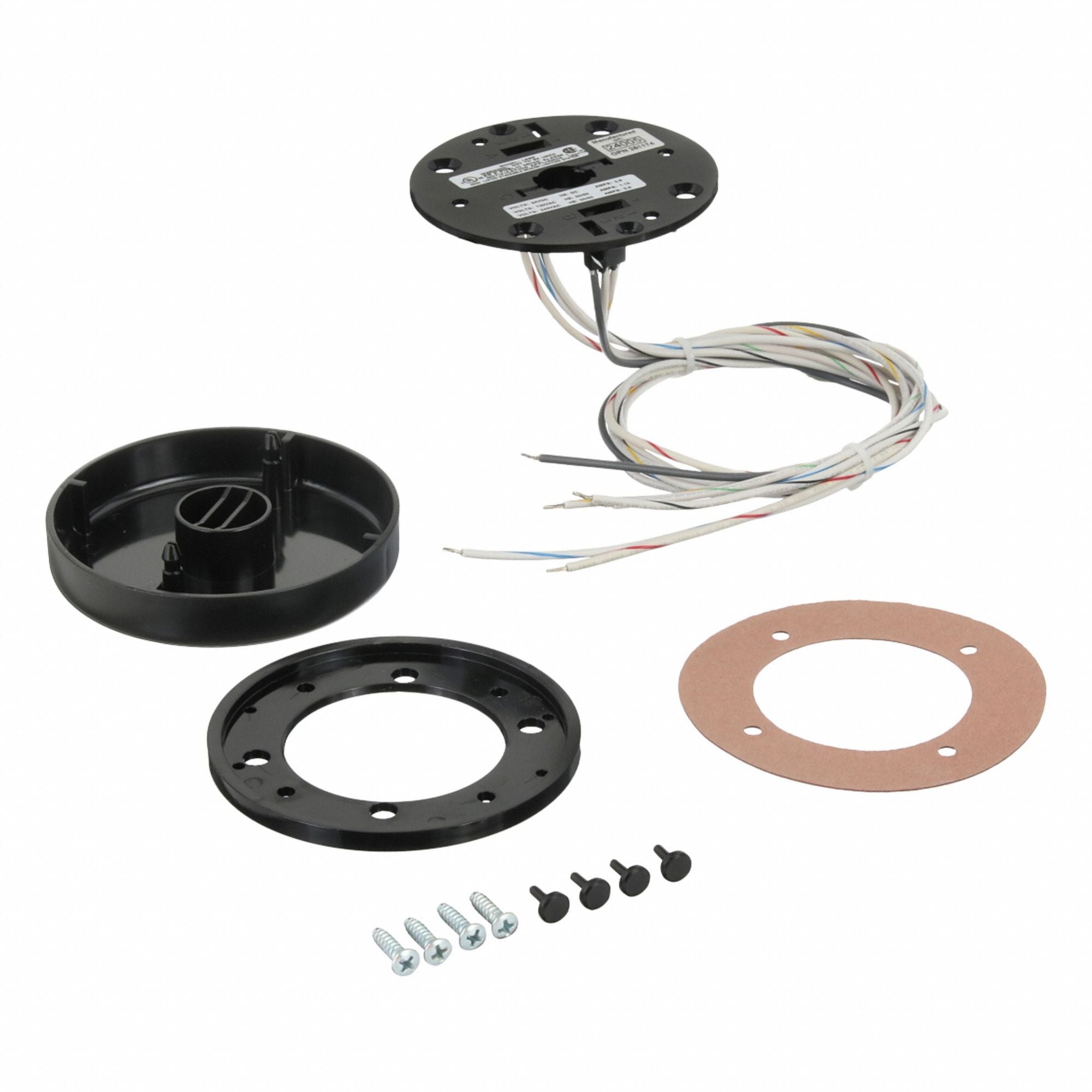

• Includes: Cap kit; ring and gasket
• Operating Temperature: 0 to 120 F
• Supported Light Module Types: Flashing incandescent; steady incandescent; flashing LED; steady LED
• Audible Device Options: Horn 69-79 dB at 1 m; piezoelectric horn 87 dB at 1 m
• Country of Origin: United States
• UPC: 782979268031
• GTIN: 00782979268031
