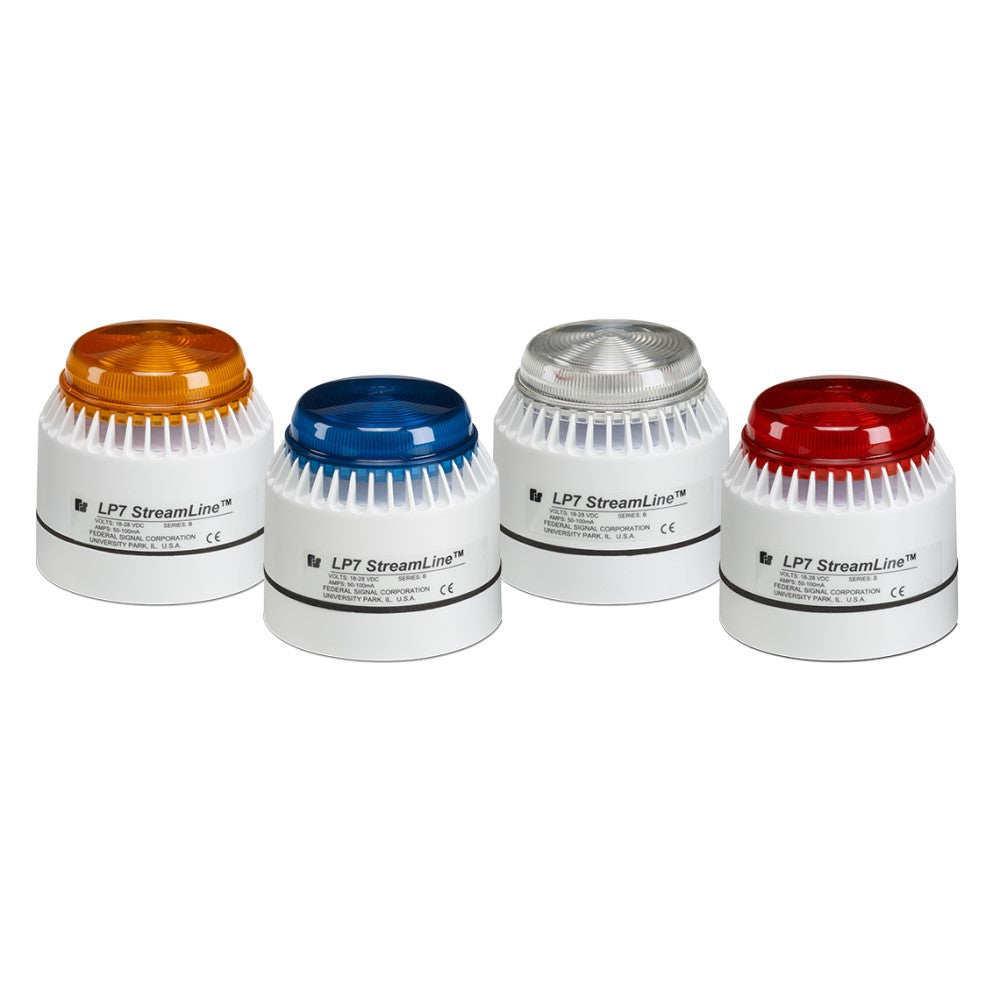

Federal Signal LP7-18-30C FSG Audible/Visual Signal Combination Heavy Duty Low Profile

Product Description

The Federal Signal LP7-18-30C is a combination sounder and strobe that operates between 18 and 28 VDC. This device integrates a xenon strobe for visual alerts, with a sound output ranging from 82 to 100 dB. It is suitable for both indoor and outdoor applications and features a surface mount installation.

• Operating Voltage: 18 to 28 VDC
• Sound Output: 82 to 100 dB
• Includes Clear Lens and Strobe Tube Lamp

Product Highlights

This model is designed for use in environments where audio-visual alerts are necessary. Its low profile and heavy-duty construction allow for reliable operation in varied conditions.

Product Information

Standard Information

• Brand: Federal Signal
• MPN: LP7-18-30C

Technical Specifications

• Series: LP7
• Voltage Rating: 18 to 28 VDC
• Amperage Rating: 0.068 A
• Sound Level: 82 to 100 dB
• Light Output: 0.7 J
• Dimensions: 3.66 in W x 3.66 in D x 3.5 in H
• Material: ABS Plastic
• Average Life: 10,000 hr
• Flash Rate: 60 fpm
• NEMA Rating: NEMA 4X
• Temperature Rating: 14 to 131 deg F
