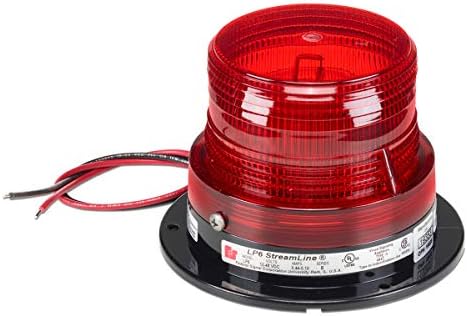

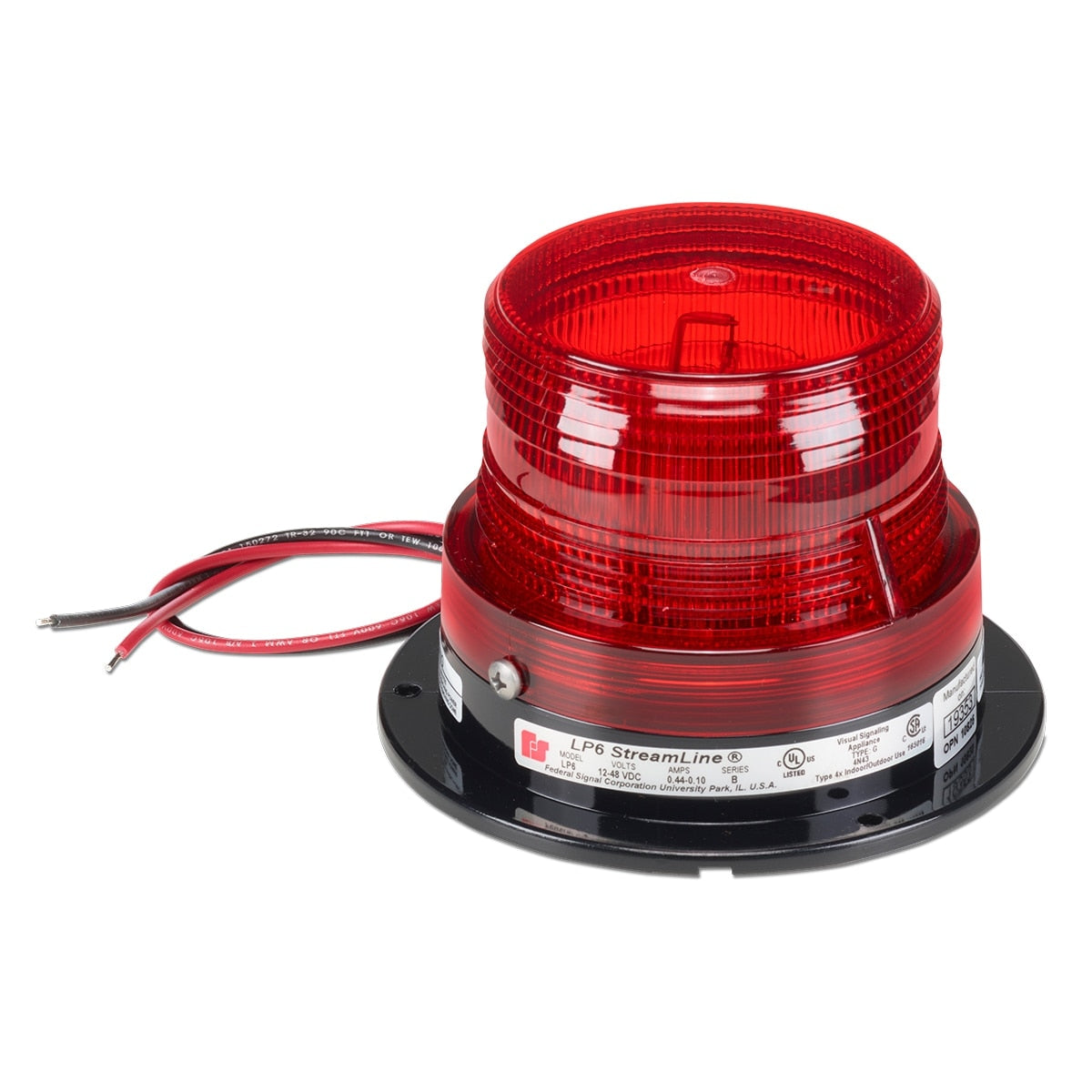

Federal Signal LP6-120R StreamLine low profile mini strobe 120 VAC (5.06 x 5.06 x 3.63 in) LP6-120R

Product Description

Federal Signal LP6-120R is a StreamLine low-profile mini strobe light designed for space-critical signaling applications and configured for 120 VAC operation. The unit uses a two-joule power supply with a strobe tube light source mounted on a vibration-resistant circuit board, and a screw-on polycarbonate dome for access and service. It is surface-mountable with a NEMA 4X enclosure and an operating temperature range from -31 to 150 degrees F.

• 120 VAC operation with two-joule power supply; typical current draw 0.1 A and strobe tube light source
• 175,000 cd nominal light output, selectable flash rate 65 to 95 flashes per minute, average lamp life ~7,000 hours
• Polycarbonate screw-on dome and housing, surface mount, NEMA 4X / Type 4X enclosure, UL/cUL and CSA certified

Product Highlights

Compact 5 in diameter x 3.63 in high strobe for indoor/outdoor signaling with 2 J energy, 65–95 fpm flash rate, and NEMA 4X protection.

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LP6-120R
• Country of Origin: United States

Technical Specifications

• Brand: Federal Signal
• Manufacturer Part Number: LP6-120R
• Series: LP6 (StreamLine)
• Type: Low Profile Mini Strobe
• Input Voltage: 120 VAC
• Power Supply Energy: 2 joules
• Operating Current: 0.1 A (typical at 120 VAC)
• Light Source: Strobe tube (xenon)
• Light Output: 175,000 cd (nominal)
• Flash Rate: 65 to 95 flashes per minute
• Average Lamp Life: 7000 hr (typical)
• Dimensions: 5.06 in W x 5.06 in D x 3.63 in H
• Diameter: 5 in (approx)
• Height: 3.63 in
• Mounting Type: Surface mount
• Mounting Orientation: Dome-up
• Lens Type: Screw-on dome
• Housing Material: Polycarbonate
• Lens Material: Polycarbonate
• NEMA/Enclosure Rating: NEMA 4X (Type 4X, IP65)
• Operating Temperature: -31 to 150 deg F
• Certifications: UL Listed; cUL Listed; CSA Certified
• Features Included: Conformal-coated PCB; vibration-resistant circuit board; wiring harness and mounting hardware; corner and wall bracket fixtures
• Made In: United States
