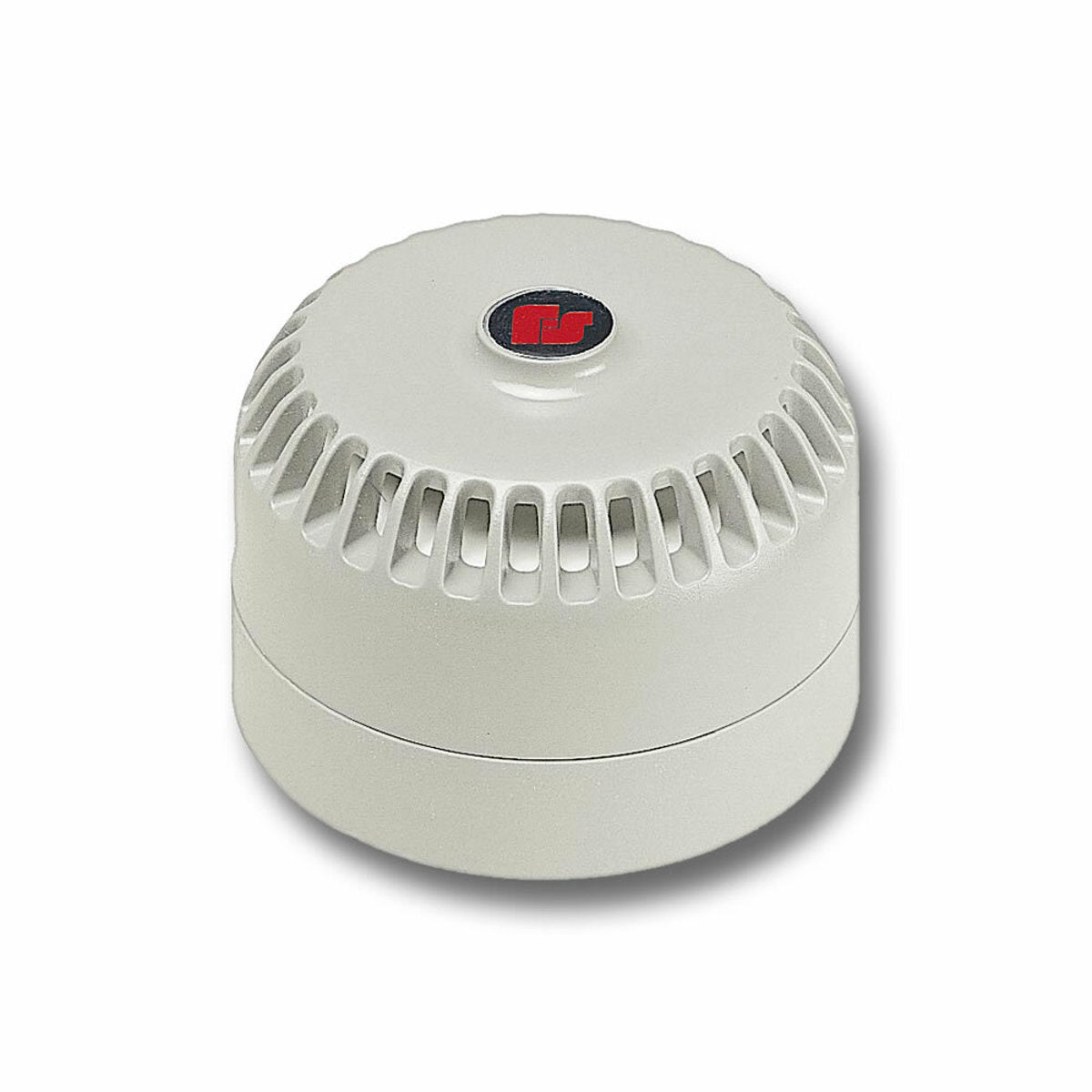

Federal Signal LP4-09-028 Low Profile Mini Sounder 9 to 28 VDC

Product Description

The Federal Signal LP4-09-028 is a low profile mini sounder that operates on 9 to 28 VDC. This device can deliver a range of sound levels from 82 to 100 dBA at a distance of ten feet. It features a choice of up to thirty-two tones and supports remote activation for two tones. The sounder can be mounted on a panel or wall and is designed for both indoor and outdoor applications.

• Operates within a voltage range of 9-28 VDC
• Provides up to 100 dBA sound level
• CE compliant with IP54 enclosure, IP65 with optional deep base

Product Highlights

This low profile sounder is suitable for a variety of signaling applications and is PLC compatible. It is made of durable plastic and features an adjustable volume control, allowing for a customizable sound output.

Product Information

Standard Information

• Brand: Federal Signal
• MPN: LP4-09-028

Technical Specifications

• Voltage: 9-28 VDC
• Amperage: 3 to 33 mA
• Sound Level: 82 to 100 dB
• Material: Plastic
• Enclosure Rating: IP54/IP65 with optional deep base
• Indoor/Outdoor Use: Yes
• Operating Temperature: -13 to 158 degrees F
• Dimensions: 3 inches high x 3.66 inches wide x 3.66 inches deep
