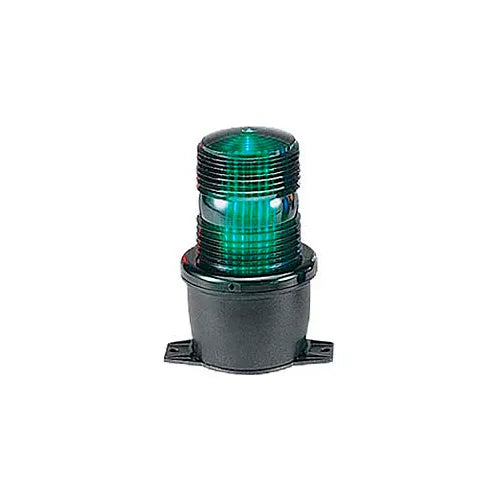

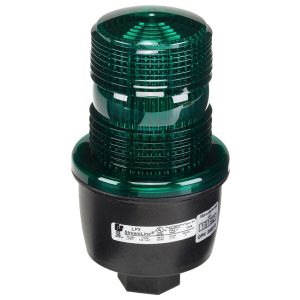

Federal Signal LP3P-120G StreamLine Low Profile Strobe Light 120 VAC (3.13 x 3.13 x 5.82 in)

Product Description

The Federal Signal LP3P-120G is a StreamLine low profile strobe light rated 120 VAC and designed for surface or pipe mounting. It uses a strobe tube lamp that produces 175,000 candela peak with an 80 fpm flash rate and an average lamp life of 4000 hours. The unit draws approximately 0.1 A, features a polycarbonate housing, and is rated NEMA 4X / IP66 / IP69K for indoor and outdoor industrial signaling, hazard warning, process control, and status indication.

• Electrical: 120 VAC input, 0.1 A operating current, strobe tube lamp, 80 flashes per minute, 175,000 cd peak output, ~4000 hr average lamp life
• Mechanical: Low profile cylindrical design, dimensions 3.13 in W x 3.13 in D x 5.82 in H, diameter 3-1/8 in; twist-off/screw-on dome for lamp access
• Mounting and environmental: Surface mount with integrated 1/2 in NPT pipe mount flange; polycarbonate housing; NEMA 4X / IP66 / IP69K; operating temperature -31 to 150 deg F

Product Highlights

120 VAC low profile strobe with 175,000 cd output, integrated 1/2 in NPT pipe mount, polycarbonate NEMA 4X/IP66/IP69K enclosure, 80 fpm flash rate

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LP3P-120G
• Country of Origin: United States

Technical Specifications

• Brand: Federal Signal
• Manufacturer Part Number: LP3P-120G
• Series: LP3P
• Product Type: Low Profile Strobe Light
• Input Voltage: 120 VAC
• Input Current: 0.1 A
• Lamp Type: Strobe tube
• Flash Rate: 80 fpm
• Light Output: 175000 cd
• Average Lamp Life: 4000 hr
• Mounting Type: Surface (integrated 1/2 in NPT pipe mount)
• Housing Material: Polycarbonate
• Dimensions: 3.13 in W x 3.13 in D x 5.82 in H
• Diameter: 3-1/8 in
• Enclosure Rating: NEMA 4X / IP66 / IP69K
• Operating Temperature: -31 to 150 deg F
• Certifications: ARRA Compliant; BAA Compliant; CSA Certified; cUL Listed
• Application: Indoor/outdoor industrial signaling, hazard warning, process control, status indication
• Country of Origin: US
