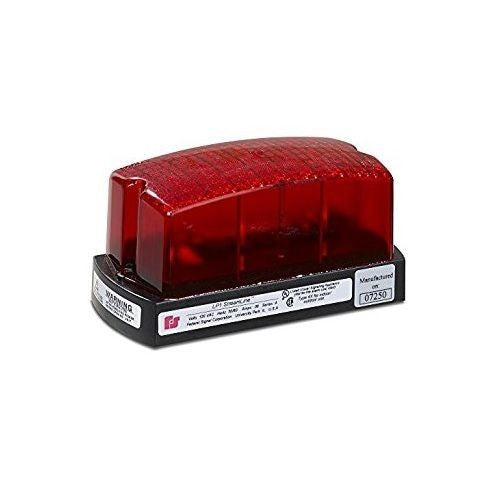

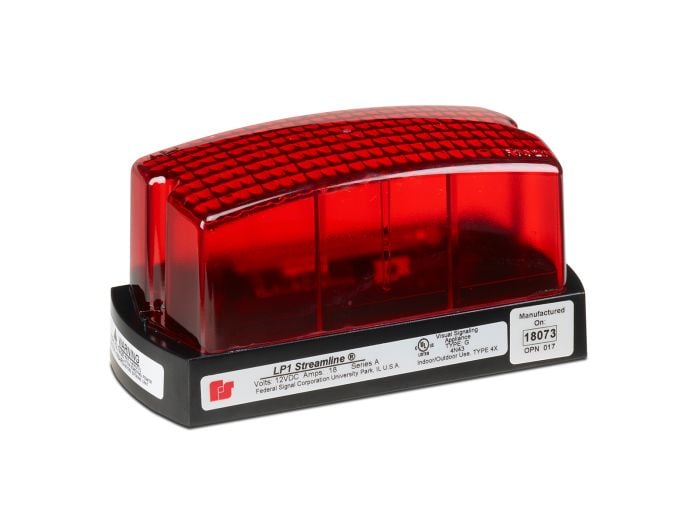

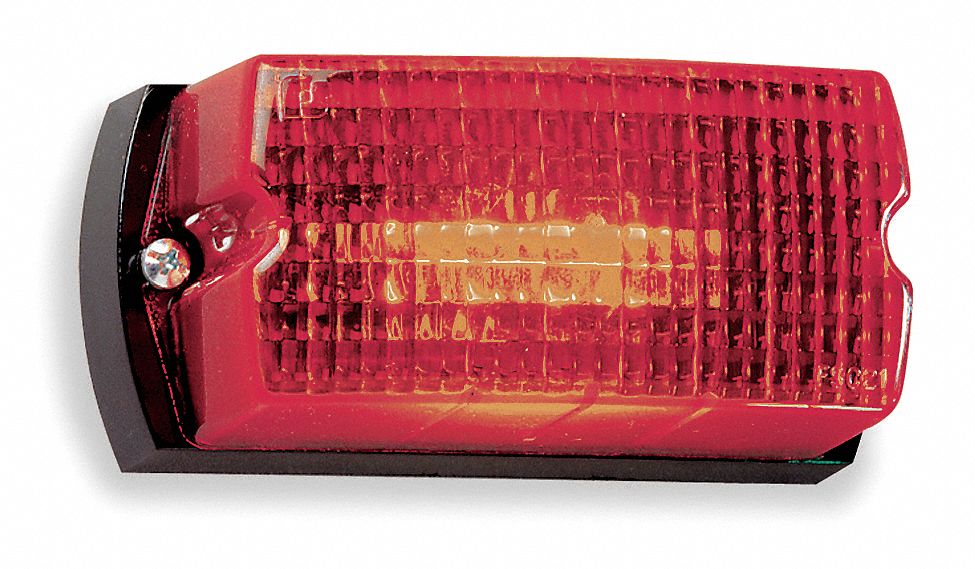

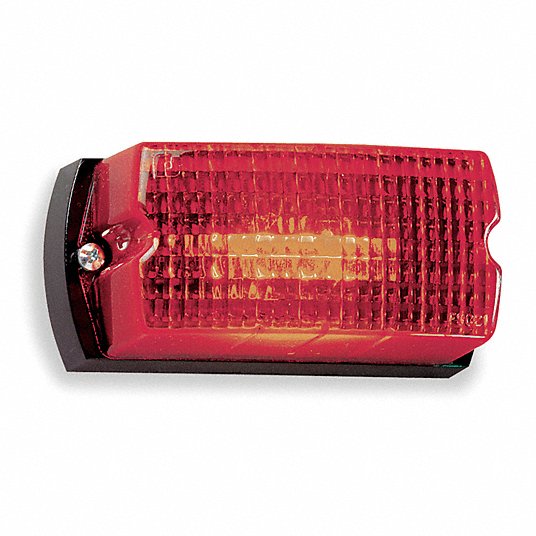

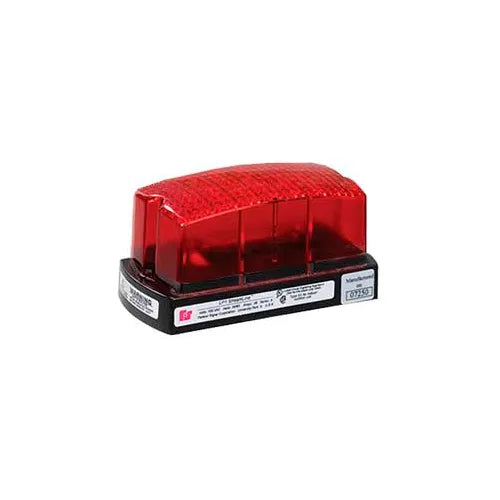

Federal Signal LP1-120R Low Profile Mini Strobe 120 Vac (2.61 H x 5.05 W x 2.33 D) LP1-120R

Product Description

Federal Signal LP1-120R is a StreamLine low-profile mini strobe light designed for 120 Vac operation. It uses a user-replaceable strobe tube producing 108,000 cd at 80 flashes per minute with an average tube life of 4,000 hours. The unit has a polycarbonate housing, conformal-coated PCB and a Type 4X (IP66) enclosure, supports surface or flush mounting and operates from -31 to 150 deg F at 0.06 A.

• 120 Vac operation; operating current 0.06 A; user-replaceable strobe tube (xenon).
• Output 108,000 cd peak, 80 flashes per minute, average tube life 4,000 hours.
• Polycarbonate housing, NEMA 4X (IP66) enclosure, conformal-coated PCB; includes gasket and mounting bolts for surface/flush installation.

Product Highlights

Low-profile 120 Vac strobe for indoor/outdoor signaling; NEMA 4X (IP66) rated; compact dimensions 2.61 x 5.05 x 2.33 in; 108,000 cd, 80 fpm.

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: LP1-120R
• Country of Origin: US

Technical Specifications

• Brand: Federal Signal
• Manufacturer Part Number: LP1-120R
• Series: LP1
• Model: LP1-120R
• Input Voltage: 120 Vac
• Operating Current: 0.06 A
• Lamp Type: Strobe tube (xenon)
• Light Output: 108000 cd
• Flash Rate: 80 fpm
• Average Lamp Life: 4000 hr
• Housing Material: Polycarbonate
• Mounting Type: Surface / Flush mount
• Dimensions: 2.61 in H x 5.05 in W x 2.33 in D
• NEMA Rating: 4X (IP66)
• Operating Temperature Range: -31 to 150 deg F
• Certifications: UL listed; cUL listed; ARRA Compliant; BAA Compliant
• Conformal Coated PCB: Yes
• Includes: Pigtail; polypropylene gasket; (2) 1-1/4 in 8/32 slotted hex bolts (mounting hardware)
• Country of Origin: US
