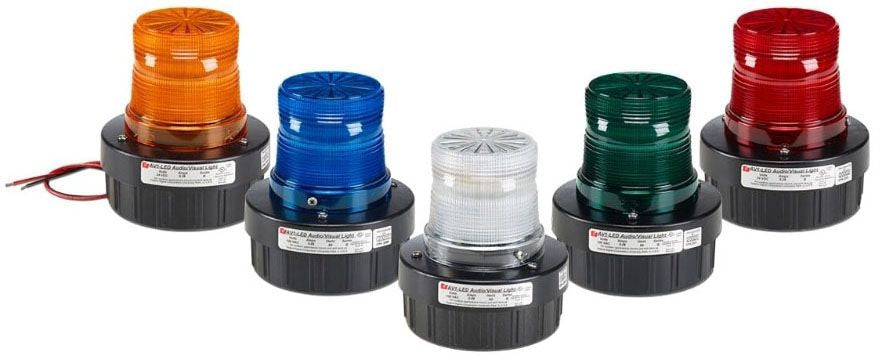

Federal Signal AV1-LED-120R Light Sounder Combination 120VAC Red

Product Description

The Federal Signal AV1-LED-120R is a combination audible and visual signaling device designed for reliable alarm applications. This unit operates on 120VAC and features a robust LED light source rated for up to 50,000 hours of use. This device can be mounted in various configurations including surface mount as well as integrated NPT pipe and electrical box mounts.

• Integrated 1/2 inch NPT pipe mount
• Twist-off lens for easy access
• 85 dBA internal buzzer at 10 feet

Product Highlights

Ideal for indoor and outdoor use, the AV1-LED-120R includes features such as weatherproofing suitable for type 3R applications and PLC compatibility.

Product Information

Standard Information

• Manufacturer: Federal Signal
• MPN: AV1-LED-120R

Technical Specifications

• Voltage: 120 VAC
• Amperage: 0.03 A
• Sound Level: 85 dB
• Dimensions: 6.48 H x 5.76 W x 5.76 D inches
• Environmental Conditions: -31 to 150 deg F
• Material: Polycarbonate
• Mounting: Surface mount, pipe mount, electrical box mount
• Cross Reference: Edwards 51XBRFR120A|FederalSig SLM500R|FederalSig SLM600R
