Federal Signal 350WBX-120 Federal Strobe Siren, WBX, 350WBz, Location

Product Description

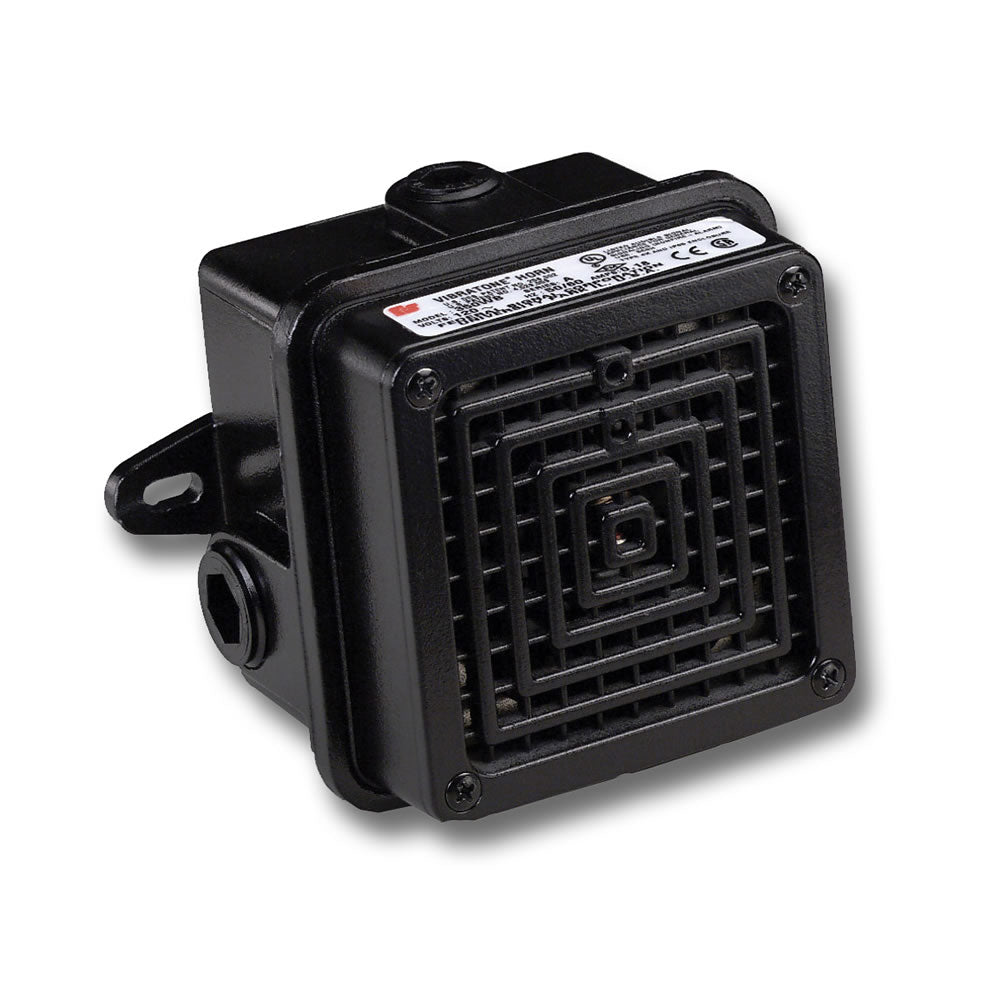

The Federal Signal 350WBX-120 is a Vibratone horn designed to produce sound via the electro-mechanical vibration of a stainless-steel diaphragm. The horn's mechanism is integrated with a grille, ensuring rugged performance. It features a water- and dust-tight back box that allows for both indoor and outdoor installations.

The 350WBX model is constructed from die-cast zinc housing with a corrosion-resistant finish. Its sturdy outer grille is designed to resist vandalism while maintaining sound output. The horn is equipped with a fused terminal block connection for easy installation.

This horn is suitable for general alarms, coded paging, and process control signaling where sound output exceeds ambient noise levels. Its compact size and multiple mounting options make it ideal for institutional use.

• Die-cast zinc construction for durability
• 100 dBA sound output at ten feet
• IP65 rated for water and dust resistance

Product Highlights

This horn offers reliable warning and signaling capabilities in hazardous locations with its explosion-proof design.

Product Information

Standard Information

• MPN: 350WBX-120
• Brand: Federal Signal

Technical Specifications

• Voltage Rating: 120 VAC
• Frequency Rating: 50/60 Hz
• Sound Level: 100 dB
• Material: Die Cast Zinc
• Mounting Type: Flush/Semi-flush
• Dimensions: 4.53 inches H x 4.53 inches W x 3.66 inches D
• Operating Temperature: -65 to 150 degrees F
