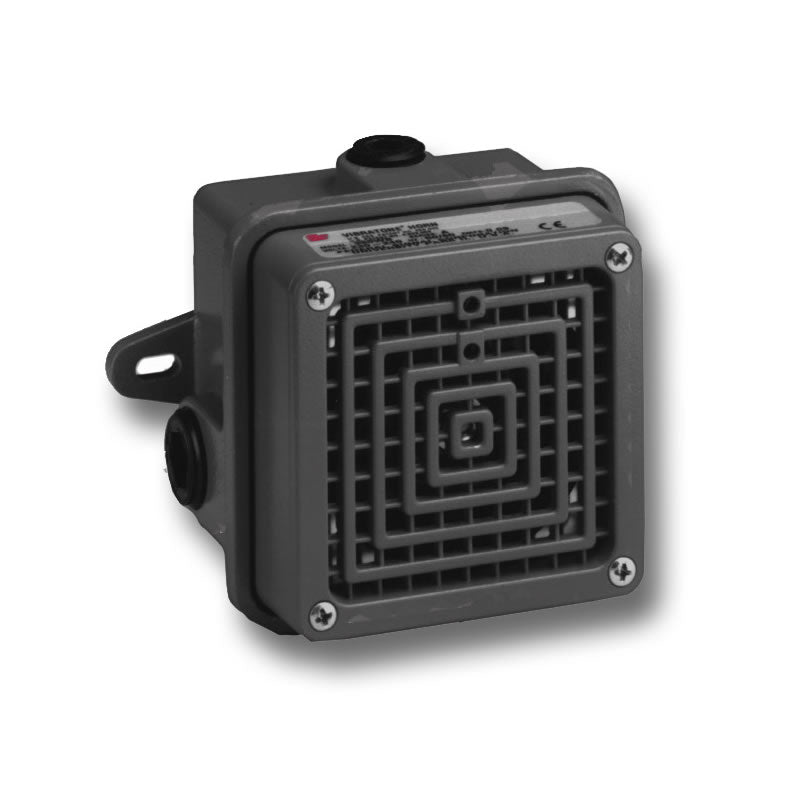

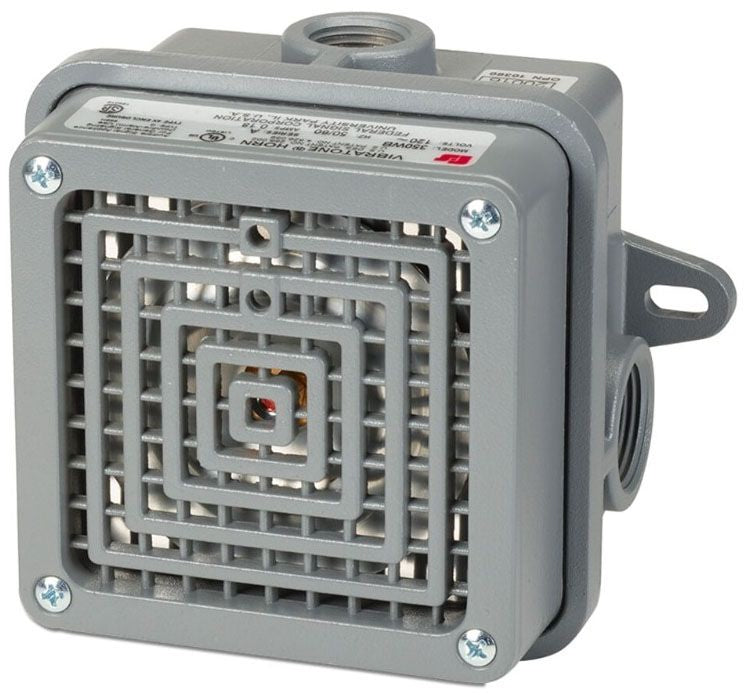

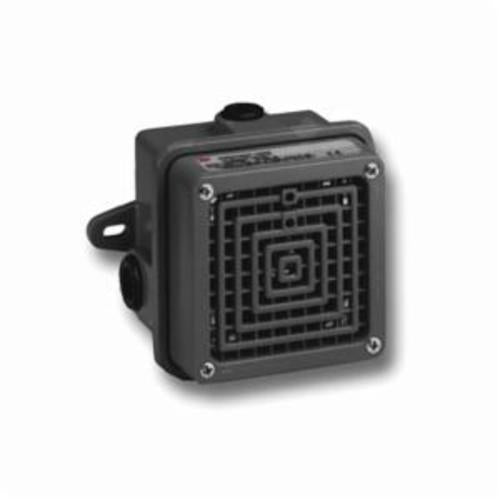

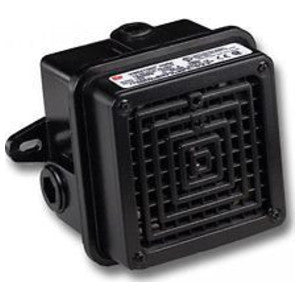

Federal Signal 350WB-120 350WB Compact Electronic Horn 120 VAC

Product Description

The Federal Signal Vibratone 350WB-120 is a compact electronic horn designed for general alarm signaling in indoor and outdoor applications. It operates on 120 volts AC and features a die-cast aluminum housing for durability. The horn can produce sound levels of up to 110 dB at one meter, making it suitable for noisy environments.

• Robust design for indoor and outdoor use.
• Produces coded or sustained tones.
• Meets ARRA and BAA compliance standards.

Product Highlights

The 350WB-120 is ideal for alarm systems, start and dismissal signals, and process control in facilities where reliability is crucial.

Product Information

Standard Information

• Brand: Federal Signal
• MPN: 350WB-120

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 0.18 A
• Sound Level: 110/100 dB
• Material: Die-Cast Aluminum
• Dimensions: 5.3 in W x 3.66 in D x 5.3 in H
• Mounting Type: Panel/Wall
• Indoor/Outdoor: Indoor/Outdoor
• Operating Temperature: -65 to 150 deg F
• Frequency Rating: 50/60 Hz
• Specifications Met: ARRA Compliant | BAA Compliant
