Federal Signal 31X-120-3 Horn 120VAC Explosion-Proof

Product Description

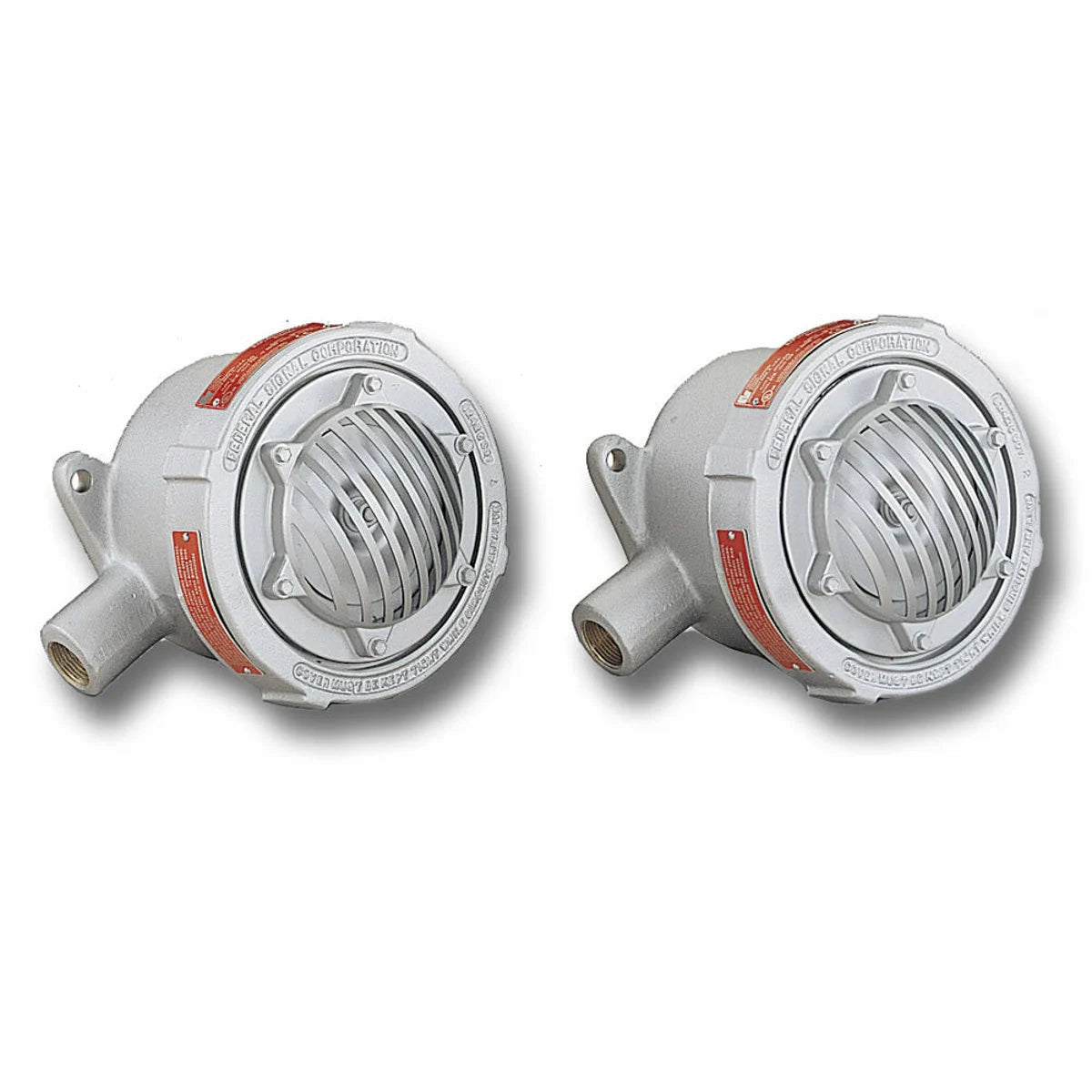

The Federal Signal model 31X-120-3 is a vibrating horn designed for hazardous environments. It operates at 120 VAC with an amperage of 0.2 Amp. The horn is housed in a corrosion-resistant cast aluminum casing, making it suitable for outdoor and indoor use. This device produces a loud sound intensity of 100 dB at a distance of ten feet. The horn is CSA Certified and UL listed for Class I, Division 1, Groups C and D, and Class II, Division 1, Groups E, F, and G.

• Explosion-proof design for safe operation in hazardous locations.
• Mountable on a 3/4 inch pipe or surface.
• Durable construction for long-term reliability.

Product Highlights

The 31X-120-3 series is built for durability and efficiency in demanding conditions.

Product Information

Standard Information

• Brand: Federal Signal
• Model Number: 31X-120-3

Technical Specifications

• Operating Voltage: 120 VAC
• Amperage: 0.2 A
• Loudness: 100 dB
• Material: Cast Aluminum
• Country of Origin: United States
• Dimensions: 7.625 H x 6.5 W x 6.5 D inches
• Operating Temperature: -13 to 104 degrees F
• Mounting Type: Pipe/Surface
