Federal Signal 314X-024 SelecTone Explosion-Proof Amplified Speaker 24VDC (Type 4X)

Product Description

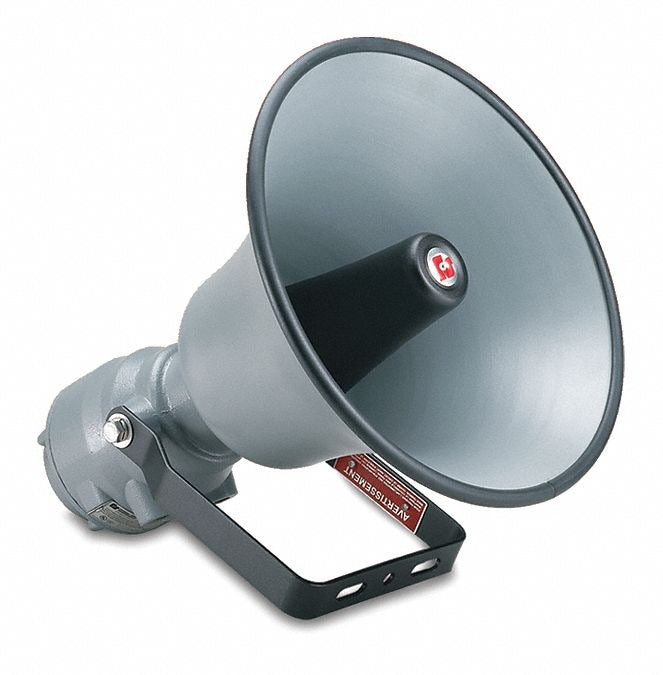

The Federal Signal 314X-024 is a SelecTone explosion-proof amplified speaker operating at 24VDC for supervised alarm notification systems. It produces selectable tones or voice messages via a plug-in tone card or central tone source, and includes built-in gain control and fused input/output. The unit is cast aluminum with a spun aluminum projector, rated Type 4X for indoor and outdoor use, and approved for hazardous locations.

• Operates at 24 VDC; sensitivity 122 dB; supports plug-in 32-tone UTM cards or central tone sources for paging and evacuation systems
• Four-wire supervisable power circuit, built-in gain control, fused input and output; surface mounting with external mounting tabs
• Type 4X enclosure (NEMA 4X/IP69K), cast aluminum housing with spun aluminum projector; UL and hazardous-location listings for Class I, II and III

Product Highlights

Explosion-proof SelecTone amplified speaker, 24VDC, 122 dB sensitivity, Type 4X aluminum housing, plug-in tone/connector card support

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: 314X-024
• Country of Origin: United States
