Febco T765EBV 765-Qt-Fz Pressure Vacuum Breaker with Freeze Sensor 1 inches replacement FE765-100

Product Description

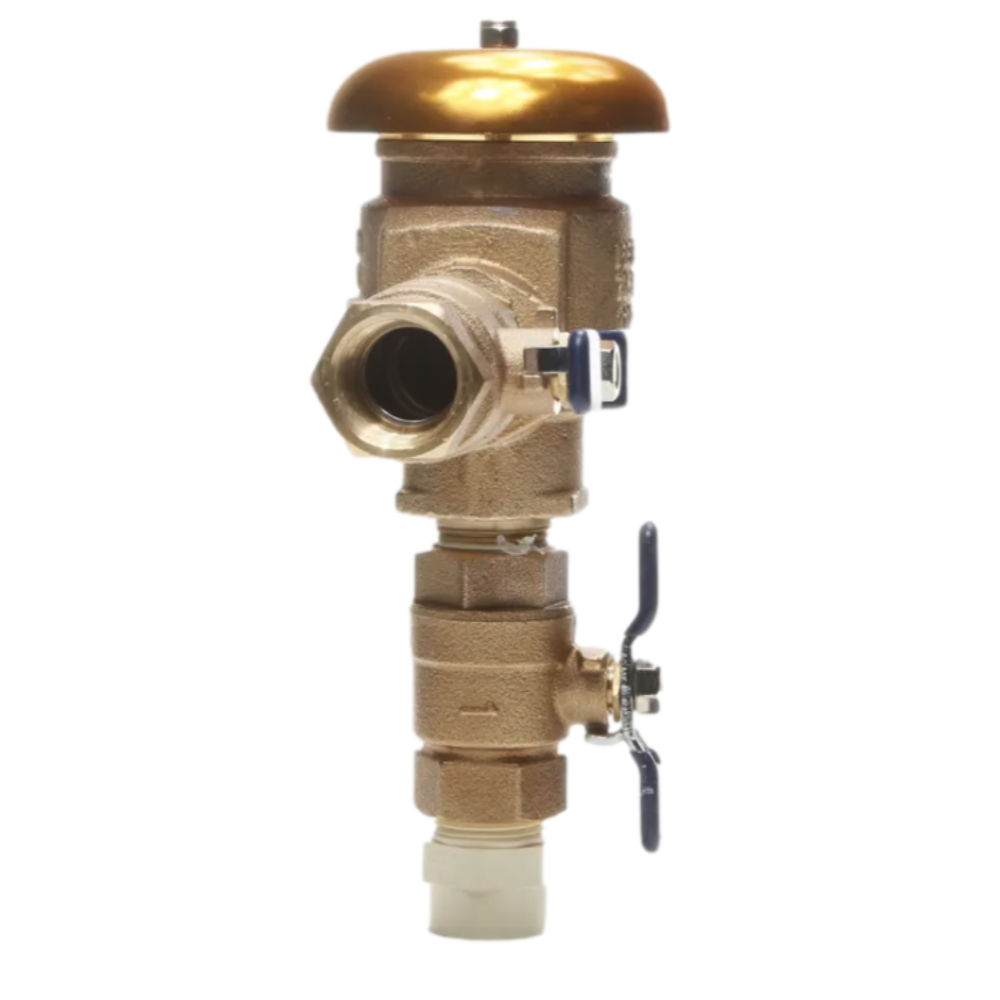

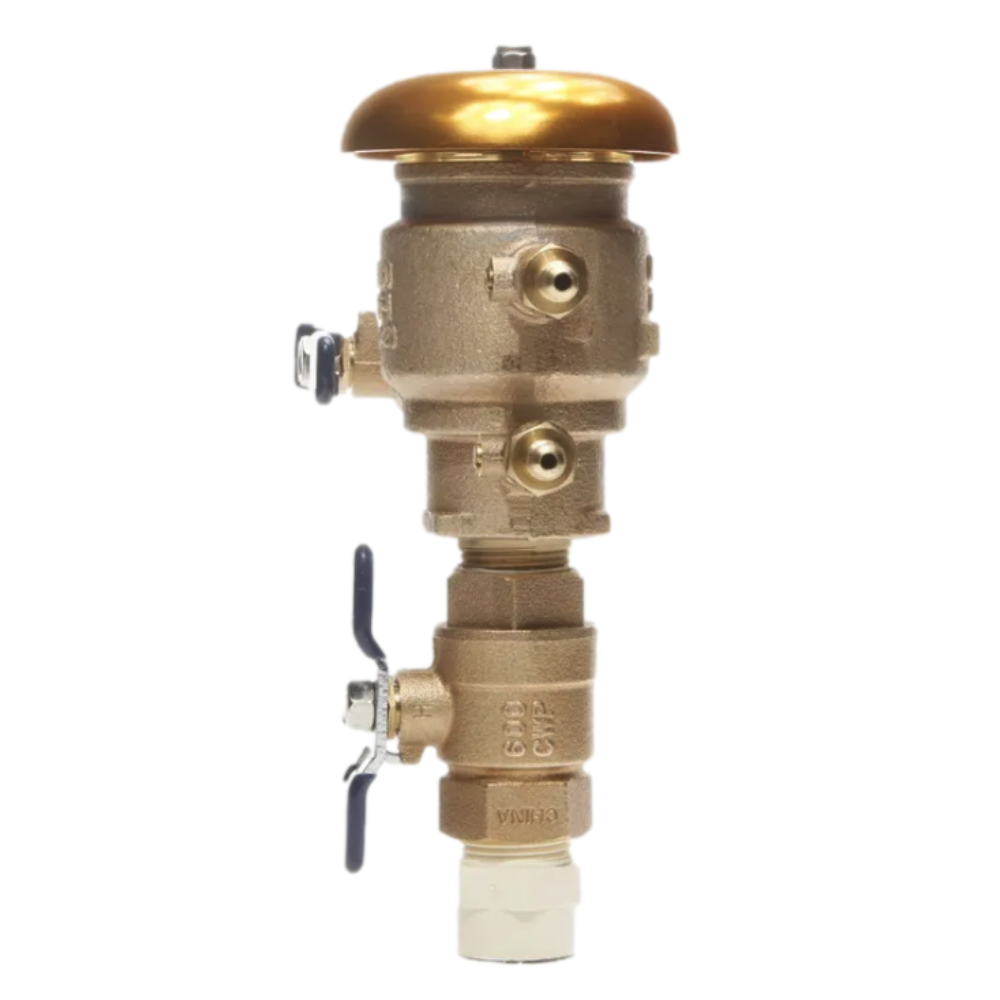

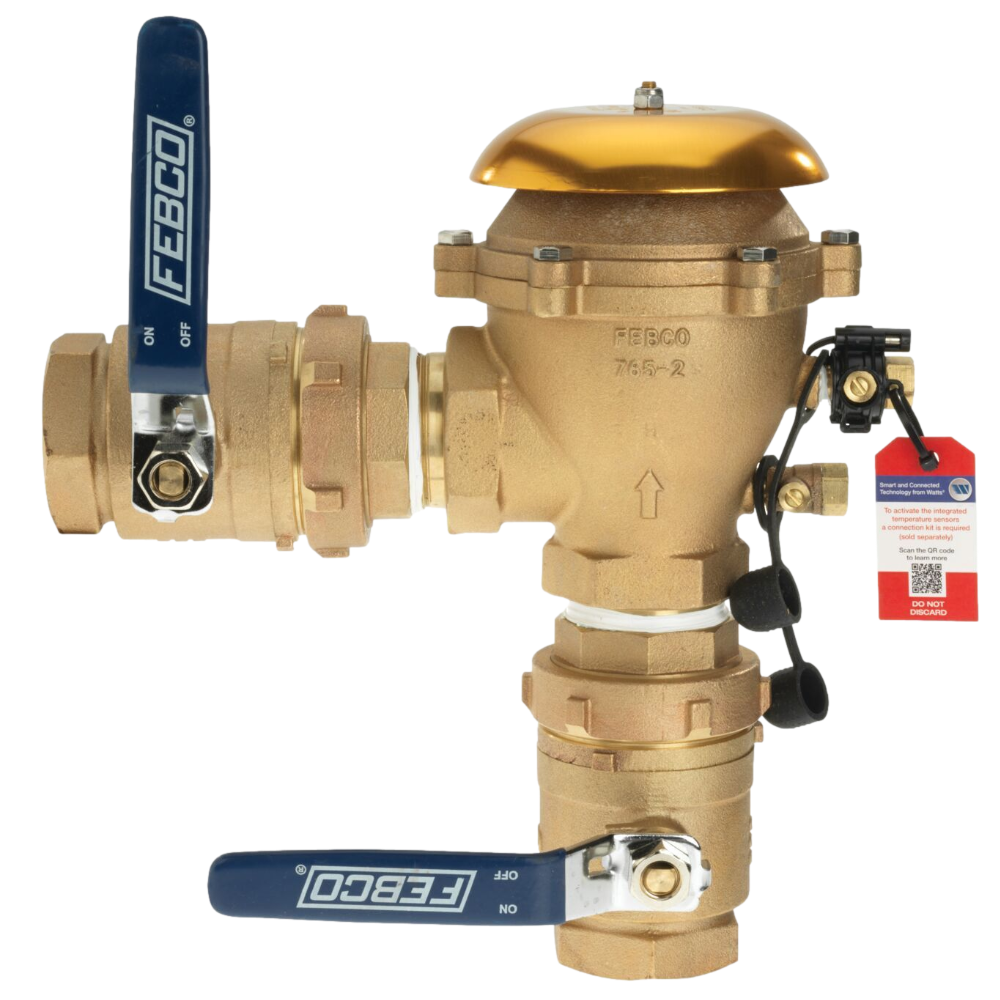

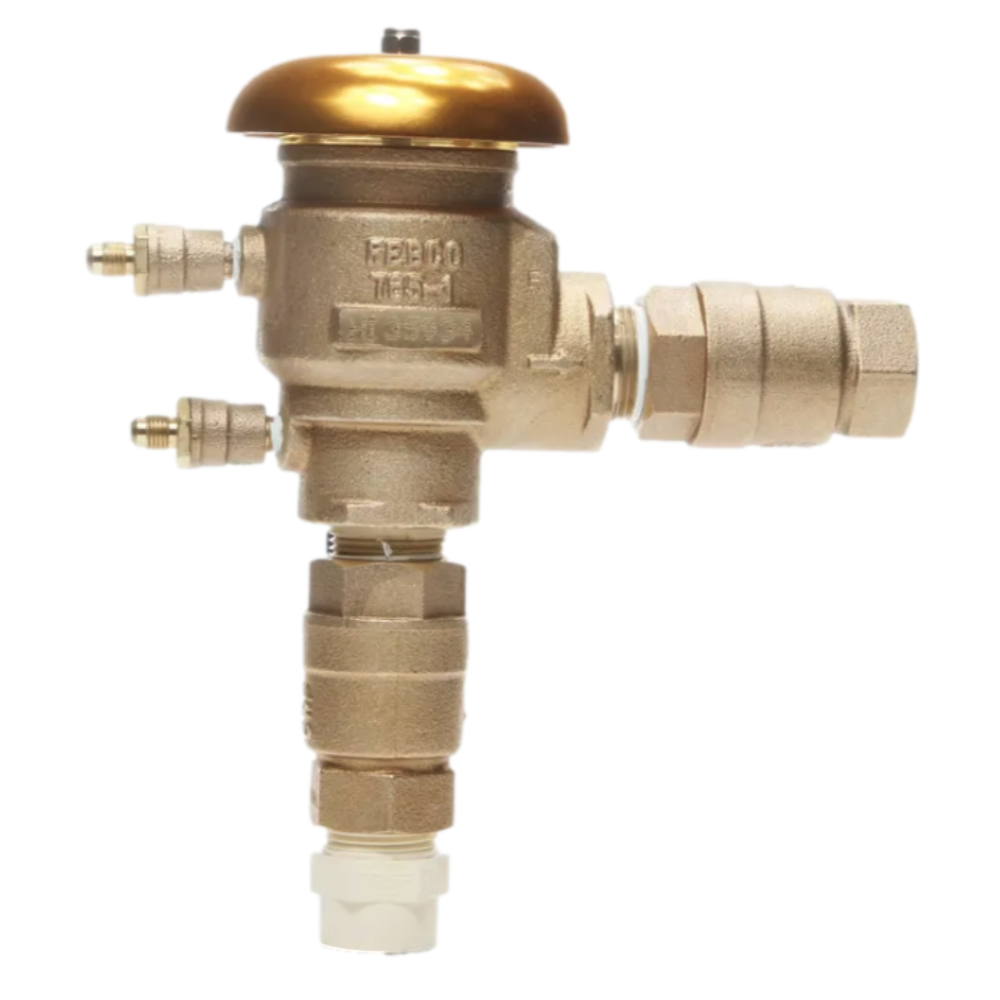

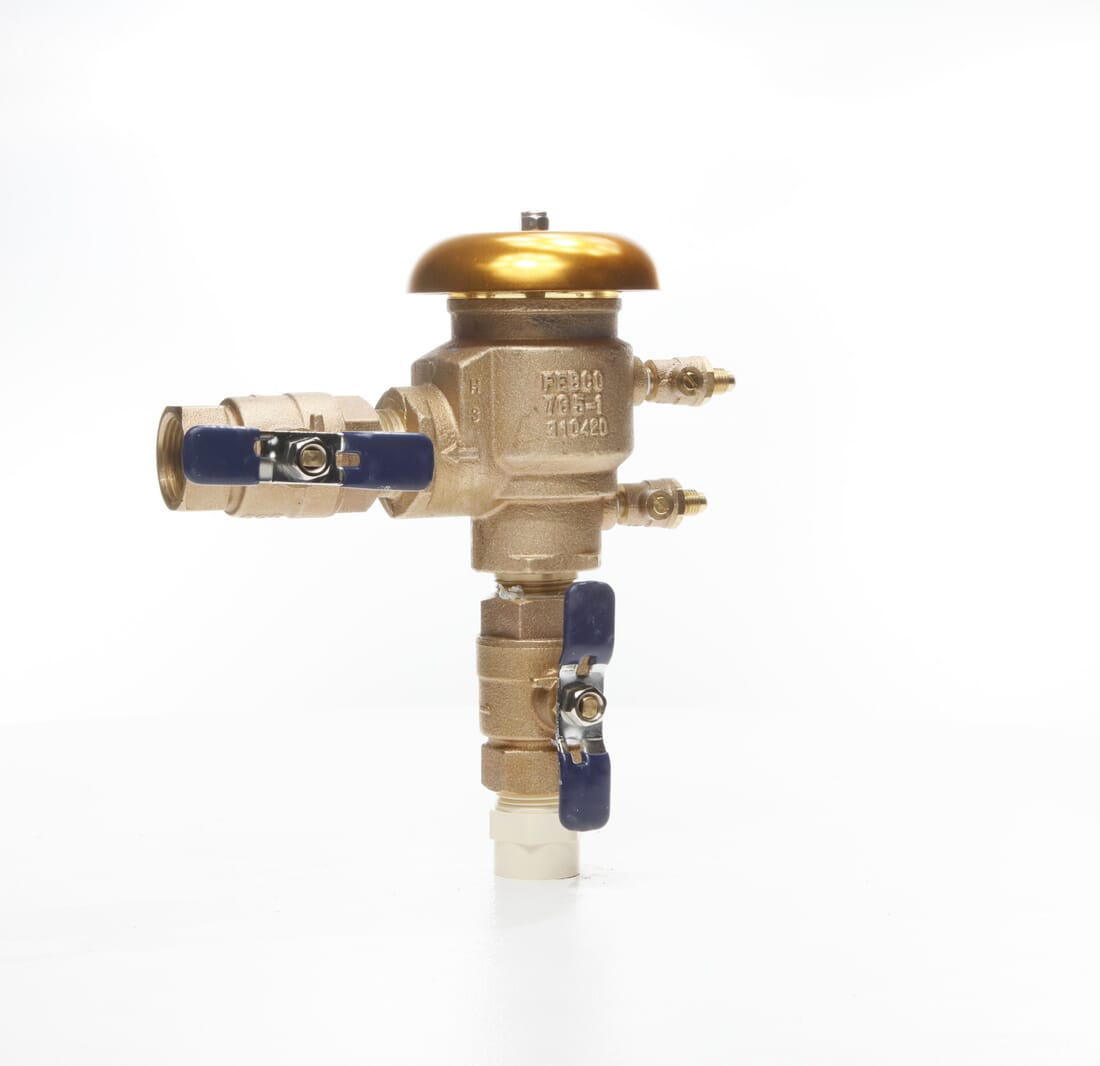

The FEBCO T765EBV 765-QT-FZ pressure vacuum breaker backflow preventer protects against health hazard and non-hazard backsiphonage. It is used in industrial plants, cooling towers, laboratories, laundries, swimming pools and irrigation systems. It features a bronze body, spring-loaded check valve, air relief valve, and NPT end connections. The pressure vacuum breaker includes a freeze sensor.

• Includes a freeze sensor for use with SentryPlus Alert technology to signal when temperature nears the freeze point
• Freeze alerts feature available with add-on connection kit
• Bronze body for durability

Product Highlights

This pressure vacuum breaker has a maximum working pressure of 150 psi and a temperature range of 32 degrees F to 140 degrees F.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: T765EBV

Technical Specifications

• Connection Type: FNPT x FNPT
• Size: 1"
• Max Pressure (PSI): 150
• Max Temp (F): 140
• Application: Plumbing
• Hydrostatic Test Pressure: 300 PSI
• Material: Bronze
• Technologies: Freeze Detection
• Outlet Connection Size: 1 IN
• Inlet Connection Size: 1 IN
• Product Type: Pressure Vacuum Breakers (PVB)
• Test Cocks: 2 FEMALE
• Max Working Pressure: 150 PSI
• Temperature Range: 32F to 140F
• Main Valve Body Materials: Bronze
• Elastomers: Nitrile
• Springs: Stainless Steel
• Connection: FPT
• Lead Free: Not Lead Free
• Nominal Size: 1 in
• Body Material: Bronze
• Pressure Rating: 150 psi (10.3 bar)
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 150 Pound per Square Inch
• Number of Ports: 2
