Febco F825HYA 2 inches 825YA-QT-FS Quarter Turn Reduced Pressure Zone Assembly

Product Description

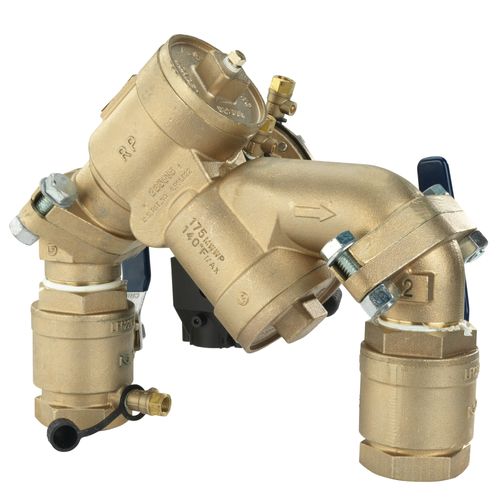

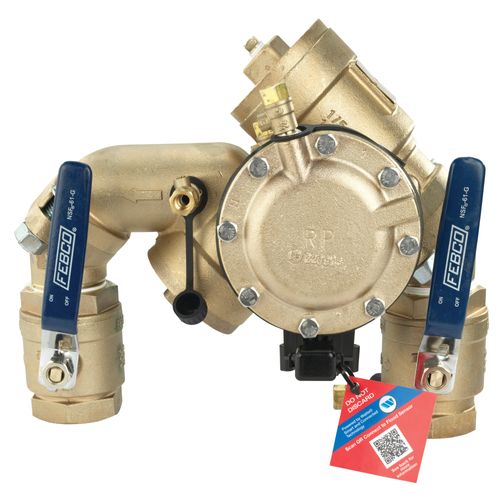

The FEBCO F825HYA is a 2 inch N shaped reduced pressure zone assembly backflow preventer. It prevents the reverse flow of high hazard fluids from entering the potable water supply due to backsiphonage or backpressure. It is used in industrial plants, hospitals, chemical plants, irrigation systems, and boiler feed lines. This assembly consists of a bronze body, quarter turn ball valves and spring loaded check valves.

• Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Bronze body

Product Highlights

The compact design simplifies new and retrofit installations, especially in limited spaces. Contains a flood sensor with SentryPlus Alert technology to detect excessive water discharges.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F825HYA
• Country of Origin: CHINA

Technical Specifications

• Body Pattern: N-Pattern
• Application: Plumbing
• Lead Free: No
• Size: 2"
• Valve Type: Quarter Turn Ball Valve
• Material: Bronze
• Connection Method: Union
• Product Type: Backflow Preventer
• Connection Type: FNPT
• Inlet Connection Size: 2 in
• Outlet Connection Size: 2 in
