Febco F825HBV 825y-qt quarter turn reduced pressure zone assembly 2 inches

Product Description

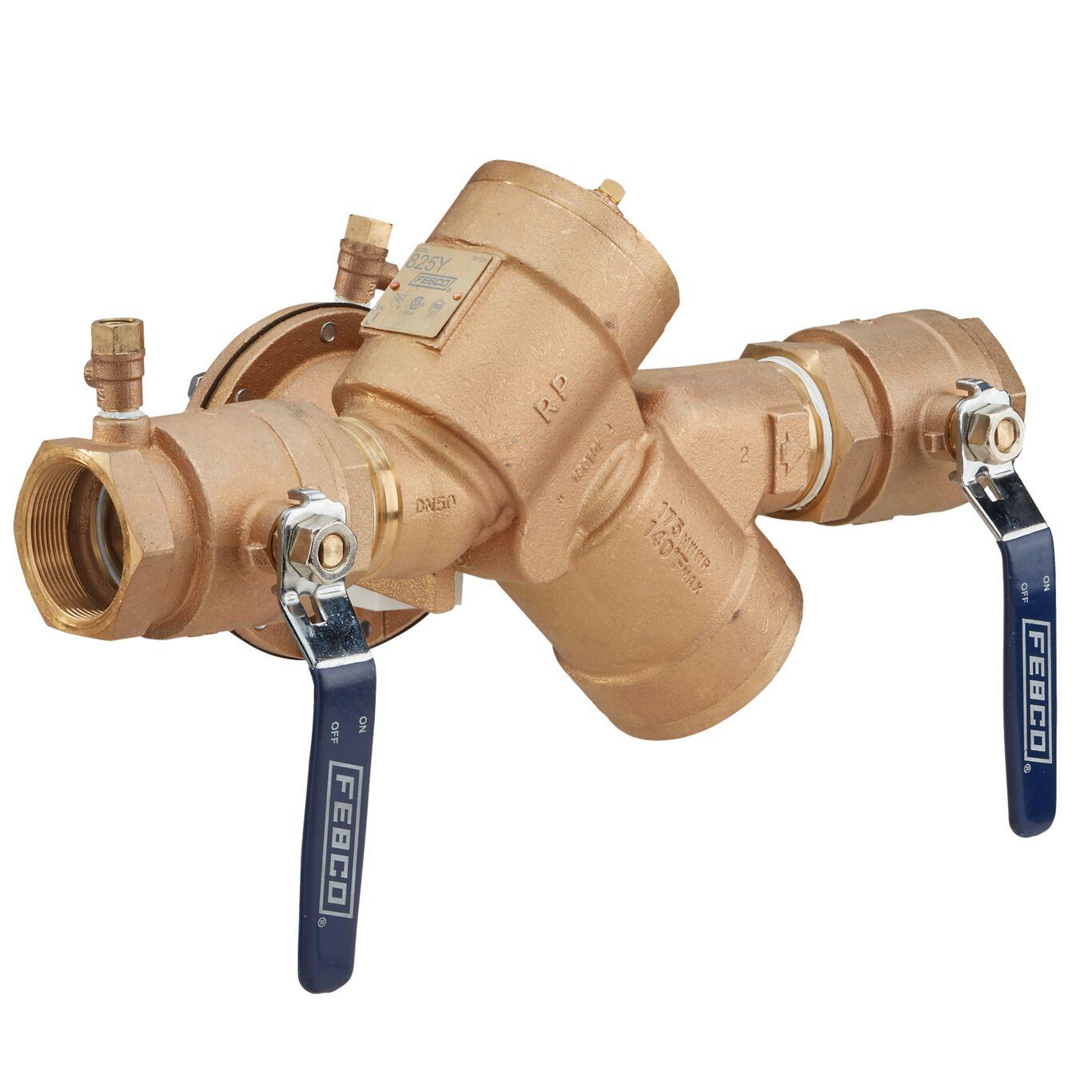

The FEBCO F825HBV is a 2" Y pattern reduced pressure zone backflow preventer assembly. It prevents the reverse flow of high hazard fluids from entering the potable water supply due to backsiphonage or backpressure. It features a bronze body, quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and a hydraulically dependent differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert technology.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Bronze body

Product Highlights

The F825HBV backflow preventer is ideal for industrial plants, hospitals, irrigation systems, and other installations requiring maximum protection.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F825HBV

Technical Specifications

• Body Pattern: Straight
• Valve Type: Quarter Turn Ball Valve
• Connection Type: FNPT, Female Threaded
• Product Type: Backflow Preventer
• Size: 2"
• Max Pressure (PSI): 175
• Water Temperature: 32 0F to 140 0F
• Hydrostatic Test Pressure: 350 PSI
• ArmorTek Technology: No
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Rough Bronze
• Body Material: Bronze
• Brand: FEBCO
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: Yes
• Disc Material: Does Not Apply To Product
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 2 IN
• Inlet Connection Size-Metric: 50 MM
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: No
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.00
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: F825HBV
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Nitrile
• Series: 825Y
• Strainer: No
• Technologies: Flood Detection
• Manufacturer (Brand): Febco
• Manufacturer Item Number: F825HBV
• Material: Bronze
• Reduced Pressure: Reduced Pressure
• Valve Mechanism: Ball
• Feature: Genuine OEM
• Valve Size: 2 Inch
• Model Number: 825
