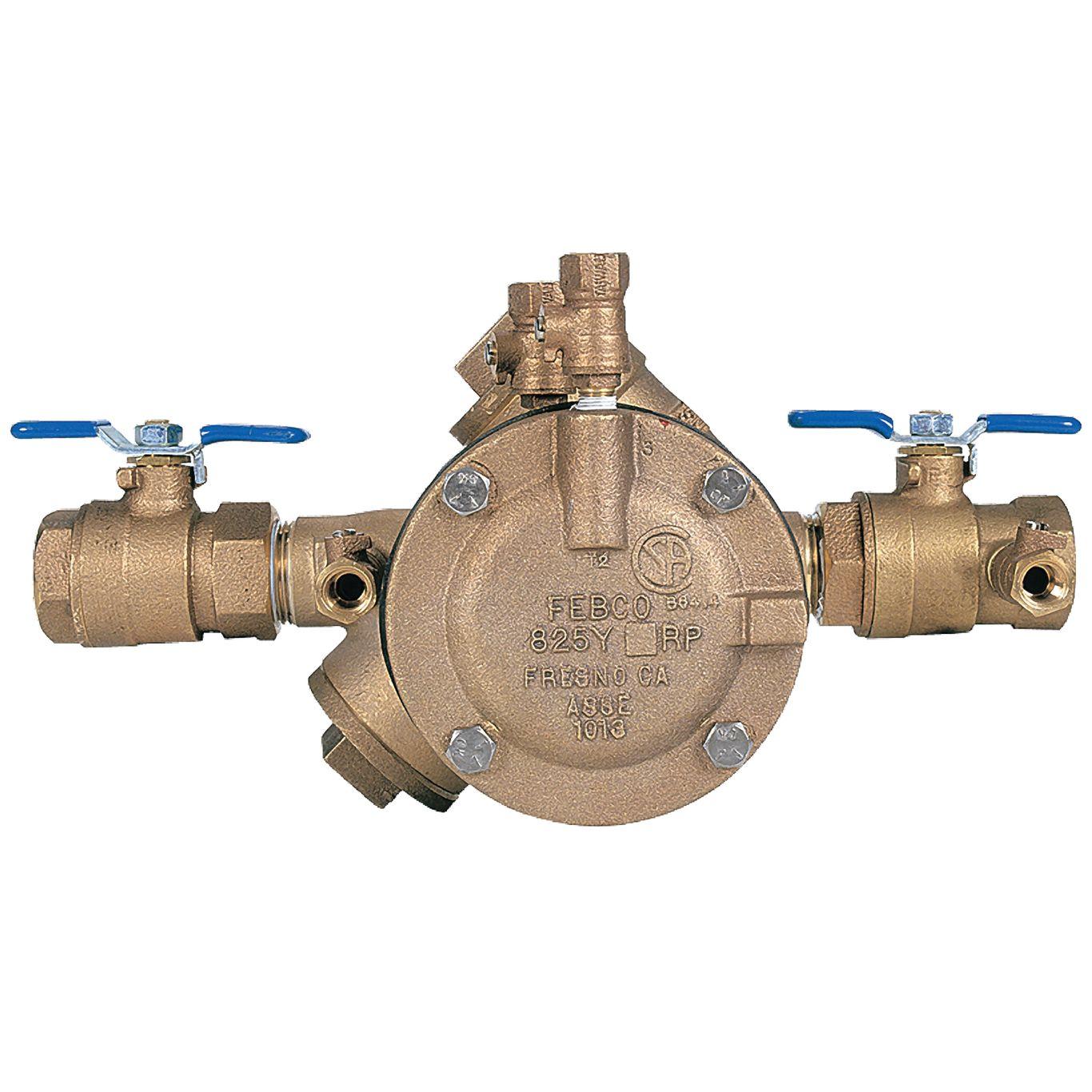

Febco F825FBV 825y Reduced Pressure Zone Assembly 1-1/4 inches F825FBV

Product Description

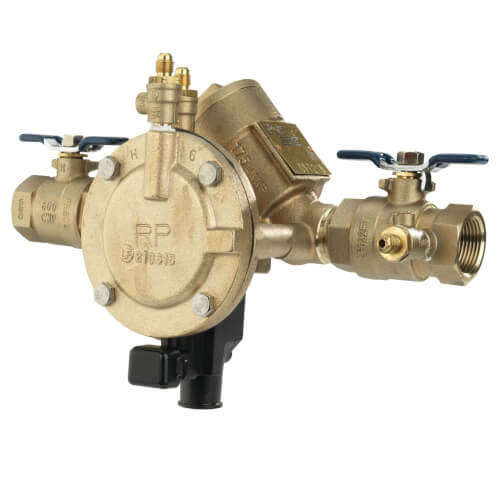

The FEBCO F825FBV is a 825Y reduced pressure zone assembly with a flood sensor and SentryPlus Alert technology to detect excessive water discharges. It protects against high hazard fluids in water services for various applications. Connection kits are available for BMS and cellular communication.

• Sensor on relief valve for flood detection
• Flood alerts feature available with add-on connection kit, compatible with BMS and cellular communication
• Provides mechanical protection of potable water against high hazard (toxic) cross-connection contamination

Product Highlights

This assembly features a flood sensor, add-on connection kit, and provides mechanical protection of potable water against high hazard cross-connection contamination.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F825FBV

Technical Specifications

• Connection Type: FNPT, Female Threaded
• Valve Type: Quarter Turn Ball Valve
• Body Pattern: Straight
• Product Type: Backflow Preventer
• ArmorTek Technology: No
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Rough Bronze
• Body Material: Bronze
• Brand: FEBCO
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: Yes
• Disc Material: Does Not Apply To Product
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 1 1/4 IN
• Inlet Connection Size-Metric: 32 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: No
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.00
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 1 1/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: F825FBV
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Nitrile
• Series: 825Y
• Strainer: No
• Technologies: Flood Detection
• Manufacturer (Brand): Febco
• Manufacturer Item Number: F825FBV
• UPC: 643925581737
• Material: Bronze
• Reduced Pressure: Yes
• Valve Mechanism: Ball
• Feature: Genuine OEM
• Valve Size: 1 1/4 Inch
• Model Number: 825
