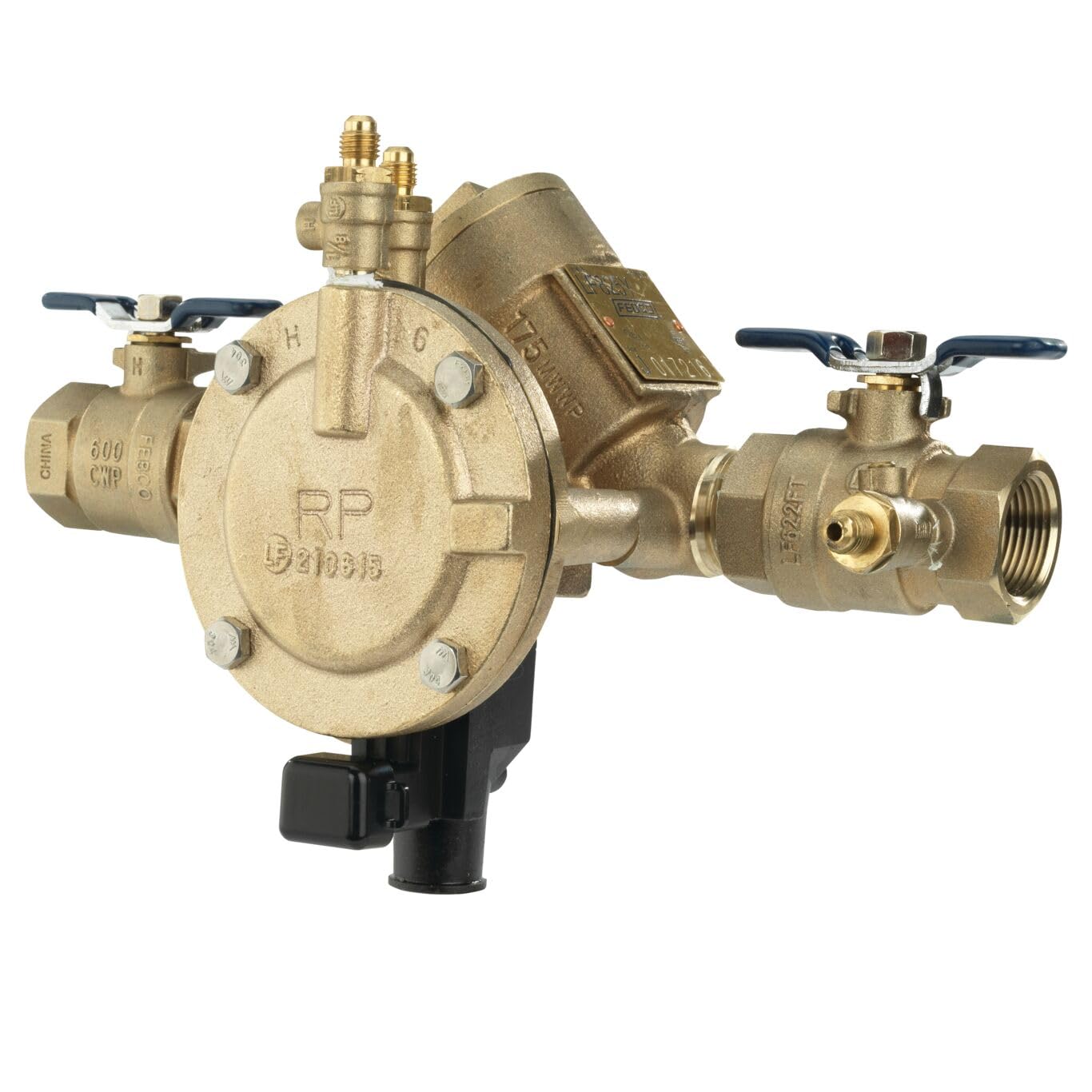

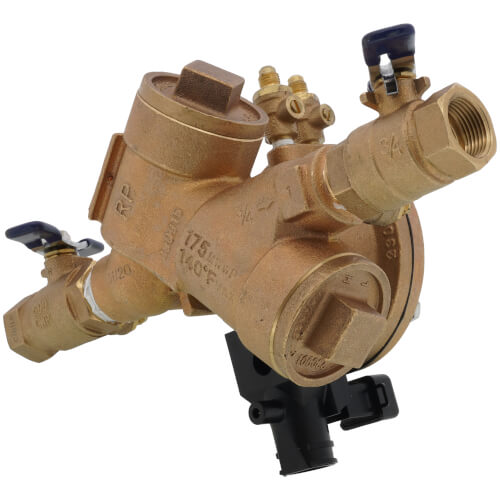

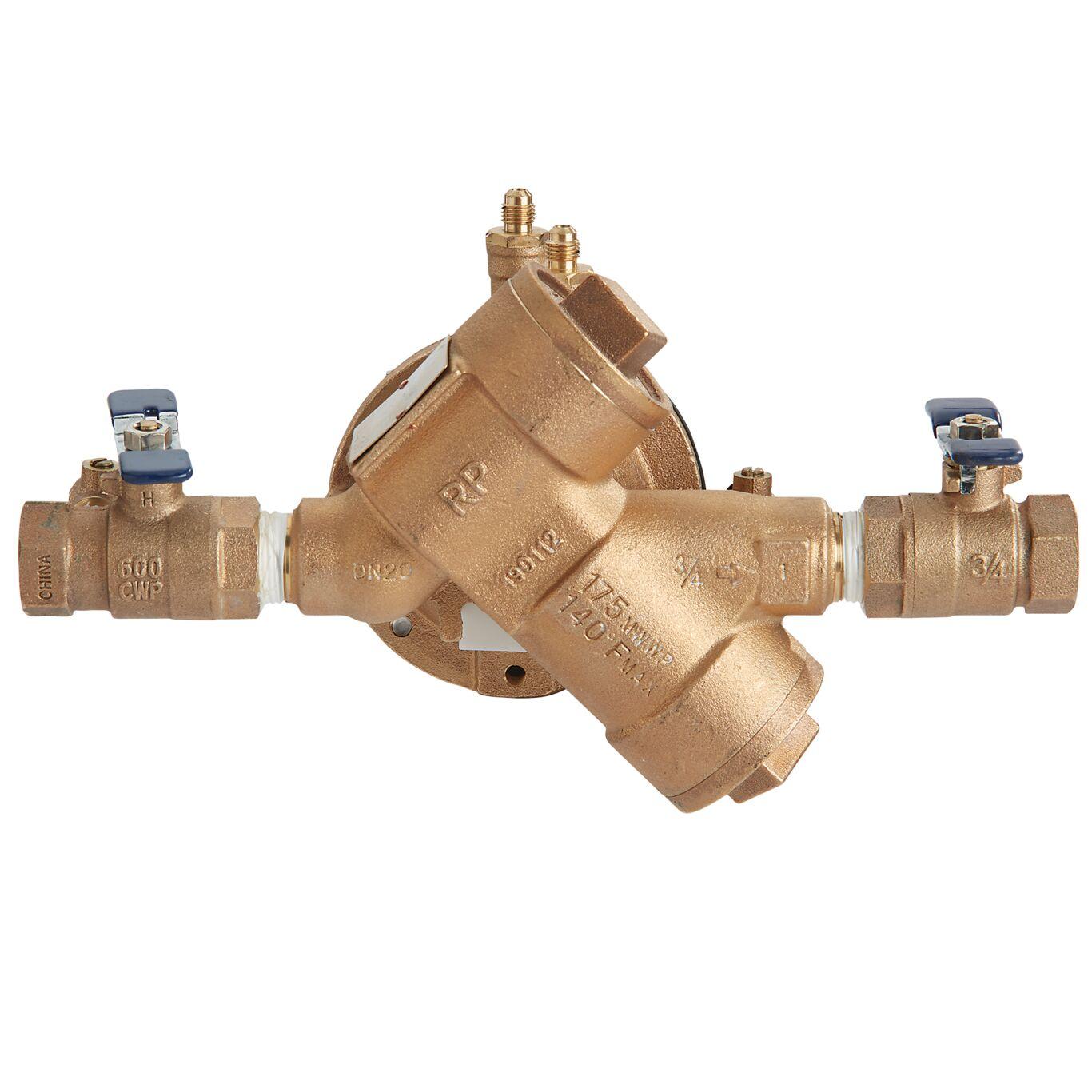

Febco F825DBV 825y Series Reduced Pressure Zone Backflow Preventer Assembly 3/4 inches

Product Description

The Febco F825DBV bronze Y pattern reduced pressure zone backflow preventer assembly provides mechanical protection against cross-connection contamination hazards. Designed to prevent the reverse flow of high-hazard fluids from contaminating potable water systems due to back-siphonage or backpressure. Suitable for industrial plants, hospitals, irrigation systems, and water lines.

• Equipped with threaded quarter-turn ball valves and test cocks.
• Features spring-loaded Y pattern check valves and a hydraulically dependent differential relief valve.
• Includes a flood sensor with SentryPlus Alert technology to detect excessive water discharges.

Product Highlights

This assembly features a durable bronze body and is equipped with a modular relief valve and internal parts that are serviceable in line for easy maintenance.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F825DBV

Technical Specifications

• Manufacturer: Watts
• Brand: Febco
• Product Group: BISS
• Size: 3/4 Inch
• Number of Items: 1.0
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Rough Bronze
• Body Material: Bronze
• Body Pattern: Straight
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: Yes
• Disc Material: Does Not Apply To Product
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.00
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: F825DBV
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Nitrile
• Series: 825Y
• Strainer: No
• ArmorTek Technology: No
• EAN: 643925581546
• Technologies: Flood Detection
• Manufacturer (Brand): Febco
• Manufacturer Item Number: F825DBV
• UOM: Eaches
• Material: Bronze
• Reduced Pressure: Reduced Pressure
• Valve Mechanism: Ball
• Feature: Genuine OEM
• Valve Size: 3/4 Inch
• Model Number: 825
• Quantity: 1/Each
• Length: 12 Inches
• Height: 6 1/2 Inches
• Inlet / Outlet Size: 3/4 Inch
• Maximum Pressure: 175 PSI
• Temperature Range: 32 - 140 Degrees F
• Type: Reduced Pressure Zone Assemblies
• Connection Size: 3/4 in.
• Connection Type: FNPT
• MFG Number: F825DBV
• UPC: 643925581546
• Series/Model: 825 Series
