Febco F683012 LF825YA Reduced Pressure Zone Backflow Preventer Assembly 1 IN

Product Description

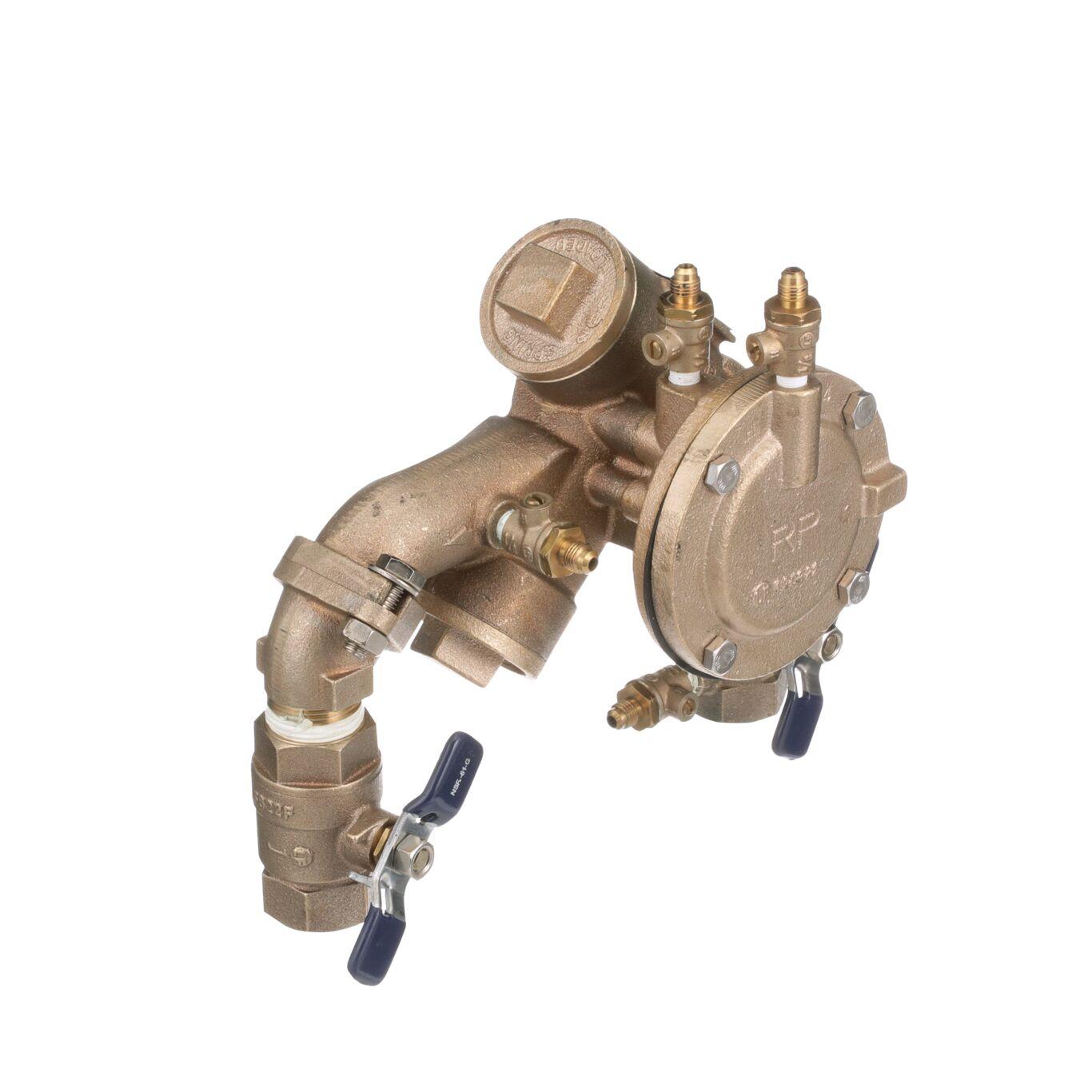

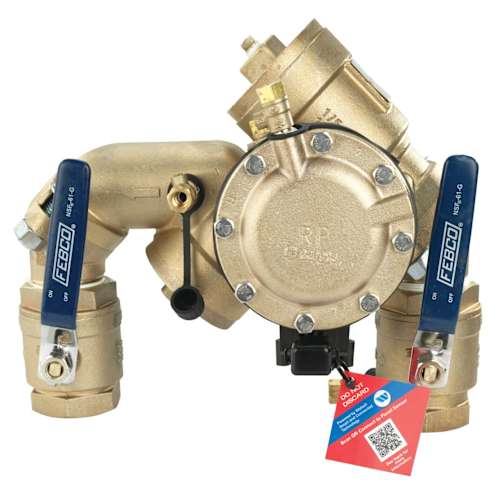

The FEBCO F683012 is a 1 inch lead free bronze N shaped reduced pressure zone backflow preventer assembly. It prevents the reverse flow of high hazard fluids from entering the potable water supply due to backsiphonage and backpressure. Features quarter turn ball valves, angle union connections, test cocks and spring loaded Y pattern check valves.

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Lead free construction

Product Highlights

This assembly is used in industrial plants, hospitals, irrigation systems, and other installations requiring maximum protection. Includes ball valves and flood sensing capability.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F683012

Technical Specifications

• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Material: Lead Free Bronze
• Body Pattern: Angle
• Brand: FEBCO
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Disc Material: Nitrile
• EAN: 643925581614
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 1 IN
• Inlet Connection Size-Metric: 25 MM
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: Does Not Apply To Product
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.10
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: Does Not Apply To Product
• Part Number: F683012
• Polymer Coating: No
• Pressure Operation: Does Not Apply To Product
• Protection Type: Backpressure
• Seat Material: Nitrile
• Series: LF825YA
• Strainer: Yes
• Technologies: Flood Detection
• Connection Size: 1 in.
• MFG Number: F683012
• UPC: 643925581614
• Series/Model: 825 Series
• Material: Bronze
• Reduced Pressure: Reduced Pressure
• Valve Mechanism: Ball
• Feature: Genuine OEM
• Valve Size: 1 Inch
• Model Number: 825
• Pipe Size: 1 in
• GTIN: 0643925581614
