Product Description

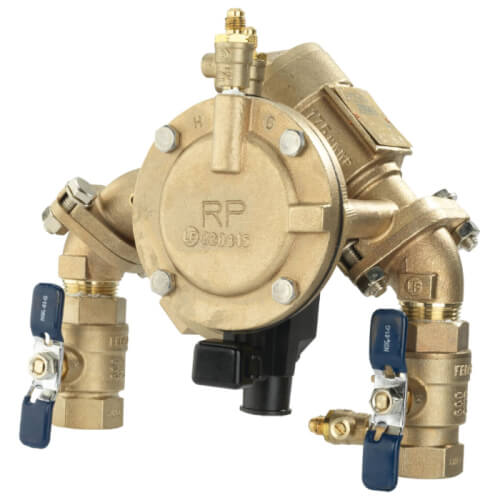

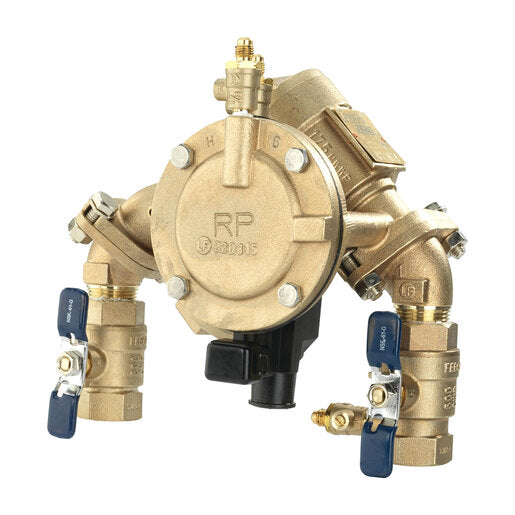

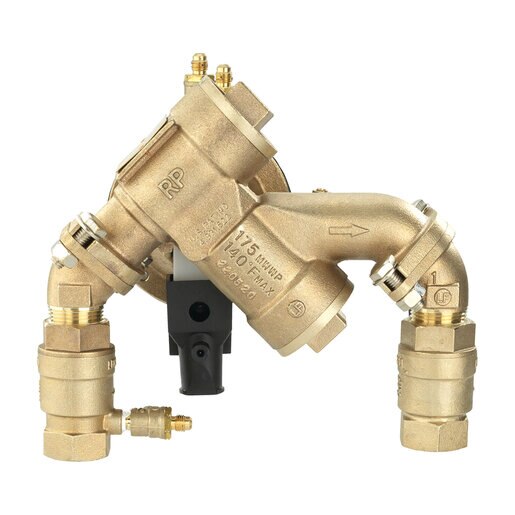

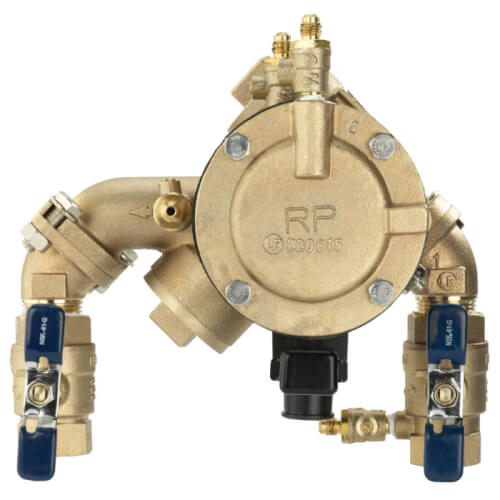

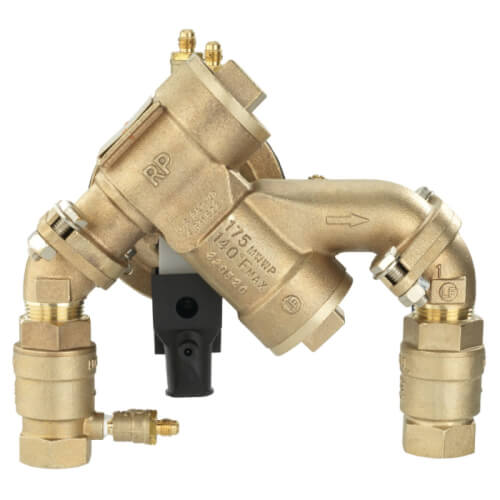

The FEBCO F683011 LF825YA-QT-RP-FS is a 3/4" lead free N shaped reduced pressure zone backflow preventer assembly. It prevents the reverse flow of high hazard fluids from entering the potable water supply due to backsiphonage or backpressure. The assembly consists of a lead free body, quarter turn ball valves, test cocks and spring loaded check valves.
- Features a flood sensor with SentryPlus Alert technology to detect continuous discharge from the relief valve
- Add-on sensor connection kit to extend flood monitoring on compatible assemblies
- Sensor Control Monitor integrates smart devices with BAS via RS?485 Modbus or the Nexa platform through Wi-Fi
Product Highlights
This backflow preventer is used in industrial plants, hospitals, irrigation systems, and other installations requiring maximum protection. It has a maximum pressure of 175 PSI and includes ball valves and flood sensing capability.
Product Information
Standard Information
-
Brand: FEBCO
-
Manufacturer Part Number: F683011
Technical Specifications
-
Body Material: Lead Free Bronze
-
Inlet Connection Size: 3/4"
-
Inlet Connection Type: Flanged Joint
-
Inlet Shutoff Valve Type: Quarter Turn Ball Valve
-
Maximum Temperature-Fahrenheit: 140
-
Maximum Working Pressure-PSI: 175
-
Outlet Connection Size: 3/4"
-
Outlet Connection Type: Flanged Joint
-
Outlet Shutoff Valve Type: Quarter Turn Ball Valve
-
Protection Type: Backpressure
-
Series: LF825YA
-
Body Pattern: Angle
-
Connection Type: Flanged x Flanged
-
Valve Type: Quarter Turn Ball Valve
-
Size: 3/4"
-
Material: Bronze
-
Lead Free: Yes
-
Max Pressure (PSI): 175
-
ArmorTek Technology: No
-
Backflow Preventer Type: Reduced Pressure Zone Assembly
-
Body Finish: Cast Copper Silicon Alloy
-
Brand: FEBCO
-
Bypass: No
-
Disc Material: Nitrile
-
Hazard Protection Level: Health Hazard
-
Hot And Harsh Water: No
-
Hydrant Connection: No
-
Inlet Connection Size-Metric: 19 MM
-
Minimum Temperature - Celsius: 0.00
-
Minimum Temperature-Fahrenheit: 32
-
Part Number: F683011
-
Polymer Coating: No
-
Seat Material: Nitrile
-
Strainer: Yes
-
Technologies: Flood Detection
-
Pressure Rating: 175 PSI
-
Connection Size: 3/4 in. x 3/4 in.
-
Item: Pressure Assembly
-
Type: Backflow
-
Includes: Ball Valves 3/4 in. & Flood Sensing Capability
-
Regulated: No
-
Brand Name: FEBCO
