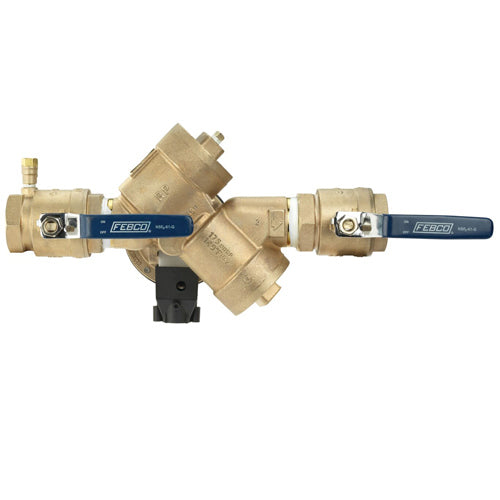

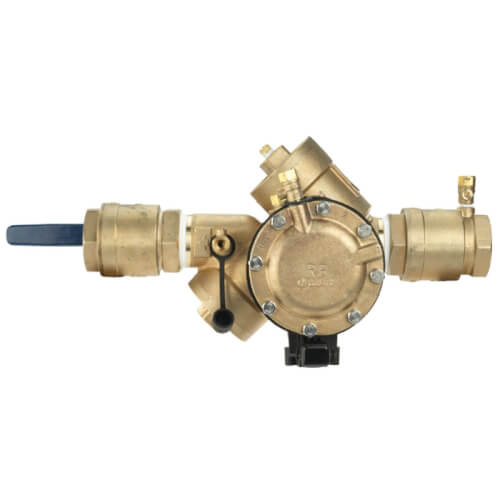

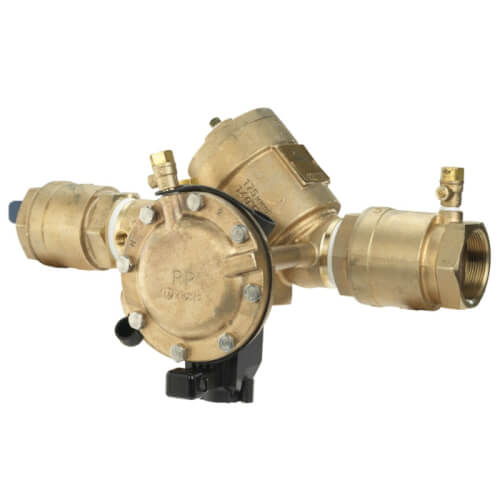

Febco F683010 lf825y-qt-rp-fs 2 inches Backflow Preventer

Product Description

The FEBCO F683010 is a 2" lead free Y pattern reduced pressure zone backflow preventer assembly. It prevents the reverse flow of high hazard fluids from entering the potable water supply due to backsiphonage or backpressure. Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges. Maximum working pressure: 175 psi.

• Lead Free
• Y-Pattern
• Female Threaded Connection

Product Highlights

Protects against high hazard fluids in water services for industrial plants, hospitals, morgues, chemical plants, irrigation systems, boiler feed, and water lines.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F683010

Technical Specifications

• Body Material: Lead Free Bronze
• Inlet Connection Size: 2"
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: FPT
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 2"
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Pressure Operation: Continuous
• Protection Type: Backpressure
• Series: LF825Y
• Valve Type: Quarter Turn Ball Valve
• Body Pattern: Y-Pattern
• Product Type: Backflow Preventer
• Size: 2"
• Lead Free: Yes
• Max Pressure (PSI): 175
• Water Temperature: 32 0F to 140 0F
• Hydrostatic Test Pressure: 350 PSI
• Connection Type: Female Threaded
• Maximum working pressure: 175psi (12.1 bar)
• Model: 2 LF825Y-QT RP
• Manufacturer: Febco
