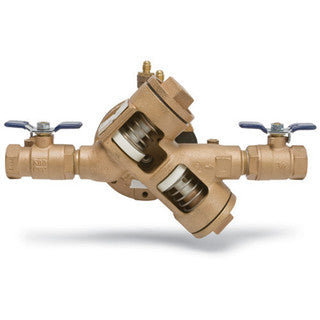

Febco F683007 Lf825y-Qt-Rp-Fs Reduced Pressure Zone Assembly 1 inches

Product Description

The FEBCO F683007 1" lead free Y pattern reduced pressure zone backflow preventer assembly prevents the reverse flow of high hazard fluids from entering into the potable water supply. It is used in water services to industrial plants, hospitals, chemical plants, irrigation systems, and other installations requiring maximum protection.

• 175 MAX PSI
• Female Threaded Connection
• Y-Pattern

Product Highlights

This assembly consists of a lead free body, threaded quarter turn ball valves and test cocks.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F683007

Technical Specifications

• Body Material: Lead Free Bronze
• Inlet Connection Size: 1"
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: FPT
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 1"
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Pressure Operation: Continuous
• Protection Type: Backpressure
• Series: LF825Y
• Valve Type: Quarter Turn Ball Valve
• Body Pattern: Y-Pattern
• Product Type: Backflow Preventer
• Size: 1"
• Lead Free: Yes
• Max Pressure (PSI): 175
• Water Temperature: 32 0F to 140 0F
• Hydrostatic Test Pressure: 350 PSI
• Connection Type: Female Threaded
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Cast Copper Silicon Alloy
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Disc Material: Nitrile
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size-Metric: 25 MM
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Maximum Working Pressure-BAR: 12.10
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Part Number: 0683007
• Polymer Coating: No
• Tradename: None
• Type: Kit
• Maximum working pressure: 175 psi (12.1 bar)
• Size (NPT): 1"
• Overall length: 12-3/4"
