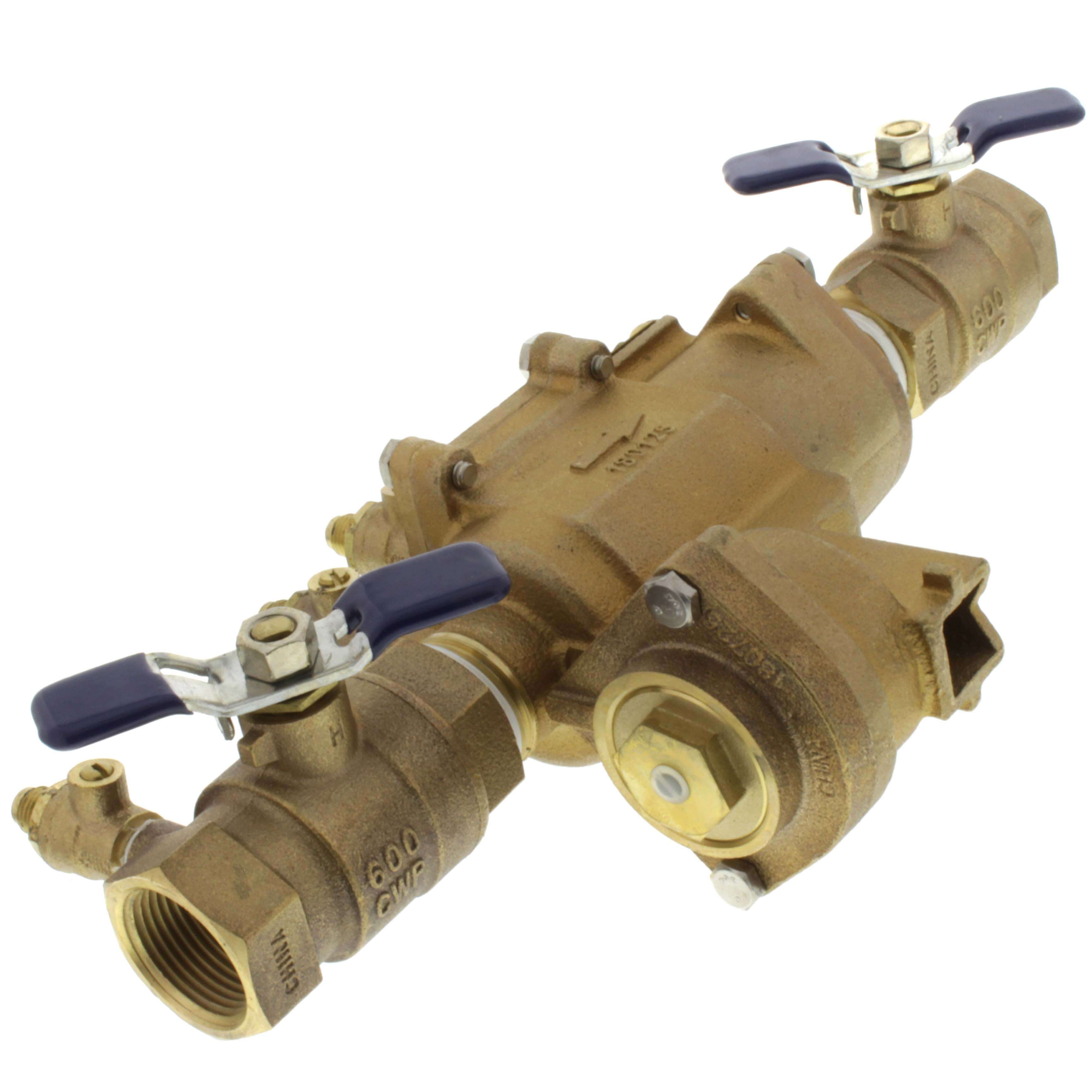

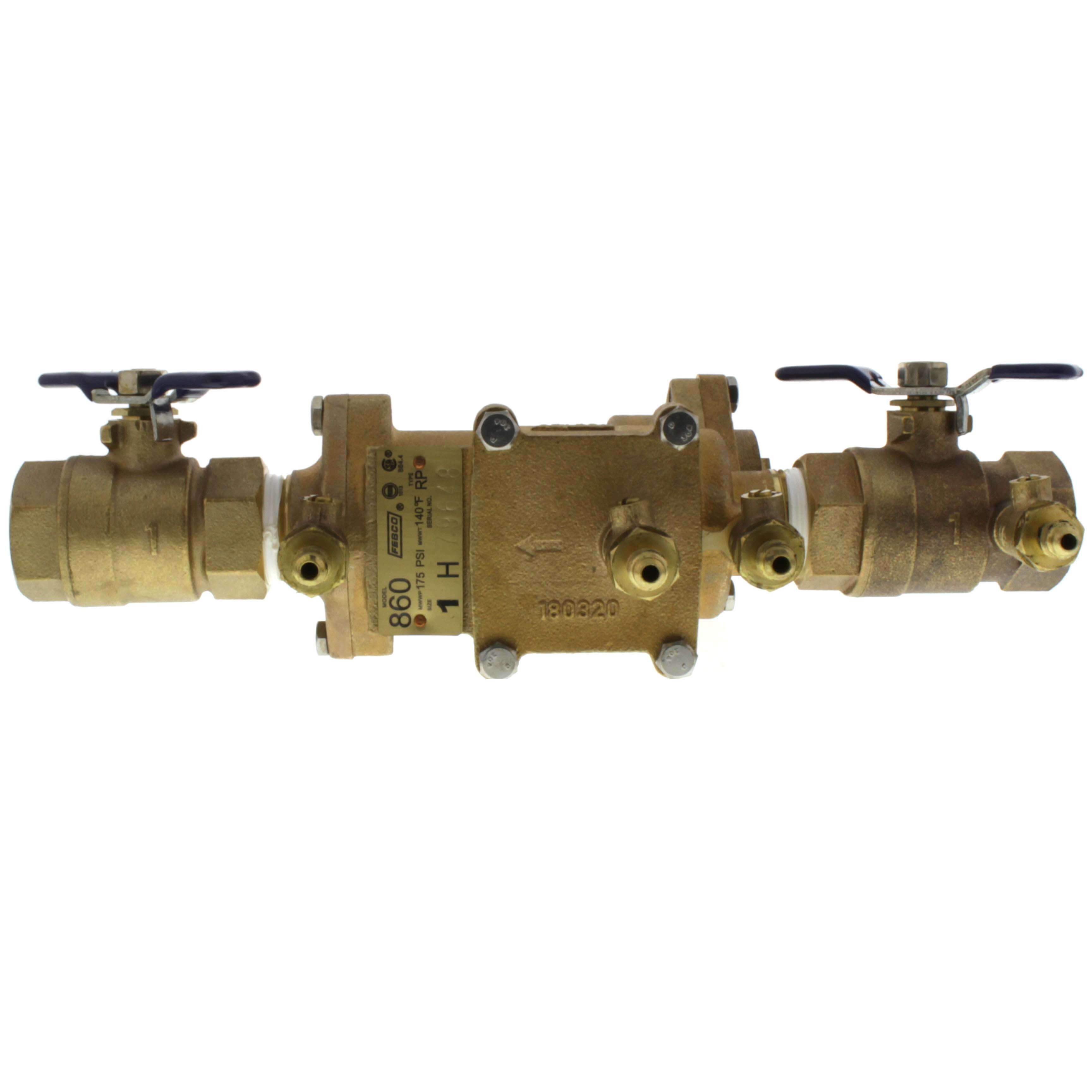

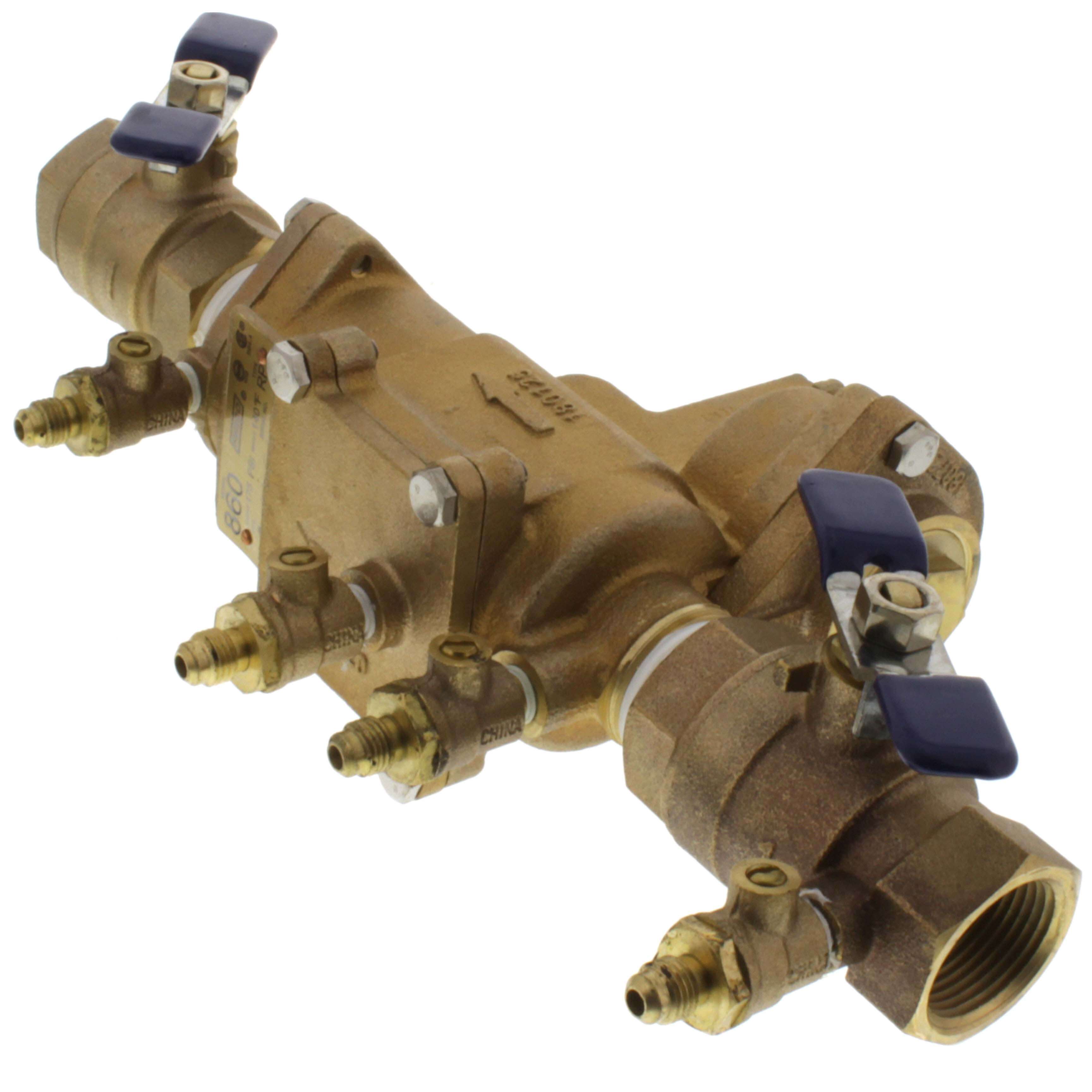

Febco 1313 860 Quarter Turn Shutoff Reduced Pressure Zone Assembly, 1 inches

Product Description

The FEBCO 1313 Series 860 reduced pressure zone assemblies are for use in health-hazard applications. Designed to protect drinking water supplies from dangerous cross-connections, it meets national plumbing codes for non-potable service applications such as irrigation, fireline, or industrial processing. Features a bronze body, threaded quarter turn ball valves and top mounted test cocks.

• Maximum working pressure 175Psi
• Hydrostatic test pressure 350 psi
• Temperature range 32 - 140 degrees

Product Highlights

Protects water supplies from contamination in non-potable applications. Includes quarter turn shutoff valves for easy maintenance.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: 1313

Technical Specifications

• Manufacturer: Febco
• Brand: Febco
• Model / MPN: 1313
• Size: 1"
• Material: Bronze
• Product Type: Backflow Preventer
• Connection Type: Female Threaded
• Water Temperature: 32°F to 140°F
• Max Pressure (PSI): 175
• Hydrostatic Test Pressure: 350 PSI
• Category: RPZ Assembly
• Temperature Range: 32 to 140 deg F
• Exterior Finish: Bronze
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Female Threaded
• Outlet Connection Type: Female Threaded
• Maximum Operating Pressure: 175 Pound per Square Inch
• Number of Ports: 2
• Specification Met: ASSE 1013, NSF 61, NSF 372
• UPC: 643925000672
• Part Number: 1313
• Item model number: 1313
• Item Package Quantity: 1
• Number of Handles: 2
• Measurement System: inch
• Included Components: 1313
• Batteries Included?: No
• Batteries Required?: No
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Body Finish: Rough Bronze
• Body Material: Bronze
• Body Pattern: Straight
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: Yes
• Disc Material: Silicone
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size-Metric: 25 MM
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: No
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.00
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 1 IN
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Plastic
• Series: 860 Small
• Strainer: No
• Technologies: Flood Detection
