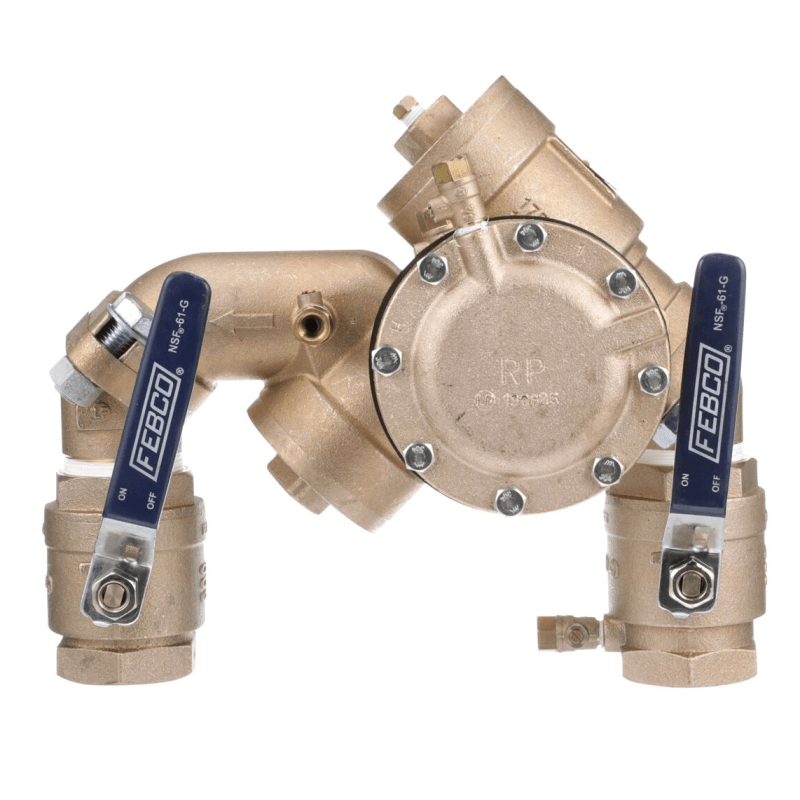

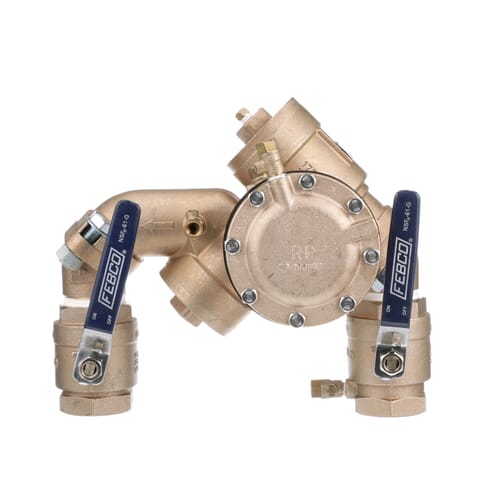

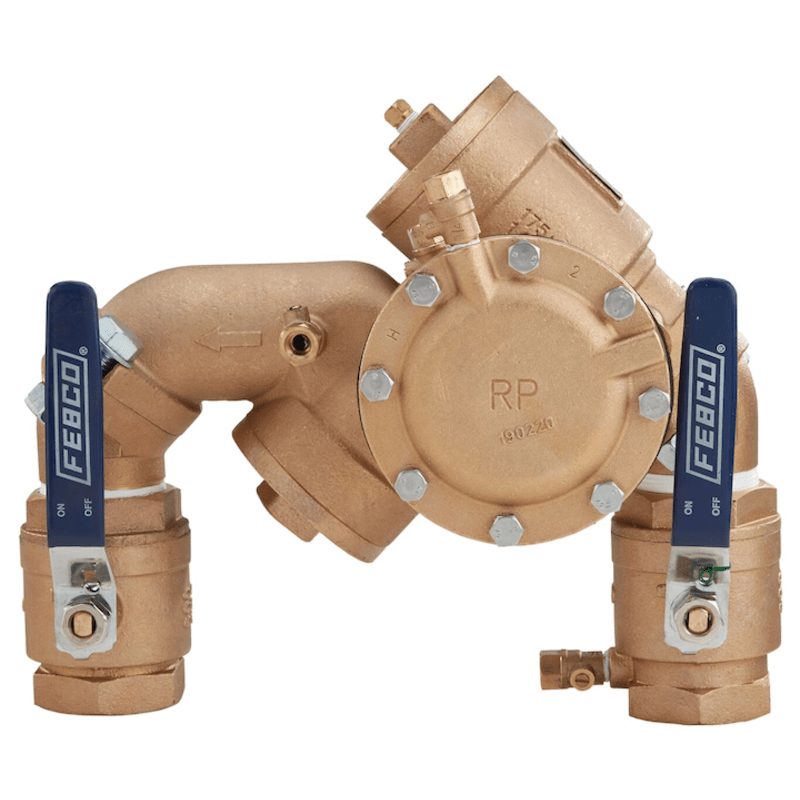

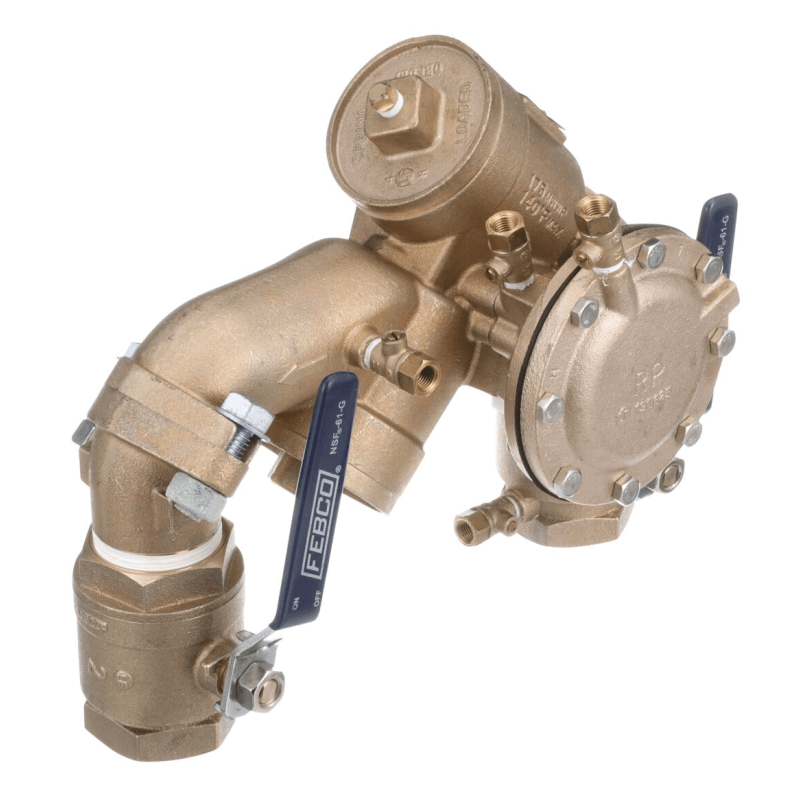

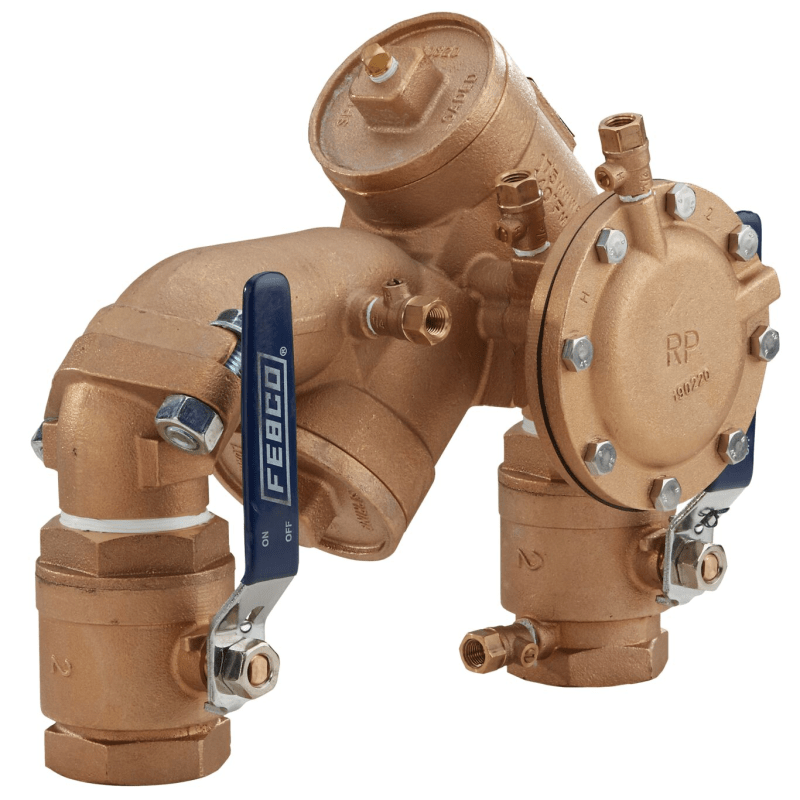

FEBCO 0683014 2-Inch Lead Free Reduced Pressure Zone Backflow Preventer

Product Description

The FEBCO 0683014 is a 2-inch lead-free reduced pressure zone backflow preventer. This assembly is meant to stop high hazard fluids from flowing back into the potable water system due to backsiphonage or backpressure.

• Lead-free bronze body for safety.
• Quarter-turn ball valves provide easy shutoff.
• Compact design for simple installations in tight spaces.

Product Highlights

This backflow preventer is widely used in applications where maximum protection against contamination is required.

Product Information

Standard Information

• Brand: FEBCO
• Part Number: 0683014

Technical Specifications

• Series: LF825YA
• Backflow Preventer Type: Reduced Pressure Zone Assembly
• Inlet Connection Size: 2 inches
• Outlet Connection Size: 2 inches
• Inlet Connection Type: Flanged Joint
• Outlet Connection Type: Flanged Joint
• Body Material: Lead Free Bronze
• Maximum Working Pressure: 175 PSI
• Maximum Temperature: 140 °F
• Minimum Temperature: 32 °F
• Strainer: Yes
