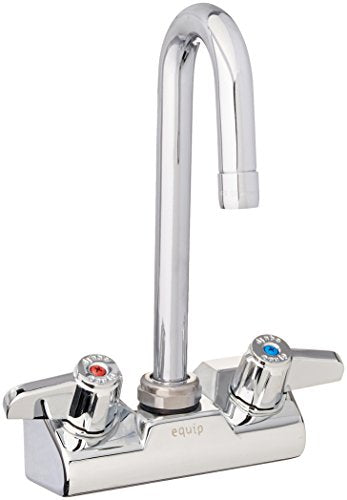

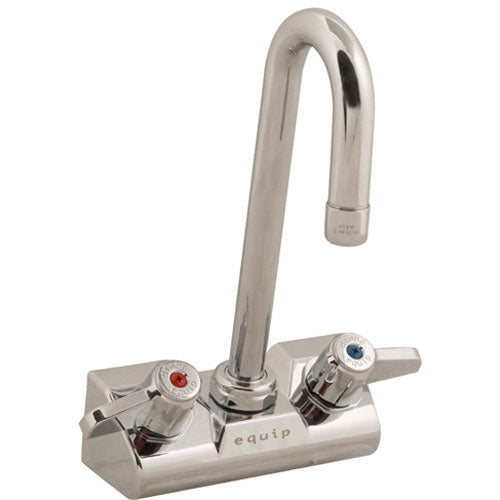

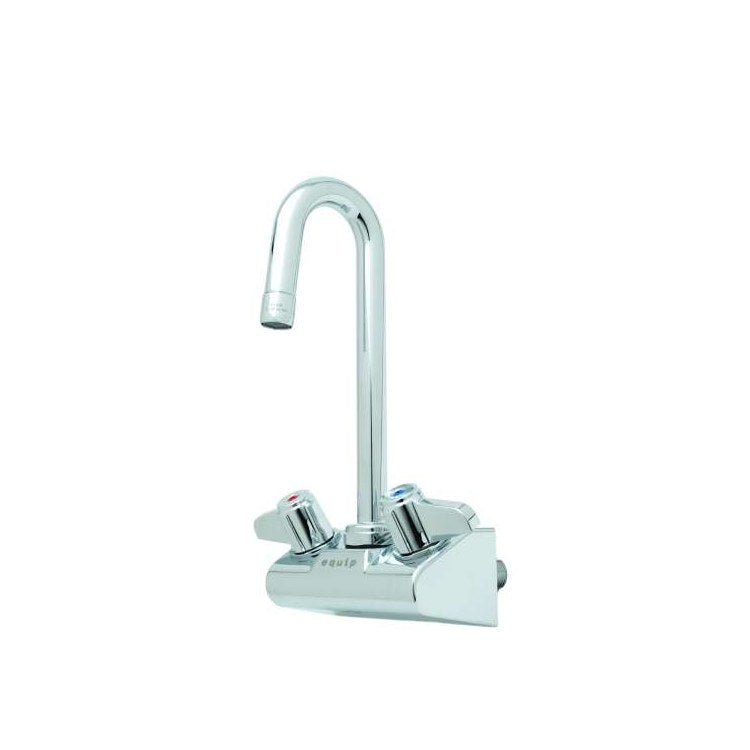

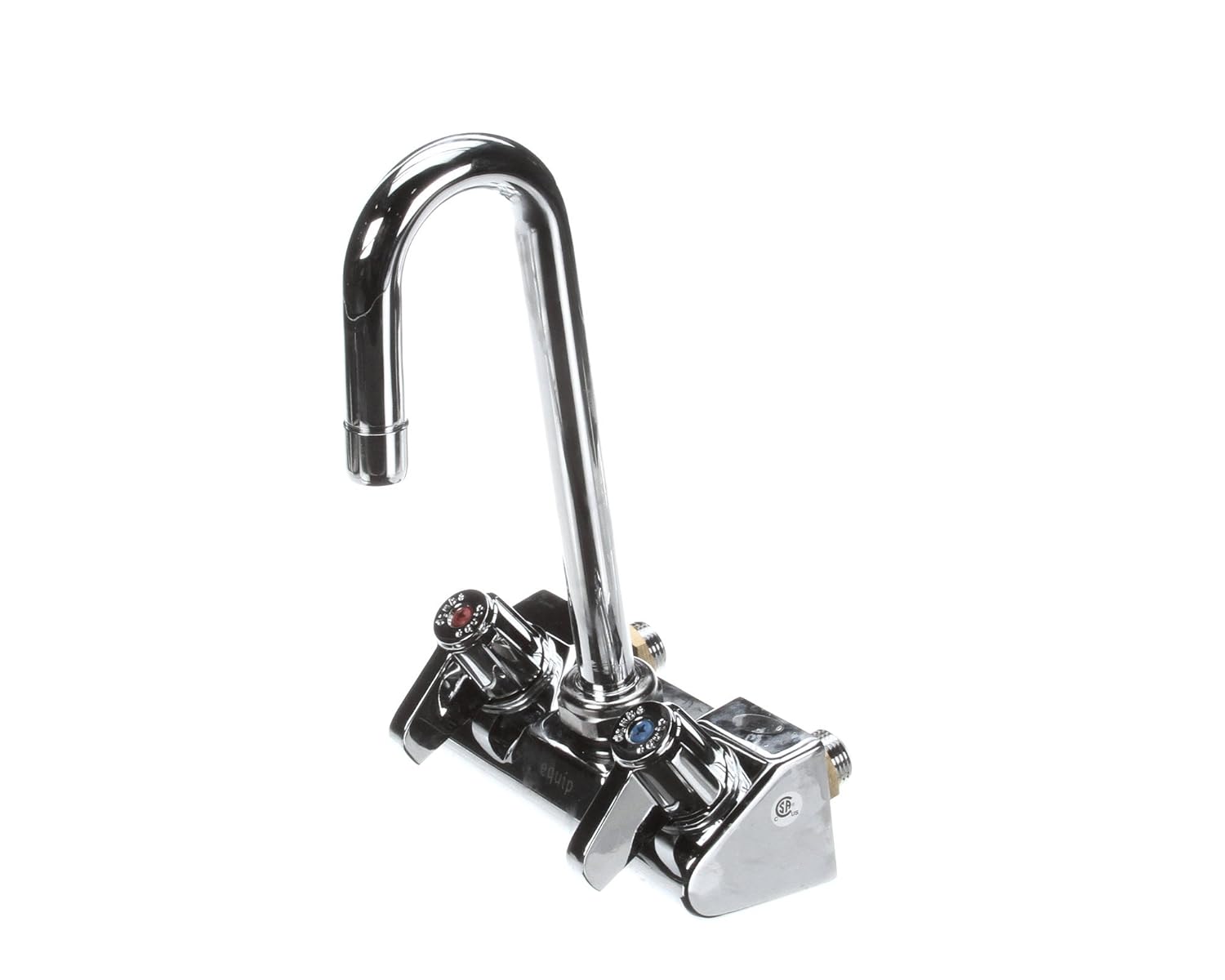

Product Description
The T&S Brass 5F-4WLX03 faucet is designed for wall mount applications and features a 4" wall mount with a 3" gooseneck. Constructed with chrome, this lead-free faucet includes a 3" gooseneck. Ideal for commercial kitchens and food service environments.
- Lead Free
- Wall Mount
- Chrome Finish
Product Highlights
This T&S Brass wall mount faucet is perfect for commercial use. It features a durable chrome finish and a lead-free design.
Product Information
Standard Information
-
Brand: T&S BRASS
-
Manufacturer Part Number: 5F-4WLX03
-
Country of Origin: China
Technical Specifications
-
OEM Part Number: 5F-4WLX03
-
OEM: T&S Brass
-
Inlet: 1/2" NPT
-
Lead Free: Yes
-
Centers: 4" | 102 mm
-
Type: 2-Handle, Wall Mount
-
Material: Chrome
-
Length: 5 5/8" | 143 mm | 9 1/4" Gooseneck | 235 mm
-
Width: 2 1/2" | 64 mm
-
Includes: 3" Gooseneck
-
AllPoints OEM Part Number: TSB5F-4WLX03
-
Brand: T&S Brass
-
Item Model Number: 5F-4WLX03
-
Manufacturer: T&S Brass
-
Model / MPN: 5F-4WLX03
-
Number of Items: 1.0
-
Product Type: FAUCET
-
Body Mount: Wall
-
Cartridge-Spindle: Ceramic
-
Handle: Lever
-
Nozzle: Swivel
-
Nozzle Flow: 2.2 GPM (8.33 L/min)
-
Nozzle Outlet Type: Aerator
-
Pressure Max: 125 psi (8.62 bar)
-
Pressure Min: 20 psi (1.38 bar)
-
Temperature Max: 140 F (60℃)
-
Temperature Min: 40 F (4.44℃)
-
Recommended Uses For Product: Kitchen
-
Mounting Type: Wall Mount
-
Finish Type: brass
-
Number of Handles: 2
-
Hole Count: 1
-
Special Feature: 360 Swivel
-
Installation Type: Single Hole
-
Maximum Flow Rate: 2.2 Gallons Per Minute
-
Model Name: 5F-4WLX03
-
Handle Material: Chrome Plated Metal
-
Spout Reach: 10 Inches
-
Part Number: 5F-4WLX03
-
Item model number: 5F-4WLX03
-
Item Package Quantity: 1
-
Special Features: 360 Swivel
-
Batteries Required?: No
-
Applicable Standard: Ada, Asme A112.18.1/Csa B125.1, Ansi A117.1, Nsf 61-9/372, Csa (Canada And Us)
-
Inlet Size: 1/2 Inch
-
Spout Type: Gooseneck
-
Body/Spout Material: Brass
-
Handle Type: Lever
-
Aerator Type: Swivel
-
Inlet Connection: Male Threaded
-
Faucet Hole Center: 4 Inch
-
Flow Rate: 2.2 Gpm At 60 Psi
-
Inclusions/Features: 1/4 Turn Ceramic Cartridge, Color Coded Screw
-
Additional Information: Lead-Free
-
Pressure Rating: 20 To 125 Psi
-
Temperature Rating: 40 To 140 Deg F
-
Part #: 5F-4WLX03
-
Part Description: Equip 4 Wall Mount Faucet w/ 3 Swivel Gooseneck, 2.2 gpm Aerator, Lever Handles
-
UPC: 671262722773
-
Low Lead Content: Yes
-
Mount Type (Wall or Deck): Wall
-
Cartridge Type: Quarter-Turn Cerama
-
Inlets: 1/2 NPT Male
-
Engineering Spec: 4 wall mount mixing faucet with polished chrome plated brass body, 3 equip swivel gooseneck, ceramic cartridges, equip lever handles and 1/2 NPT male inlets. Certified to ASME A112.18.1\CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI\ICC A117.1 requirements.
-
Brand/Trade Name: Equip
-
Assembled Dimensions - H (In): 9.5
-
Assembled Dimensions - W (In): 7.75
-
Assembled Dimensions - D (In): 3.9375
-
Primary Product Color: Silver
-
Product Finish: Chrome Plated
-
Warranty: One Year (Limited)
-
PERFORMANCE 1: Pressure: 20 - 125 psi
-
PERFORMANCE 2: Temperature: 40 F - 140F
-
PERFORMANCE 3: Flow Rate: 2.20 GPM @ 60 psi
