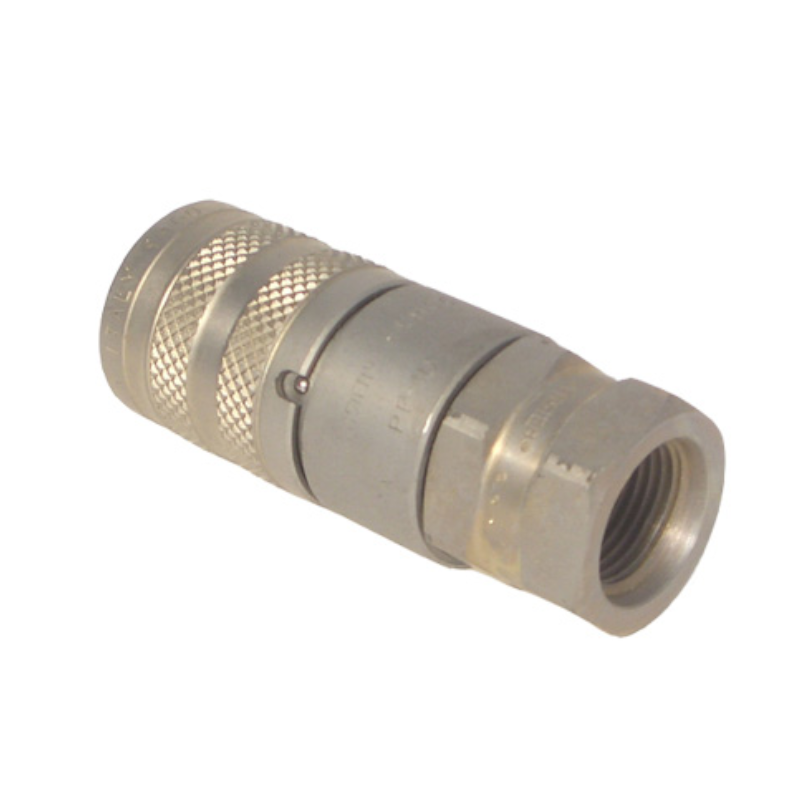

Faster FFH0834SAEF Flat Face Hydraulic Socket Steel Body Material 3/4 in ORB 1-1/16 – 12 SAE Female Thread

Product Description

The Faster FFH0834SAEF Flat Face Hydraulic Socket is designed for reliable performance in various hydraulic applications. With a steel body material, this socket provides durability and strength. It accommodates a three-quarter inch ORB and features a one and one-sixteenth to twelve SAE female thread. This product supports a maximum pressure of five thousand seventy-five psi, making it suitable for demanding environments.

• Steel body material for durability
• 1/2 inch body size for versatility
• Buna-N and polyurethane seals for effective performance

Product Highlights

This flat face hydraulic socket is ideal for applications requiring efficient fluid transfer and high pressure handling.

Product Information

Standard Information

• Brand: Faster
• Part Number: 01467399

Technical Specifications

• MPN: FFH0834SAEF
• Body Size: 1/2 inch
• Max Pressure: 5075 psi
• Body Material: Steel
• Female Thread: 1-1/16 – 12 SAE
• ORB Size: 3/4 inch
• Seal Material: Buna-N & Polyurethane
• Catalog Number: 00322
